Picture of PA VB 16 Unloader Valve 8,100 PSI

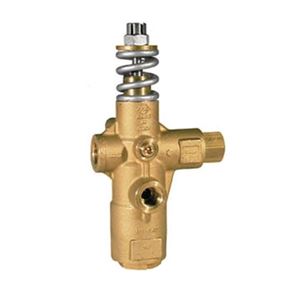

PA VB 16 Unloader Valve 8,100 PSI

SKU: 60.8000.00

Brand: P.A. Srl

$1,339.45

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


PA VB 16 Unloader Valve 8,100 PSI. Pressure regulating unloader valve with zero setting on delivery line. At gun closure the water flow is bypassed at low pressure maintaining the delivery line in low pressure


Featuring:
• Sturdy steel and brass construction
• By-pass control actuates at very low pressure values with reduced pressure in the delivery line when gun is shut
• By-pass control actuates at very low pressure values with reduced pressure in the delivery line when gun is shut
• Specially designed check valve prevents jamming and vibrations even in presence of sand and scales
• Safety valve built in the delivery side


Specifications:
• Unloader Valve (discharging)
• Rated Pressure: 7,250 PSI
• Permissible Pressure: 8,100 PSI
• Rated Temperature: 195° F
• Residual pressure at close down: 2,750 PSI
• Min. bypass re-start pressure: 1,600 PSI
• Rated Flow Rate: 21.0 GPM
• Material: Steel and brass
• Inlet Port: 1/2" F
• Discharge Port: 1/2” F
• Bypass Port: 1/2” F
• AR Part # AR40397
• Weight: 121.7 Oz



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of Next Day Air

Next Day Air

SKU: MC-015
Next Day Air
  Price: $0.00
Picture of PA VB 350S / YU5075KS Adjustable Unloader 5,600 PSI

PA VB 350S / YU5075KS Adjustable Unloader 5,600 PSI

SKU: 60.1750.00

PA VB350S / GP YU5075KS pressure regulating unloader valve. At gun shut off, the water flow is bypassed at reduced pressure


Features:
• Assembly equipped with a high pressure proof compensation
• Compact dimensions
• Sturdy steel and brass construction
• Fixing system for the max. and min. pressure setting
• Sst seat for check valve, replaceable
• Easy maintenance


Specifications:
• Rated Pressure: 5,100 PSI
• Permissible Pressure: 5,600 PSI
• Rated Flow Rate: 10.5 GPM
• Rated Temperature: 195° F
• Adjustable pressure
• Forged brass body
• Inlet Port: 3/8" MPT
• Outlet Port: 3/8” FPT
• Bypass Port: 1/2” FPT
• Gauge Port: 1/4” FPT
• Weight: 31.04 oz

  Price: $119.14
Picture of 7250PSI, 5.8GPM Annovi Reverberi Solid Shaft Pump, Nickel Plated

7250PSI, 5.8GPM Annovi Reverberi Solid Shaft Pump, Nickel Plated

SKU: SHP22.50HN

Annovi Reverberi / AR North America SHP22.50HN Triplex Plunger Pump. The SHP Series delivers up to7,250 PSI. Spinning at 1,450 RPM, this 24mm sold shafted pump series features a new high efficiency manifold design (patent pending). Inlet thread is 1/2” F, and discharge thread is 3/8”F.


Features:
• High efficiency nickel plated forged brass head & valve caps
• Oversized “SKF” bearings are tapered for maximum life and load disbursement
• Plungers are a special aluminum oxide blend, solid ceramic for long life


Specifications:
• Max. Volume: 5.8 GPM
• Max. Discharge Pressure: 7,250 PSI
• Max. Pump Speed: 1,450 RPM
• Shaft Diameter: 24mm Solid
• Max. Horsepower Requirements: 27.0 EBHP
• Max. Fluid Temp.: 140° F.
• Inlet Ports (2): 1/2" Female
• Outlet Ports (2): 3/8" Female
• Oil capacity: 32 oz
• SHP22.50N Discontinued, use SHP22.50HN
• SHP22.50N Discontinued, use SHP22.50HN
• Weight: 29.0 lb.

  Price: $1,170.79
Picture of RL84 - RL204 50" Stainless Steel Lance 1/2" 8100 PSI

RL84 - RL204 50" Stainless Steel Lance 1/2" 8100 PSI

SKU: 30.5000.92


Matching High Pressure Stainless Steel Lance & Holder for RL 84 & RL 204 Trigger Guns. Complete with adjustable handle


Specifications
• Length: 50”
• Permissible Pressure: 8,100 PSI
• Rated Pressure: 7,250 PSI
• Rated Flow Rate: 53.0 GPM
• Rated Temperature: 109° F
• Inlet: 1/2" Male
• Outlet: 1/4" Female NPT(nozzle holder)
• General Pump # Y30500092, Lance for YG7221/L51
• Weight: 76.4 oz

  Price: $319.29
