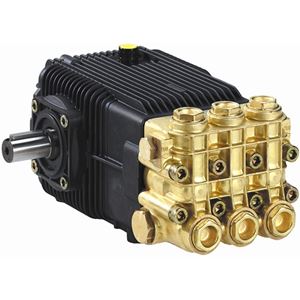

• Triplex Plunger Pump
• Solid Shaft for Belt or Gear Drive
• Max. Volume: 7.0 GPM
• Max. Discharge Pressure: 4,000 PSI
• Max. Pump Speed: 1750 RPM
• Shaft Diameter: 24mm Solid
• Max. Horsepower Requirements: 17.0 BHP
• Bearings are premium SKF tapered roller bearings that provide extra load support, smoother and lower crankcase running temperatures and overall extended pump life
• Max. Fluid Temp.: 160 degrees F.
• Inlet Ports (2): 3/4" BSP
• Discharge Ports (2): 3/8" BSP
• Drive Side: Standard right
• Forged brass head & valve covers
• Plungers are extra thick solid ceramic titanium impregnated for extended seal and pump life
• Weight: 34.0 lb.

Newly introduced Mecline VRT3 Unloader with out knob is an updated version of the Arrow Line VRT unloader with a stronger valve body with less porosity.

New Design Features:
• Interior Design – more efficient flow and operation
• Dual Locking Nuts – vibration resistant for setting maximum pressures
• New Spring Material – more resistant to fatigue, powder paint resists rusting
• Piston – large diameter, more strength and contact area for shifting alignment
• Discharge Nipple – sealing o-ring has been moved to the lower part of the thread, increases hydro strength and fitting strength
• Shutter Valve – hex design, less contact area for smooth shifting (prevents binding). larger size, longer life and more positive shifting

Featuring:
• Forged valve body – excellent strength
• Two inlet ports
• Two by-pass ports
• Ultra thick inlet and discharge ports - added strength
• Color coded spring – easy valve identification
• All ports are FNPT

Specifications:
• Spring Color: Black
• Does not included black adjustment knob
• Replaces AL607XA
• Maximum Pressure: 4,495 PSI
• Max. Volume: 8.0 GPM
• Adjustable pressure
• Brass valve body
• Max. Fluid Temp.: 194° F.
• Inlet Ports (2): 3/8" FNPT
• Discharge Ports (1): 3/8” FNPT
• Bypass Ports (2): 3/8” FNPT
• Weight: 27.9 oz

ProPulse® UBERFLEX™ 4,000 PSI 3/8" x 200' Blue Non-Marking Pressure Washer Hose. The most flexible & light weight in the industry! The latest technology from ProPulse® delivers a revolutionary upgrade from the standard commercial cold water pressure washer hose. UBERFLEX™ possesses the unique properties of superior resilience to permanent kinking and stability in length. It is also unmatched in abrasion, chemical, ozone and UV resistance. The UBERFLEX™ weighs over 10% less than the standard 1-wire rubber hose and the textured polyurethane cover offers reduced snagging and drag resistance - reducing user fatigue. UBERFLEX™ hoses are preferred by pressure washer manufacturers on their middle and high-end commercial cold-water equipment NOT FOR HOT WATER OR STEAM

UBERFLEX™ Hose on YouTube

Features:
• MADE IN THE USA: Every foot of ProPulse® UBERFLEX™ is designed, engineered and manufactured in the USA, assembled using imported and/or domestic end fittings
• PERMANENT KINK RESISTANCE: Let’s face it—all hoses can be kinked under the right conditions, but the unique UberFlex technology ensures that if the hose is pinched or kinked, it won’t stay that way permanently
• FLEXIBILITY: UberFlex feels more like an extension cord than a hose, and possesses the smallest bend radius in its class
• TRUE NON-MARKING: Adds to the overall ease of handling.
• TEXTURED COVER: The textured cover upgrade reduces tack and snag tendencies during handling, dragging and reeling
• UNMATCHED ABRASION, OZONE, UV AND CHEMICAL RESISTANCE: The proprietary high performance of the UberFlex cover is at least five times more abrasion resistant than traditional PVC covered hose

Hose Construction
• Inner Tube: Proprietary water and chemical resistant rubberized thermoplastic blend
• Reinforcement: Dual-ply high tenacity polyester with ProPulse® exclusive length stabilizing technology
• Cover: Abrasion resistant polyurethane, ProPulse exclusive low tack, low friction finish

Specifications:
• Hose: 3/8” ID x 200’ Long
• Working Pressure: 4,000 PSI
• Color: Blue
• Max. Water Temperature: 140° F.
• Ends: 3/8" Male NPT (1 solid & 1 swivel)
• Black bend restrictors on both ends
• Weight 31.70 lbs
