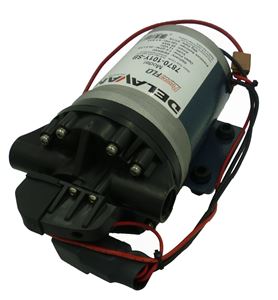

Picture of Delavan FB2 Diaphragm Pump 12V, 100PSI, 7.0GPM, DEM

Delavan FB2 Diaphragm Pump 12V, 100PSI, 7.0GPM, DEM

SKU: 7870-101Y-SB

Brand: Delavan Ag Pumps, Inc.

Only $167.96

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description

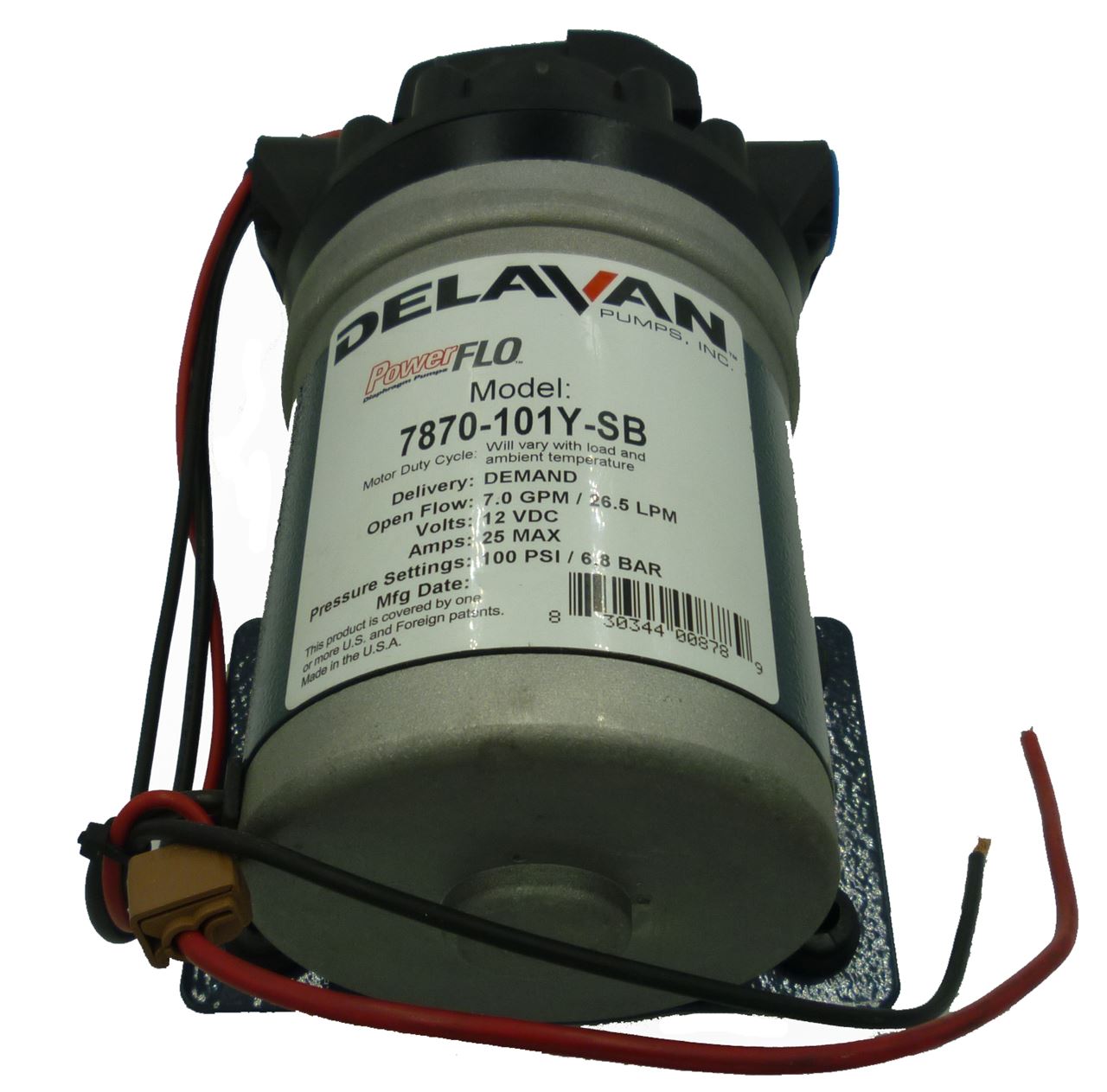

Delavan 7870-101Y-SB PowerFLO™ FB2 Series 7.0 GPM 100 PSI Diaphragm Pump with 1/2” FNPT Ports. Demand Switch – Operates only when liquid flow is required.


Features:
• The FB2 pumps are heavy duty 12V, 7 GPM pumps with Santoprene diaphragms and Santoprene valves
• These FB2 5 chamber pumps are smooth running, and can run dry, and self-prime
• The pumps feature popular threaded NPTF ports, along with a heavy duty demand system to turn the pump off when not in use, saving pump life and saving energy
• The FB2 pumps are known for one of the highest flow rates in the 12V market
• The FB2 pumps are used in difficult applications such as roof cleaning, and de-icing
• Certified to NSF/ANSI Standard 61 & 372
• Made in the USA
• 100% Factory tested
• 2 Year warranty from date of purchase


Motor:
• Type: 12 VDC permanent magnet, totally enclosed, non-ventilated
• Leads: 12 AWG, 12” long
• Max Amps (100 PSI): 25
• Duty Cycle: See Heat Rise graph


Materials of Construction:
• Motor Shell: Coated Steel
• Housing: Polypropylene Glass Filled
• Valves: Santoprene
• Diaphragm: Santoprene
• Fasteners: Stainless Steel


NSF/ANSI Certified:
• NSF/ANSI Standard 61 - Drinking Water System Components - Health Effects
• NSF/ANSI 372 and conforms with the lead content requirements for “lead free” plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act


Pump:
• Demand Switch – Operates only when liquid flow is required
• Type: 5-chamber positive displacement
• Capable of being run dry
• Excellent self-priming capability
• Liquid Temperature: 140° F Max.
• Priming Capabilities: 14’
• Max. Flow: 7.0 GPM
• Pressure Shut-Off: 100 PSI
• Inlet/Outlet Ports: 1/2” FNPT
• Packaging: Small box
• Weight: 9.75 lbs
