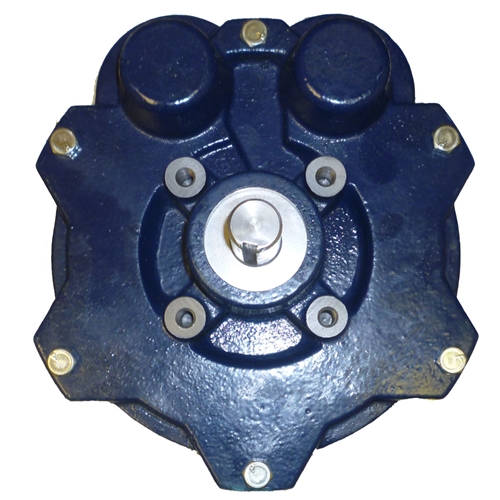

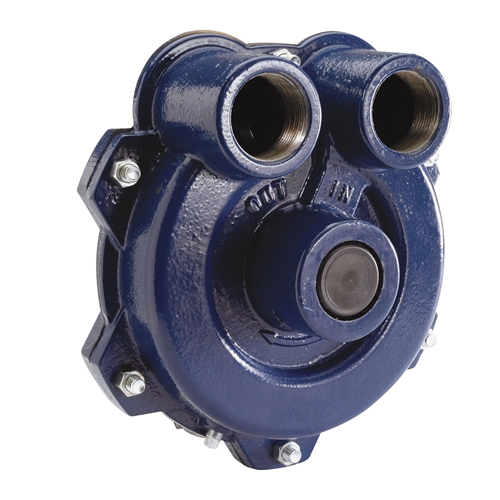

Picture of Delavan Turbo 90 PTO-Driven Turbine Pump with Face Seal

Delavan Turbo 90 PTO-Driven Turbine Pump with Face Seal

SKU: 26556-11

Brand: Delavan Fluid Power

$441.33

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Delavan 26556-11 Turbo 90 PTO-Driven Turbine Pump with Face Seal. PTO-Driven High Capacity T-90 Turbine Pumps for Smooth Operation and Maximum Agitation. Delivering dependable operation and long pump life for applications including high-volume liquid transfer, handling fluid containing suspended materials, and high-volume spraying


Features:
• The Turbo™ 90 is designed to operate directly from a 1,000 RPM PTO shaft without attachments.
• Peak performance at slower rotation means longer life of the seals.
• The Turbo 90 can pump suspended materials without accumulation unlike a conventional turbine pump. This is possible because of Pressure Relief Passages from the seal cavities to the inlet port. The suspension circulates, and therefore is cleaned from the inner cavities.
• It can be used for large quantity liquid transfer, from truck to tanks, for instance. It is well suited to high volume sprayer pumping applications
• The impeller is made of low moisture absorption, corrosion-resist, engineering grade thermoplastic. It has been designed to increase pump life and smooth operation because of less rotation weight.
• Face seals designed for severe service (such as abrasives). Face seals feature hard, wear-resistant phenolic rings pressing against ceramic seats
• Bearings are isolated by drain cavities.
• 1-1/2” inlet and outlet ports permit unrestricted high volume flow.
• Because of the high capacity of the T- 90, sufficient bypass flow is available to maintain maximum agitation.
• Shaft is made of stainless steel and has a 15/16” diameter with 1/4” keyway


Specifications:
• Pump Type: Turbine
• Seals: Face seal
• Max Recommended Pressure: 100 PSIG
• Max Recommended Temperature: 120° F
• Max Recommended PTO Speed: 1,250 RPM
• Shaft Diameter: 15⁄16“ with 1⁄4“ keyway
• Inlet/Outlet Ports: 1-1⁄2“ NPT (female)
• Weight: 25.35 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
