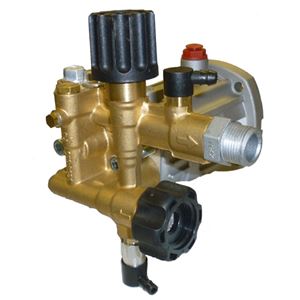

Picture of 3000PSI, 3.0GPM (22mm Outlet) Annovi Reverberi Direct Drive Pump

3000PSI, 3.0GPM (22mm Outlet) Annovi Reverberi Direct Drive Pump

SKU: RXV3G30D-EZ

Brand: Annovi Reverberi - AR North America

Only $116.13

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


This Annovi Reverberi / AR North America RXV3G30D-EZ (22mm Outlet) horizontal plunger pump. 3.0 GPM at 3,000 PSI, spins at 3,400 RPM in a direct drive system coupled with a gasoline engine. The matching flange provides convenient connection to most 3/4” shaft 4 - 7 HP engines. The hollow shafted pump includes a built-in pressure control valve, and chemical injection system. Comes with Thermal Relief Valve and Easy Start Valve (EZ)


Features:
• 3-Piston alternating volumetric pumps for use on cleaning units
• Can be directly coupled to gas engine flange
• Fits most homeowner type horizontal pressure washers
• Horizontal Mount with Gas Flange 3-6.5 HP (2-9/16 center to center)
• Pump body in die-cast aluminum alloy
• Pistons driven by swash plate mechanism
• Two bearing systems, to support the pump shaft and pistons
• Pistons in hardened and tempered steel
• Pump head in pressed brass
• Double gasket sealing system
• Intake valves fitted above the pistons for greater efficiency
• Integral regulating valve
• Integral detergent suction system


Specifications:
• Max. Volume: 3.0 GPM
• Max. Discharge Pressure: 3,000 PSI
• Max. Pump Speed: 3,400 RPM
• Shaft Diameter: 3/4” Hollow
• Maximum Horsepower Requirements: 8.2 GHP
• Inlet Port: 3/4" GHA (garden hose)
• Outlet Port: 22mm-14 (Twist Connect)
• Weight: 8.8 lb.
