Valley Industries Series 40 Dual Scale Industrial 400 PSI Bottom Mount 4" SS Pressure Gauge. These gauges are designed for use with any medium not corrosive to brass or bronze. Liquid-filled gauges are recommended for reducing shock caused by pressure fluctuations or vibration

Features:
• Dial Range (PSI): 0 – 400
• Dial Range (BAR): 0 – 28
• Casing: 4" Diameter
• Movement: Brass
• Bourdon Tube: C-Shaped in copper alloy
• Pointer: Black enameled aluminum
• Dial: White aluminum
• Window: Polycarbonate – temperature compensating
• Case Material: 304 Stainless steel
• Mounting: Bottom
• Connection Material: Brass
• Connection Size: 1/4" MNPT
• Fill Material: Glycerin (liquid)
• Wetted Parts: Copper alloy
• Weight: 0.75 lbs.



Valley Industries Series 41 Single Scale OEM 400 PSI Bottom Mount 2-1/2" SS Pressure Gauge. These gauges are designed for use with any medium not corrosive to brass or bronze. Liquid-filled gauges are recommended for reducing shock caused by pressure fluctuations or vibration

Features:
• Dial Range: 0 – 400 PSI
• Casing: 2 1/2" Diameter
• Movement: Brass
• Bourdon Tube: C-Shaped in copper alloy
• Pointer: Black enameled aluminum
• Dial: White aluminum
• Window: Acrylic
• Case Material: 304 Stainless steel
• Mounting: Bottom
• Connection Material: Brass
• Connection Size: 1/4" MNPT
• ASME/ANSI B40.1 Grade B (3-2-3%)
• Fill Material: Glycerin (liquid)
• Wetted Parts: Copper alloy
• Weight: 0.50 lbs.

Fimco # 5167034

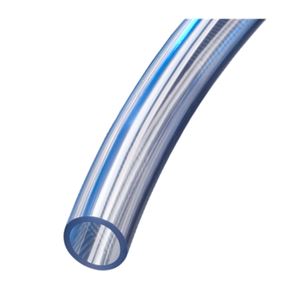

Kuri Tec® K050 Utility grade non-toxic clear food grade PVC tubing for general use applications

Features:
• FDA compliant, non-toxic PVC compound
• High gloss crystal clear appearance with glass smooth interior to reduce sediment buildup
• Self-extinguishing
• Compound hardness 73±3 Shore "A"


Applications:
• Air conditioning Drainage
• Refrigeration Drainage
• Airlines
• Printing press Equipment
• High efficiency furnace drainage
• Transfer of weak chemicals and acids


Specifications:
• Service Temp. Range: +25º F to 150º F
• Nominal ID: 3/8”
• Nominal OD: 1/2”
• Wall Thickness: 1/16”
• Color: Clear
• Working Pressure @ 70º F: 45 PSI
• Length: 100’
• Weight: 4.7 lb.



Kuri Tec® K4131 Series 1/2” x 400’ spray hose is used in agricultural, lawn, nursery, & vineyard spraying applications

Construction:
• Tube: Yellow PVC
• Reinforcement: High tensile strength yarn
• Spiral Reinforcement: 1 Pass construction
• Cover: Ribbed PVC

Features:
• Ribbed cover for reduced drag and increased flexibility
• Pin-pricked cover vents vapor… helps prevent ballooning
• Light weight – easily coiled after use
• Chemical resistance of quality PVC
• Silicone-free

Specifications:
• Service Temp. Range: +25º F to 150º F
• Nominal ID: 1/2”
• Nominal OD: 0.790”
• Length: 400’
• Color: Yellow
• Working Pressure @ 70º F: 600 PSI
• Weight: 72.0 lbs.
