Picture of Everflo Diaphragm Pump 12 V, 70 PSI, 2.2 GPM

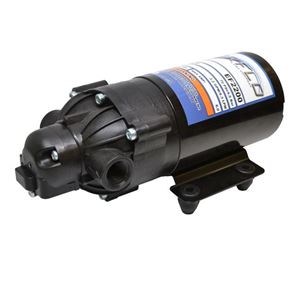

Everflo Diaphragm Pump 12 V, 70 PSI, 2.2 GPM

SKU: EF2200-BOX

Brand: Everflo

Only $55.54

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


Everflo EF2200 Diaphragm Pump. Demand Switch – Operates only when liquid flow is required. Replacement for agricultural sprayers and fluid transfer applications.


Features:
• Polypropylene pump housing and valve plate
• Viton® Valves – Santoprene® Diaphragm
• Zinc Plated Steel fasteners
• Painted Steel 3” Motor Shelll
• Honeywell™ Micro Switch
• Round-Up® Ready
• Self Priming up to 8’ above fluid level


Specifications:
• Demand Switch – Operates only when liquid flow is required
• Max. Flow: 2.2 GPM
• Max. Pressure: 70 PSI
• Max. Fluid Temperature: 140° F
• Voltage: 12 VDC
• Max. Amps: 8.0
• Inlet/Outlet Ports: 3/8” Female NPT
• Inline fuse protection
• Wire leads with 2-pin connector
• Owner’s manual and colored box
• CE Approved*
• Pump Dry Weight: 4.8 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
