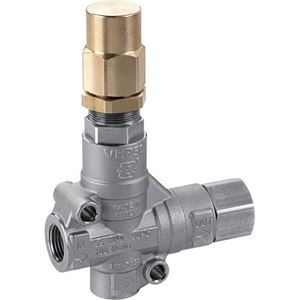

Picture of VHP51 Adjustable Unloader 8,000 PSI

VHP51 Adjustable Unloader 8,000 PSI

SKU: 4072000122

Brand: Mecline

Only $189.24

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


Mecline VHP51 Unloader Valve 8,000 PSI. With working pressures up to 7,250 PSI and flows up to 26.4 GPM, the VHP51 can continuously handle water up to 160° F (up to 194° F for short periods)


Featuring:
• Positioning of all o-rings before the threads, giving greater mechanical strength
• Ease of maintenance: the whole regulating unit can be totally removed from on top
• The locking ring nut has a set screw for a safer pressure setting
• A nickel-plated brass body, granting greater resistance to corrosion and overall wear
• All internal parts in stainless steel, including the outlet fitting and piston cylinder
• Internal safety lock to avoid overpressure
• Suitable for wall mount


Specifications:
• Rated Pressure: 7,250 PSI
• Permissible Pressure: 8,000 PSI
• Rated Temperature: 194° F
• Rated Flow Rate: 26.4 GPM
• Material: Chemically nickel-plated brass body. Internal parts in Stainless steel including fittings
• Inlet Port: 1/2" F
• Outlet Port: 1/2” F
• Bypass Port: 1/2”
• Replaces VHP50-500
• Weight: 40.57 Oz
