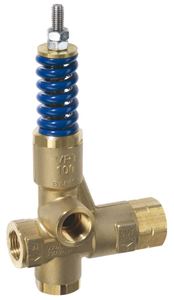

Picture of VRT100 High Flow Unloader 5,075 PSI (Blue) No Knob

VRT100 High Flow Unloader 5,075 PSI (Blue) No Knob

SKU: 4072000036

Brand: Mecline

$131.40

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Mecline VRT100 High Flow Unloader Valve 5,075 PSI. With working pressures up to 4,640 PSI and flows up to 26.4 GPM


Features:
• Positioning of all o-ring seals before the threads, for greater mechanical strength
• Shutter axially guided for greater stability at high flow rates
• Stainless steel seat and shutter designed by fluid dynamics study to eliminate instabilities and turbulences with great benefit in terms of long life
• Stem with internal anti-rotation system, for greater life
• Stem o-ring seal is placed on the connecting stem guide to allow the stroke of the stainless steel stem on o-ring, increasing the life
• Hexagonal check valve for a better smoothness


Specifications:
• Spring Color: Blue
• Rated Pressure: 4,640 PSI
• Permissible Pressure: 5,075 PSI
• Rated Temperature: 194° F
• Rated Flow Rate: 26.4 GPM
• Material: Brass body & fittings
• Inlet Port: 1/2" F
• Outlet Port: 1/2” F
• Bypass Port: 1/2” F
• Weight: 39.33 Oz

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
