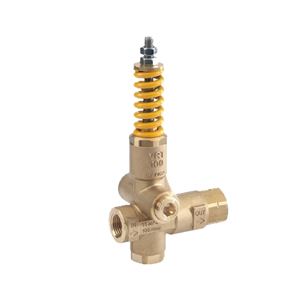

Mecline VRT100-190D High Flow Unloader Valve 2,760 PSI with Dual By-Pass. Working pressures up to 2,465 PSI and flows up to 26.4 GPM

Features:
• Positioning of all o-ring seals before the threads, for greater mechanical strength
• Shutter axially guided for greater stability at high flow rates
• Stainless steel seat and shutter designed by fluid dynamics study to eliminate instabilities and turbulences with great benefit in terms of long life
• Stem with internal anti-rotation system, for greater life
• Stem o-ring seal is placed on the connecting stem guide to allow the stroke of the stainless steel stem on o-ring, increasing the life
• Hexagonal check valve for a better smoothness

Specifications:
• Spring Color: Yellow
• Rated Pressure: 2,465 PSI
• Permissible Pressure: 2,760 PSI
• Rated Temperature: 194° F
• Rated Flow Rate: 26.4 GPM
• Material: Brass body & fittings
• Inlet Port: 1/2" F
• Outlet Port: 1/2” F
• Bypass Ports (2): 1/2” F
• Weight: 41.59 Oz
