PA PR16 / General Pump YPRESSWITCH1535 5,000 PSI Pressure Switch with 360 PSI (Red) activation and 3/8" BSP-M stainless steel inlet. Electro-mechanical device, which, upon reaching a pre-set pressure (360 PSI) , opens or closes an electrical control contact

Specifications
• Activation (Red) PSI: 360
• Max. Voltage: 250
• Permissible Pressure: 5,000 PSI
• Rated Temp: 165° F
• Max. Curr. Strength: 16 (A) – resistive load - 6 (A) – inductive load
• Electrical insulation: 55 IP
• Connection Material: Stainless Steel
• Cable Length: 47" (1200 mm)
• Electric Wire: 3 x 1 mm
• Inlet: 3/8" Bsp M
• Weight: 6.84 oz.

Features:
• Damping of the pressure spikes
• Total flow discharge

Note:
• Becomes a safety device only after set-up adjustment done by installer

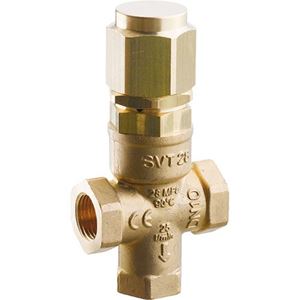

Specifications:
• Rated Pressure: 3,625 PSI
• Permissible Pressure: 4,060 PSI
• Minimum Adjustable Pressure: 362 PSI
• Rated Temperature: 194° F
• Rated Flow Rate: 6.6 GPM
• Material: Brass
• Inlet Ports (2): 3/8" F
• Outlet Port: 3/8” F
• Weight: 13.64 Oz

Features
• Designed for heavy duty misting applications
• Latest in design and technology
• New crankcase style
• High strength forged brass manifold for long term use
• NEW ceramic plungers, thicker wall to help prevent thermal shock
• Stainless steel valves
• Side mount valve seat o-rings
• High quality high pressure seals
• NEW low pressure seal with built in scraper
• Two piece piston guides
• NEW connecting rod with 12% more load surface
• Large side cover sight glass
• Oversized bearings
• Rear cover oil drain
• Forged, precision ground crankshaft

Specifications
• Max. Volume: 0.5 GPM
• Max. Discharge Pressure: 1,500 PSI
• Max. Pump Speed: 1,750 RPM
• Shaft Diameter: 5/8” Hollow
• Max. Horsepower Requirements: 0.5 EBHP
• Max. Fluid Temp.: 140° F.
• Inlet Ports (2): 1/2" Female
• Outlet Ports (2): 3/8" Female
• Oil capacity: 9.81 oz
• Weight: 11.0 lb.
