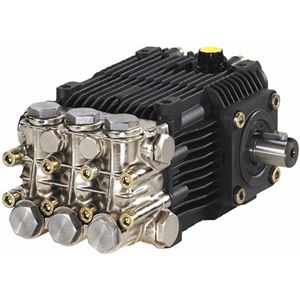

Picture of 2200PSI, 6.34GPM Annovi Reverberi Solid Shaft Pump

2200PSI, 6.34GPM Annovi Reverberi Solid Shaft Pump

SKU: RK24.15HN

Brand: Annovi Reverberi - AR North America

Only $422.50

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


Annovi Reverberi / AR North America RK N Version Pump with 24mm solid shaft and 1,450 RPM. Used in a wide variety of high pressure washing applications. These pumps are designed for gearbox , belt drive, or coupling drive systems driven by electric motor or gasoline driven systems, gasoline engine driven systems

Features
• They are constructed of die-cast bodies and feature a nickel plated forged brass head
• Internal components include special thick solid ceramic plungers for long life and durability
• Precision cast cooling fins are anodized for maximum heat dissipation
• Oversized tapered roller bearings and the precision supports assure proper shaft alignment and maximum life
• Valve cages of special designed Ultra-Form provide positive seating and extended life
• One-piece connecting rods are oversized for strength and load disbursement

Specifications
• Max. Volume: 6.34 GPM
• Max. Discharge Pressure: 2,200 PSI
• Max. Pump Speed: 1,450 RPM
• Shaft Diameter: 24mm Solid
• Maximum Horsepower Requirements: 11.0 EBHP
• Max. Fluid Temp.: 140º F.
• Inlet Ports (2): 1/2" FPT
• Discharge Ports (2): 3/8" FPT
• Drive Side: Standard right
• Weight: 20.0 lb.
