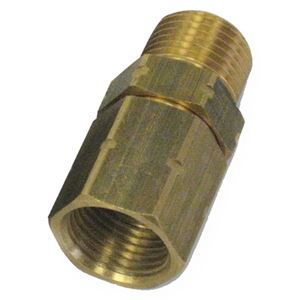

Picture of Suttner ST-340 High Flow Swivel 42 GPM 3,200 PSI 1/2 F x  1/2 M

Suttner ST-340 High Flow Swivel 42 GPM 3,200 PSI 1/2 F x 1/2 M

SKU: 200340515

Brand: Suttner America

Only $22.77

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


Suttner ST-340 High Flow Brass Swivel 1/2 M x 1/2 F 42 GPM 3,200 PSI. 1/2” Live swivel is perfect for connecting to trigger, booms, etc.


Features
• High Quality, German engineered components
• Brass material
• Double PTFE slide rings for easy movement
• Bearing material: PTFE


Specifications
• Max Pressure: 3,200 PSI
• Max Flow: 42 GPM
• Max Temp: 212° F.
• Inlet: 1/2" Male NPT
• Outlet: 1/2" Female NPT
• RPM: 30
• Weight: 0.25 lb

Customers who bought this item also bought

1/2" Suttner #20.0 ST-49 Milling Sewer Nozzle 1 Centric 3 Front 6 Rear 5,076 PSI

SKU: 649010446200


1/2” Suttner #20.0 ST-49 Milling Sewer Cleaning Nozzle. With 1 Centric, 3 Front and 6 Rear jets and rated to 5,076 PSI


Features:
• High Quality, German engineered components
• With its 4 very strong concentrated forward jets and the sharp cutting edges the milling type nozzles will tear through almost any kind of blockage
• The sharp edges cut, break and penetrate through every kind of blockage
• Made out of wear-resistant, hardened stainless steel
• 1 Centric front jet with nozzle insert
• 3 Lateral front jets with nozzle inserts
• 6 Rear jets with nozzle inserts
• Nozzle is equipped with replaceable hardened stainless steel nozzle inserts
• Due to this feature the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer


Applications:
• Penetration of completely clogged pipes
• Opening of root masses
• Opening of frozen pipelines
• Hydraulic thrust boring flushing operations


Specifications:
• Nozzle Size: # 20.0
• Material: Stainless steel
• Maximum Pressure: 5,076 PSI
• Inlet: 1/2” Female
• Outside Diameter (O.D.): 1.23”
• Weight: 5.7 oz



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Price: $116.06

Suttner ST-340 SS High Flow Swivel 42 GPM 3,200 PSI 1/2 F x 1/2 M

SKU: 200340025

Suttner ST-340 High Flow Stainless Steel Swivel 1/2 M x 1/2 F 42 GPM 3,200 PSI. 1/2” Live swivel is perfect for connecting to trigger, booms, etc.


Features
• High Quality, German engineered components
• Stainless steel material
• Double PTFE slide rings for easy movement
• Bearing material: PTFE


Specifications
• Max Pressure: 3,200 PSI
• Max Flow: 42 GPM
• Max Temp: 212° F.
• Inlet: 1/2" Male NPT
• Outlet: 1/2" Female NPT
• RPM: 30
• Weight: 0.25 lb

Price: $47.87
