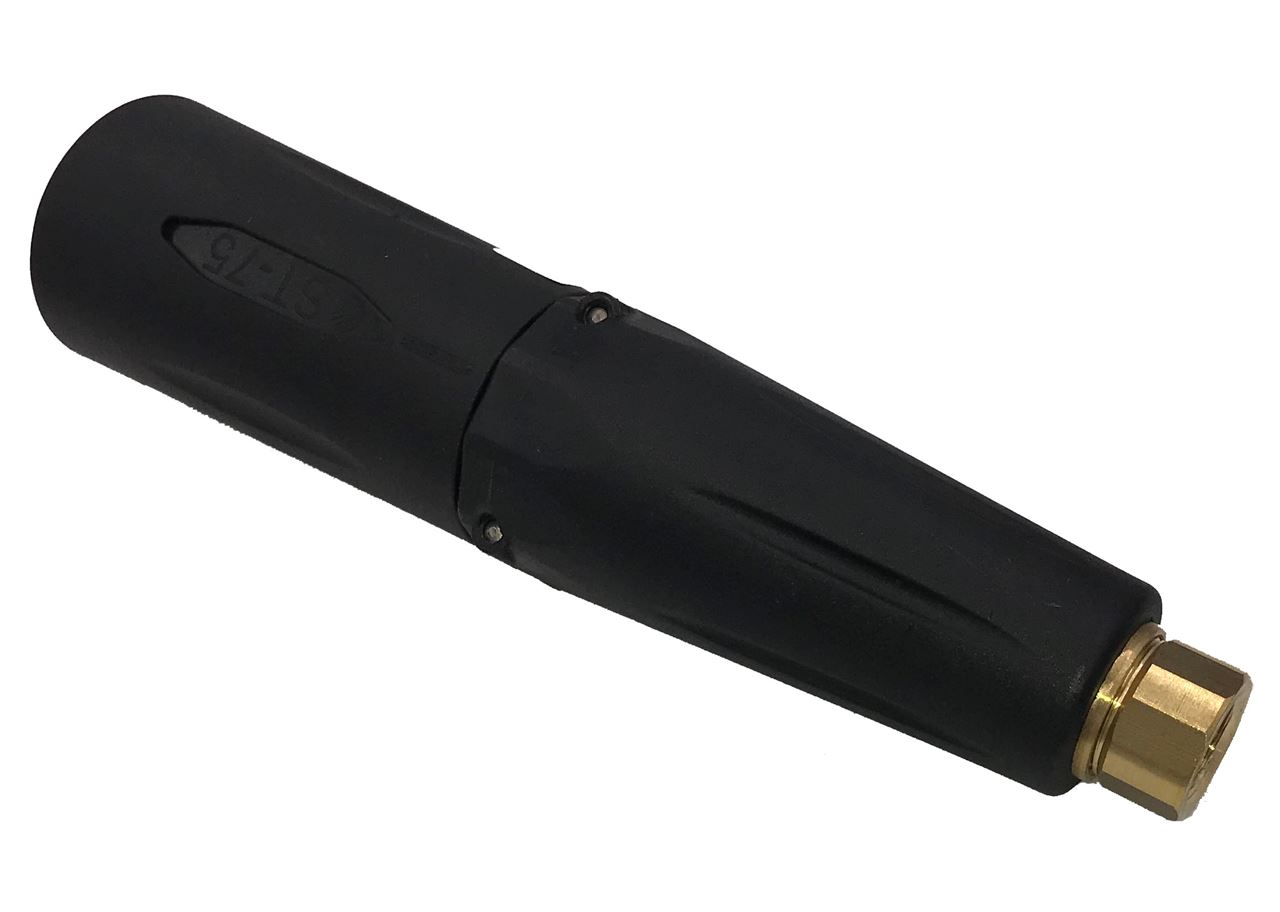

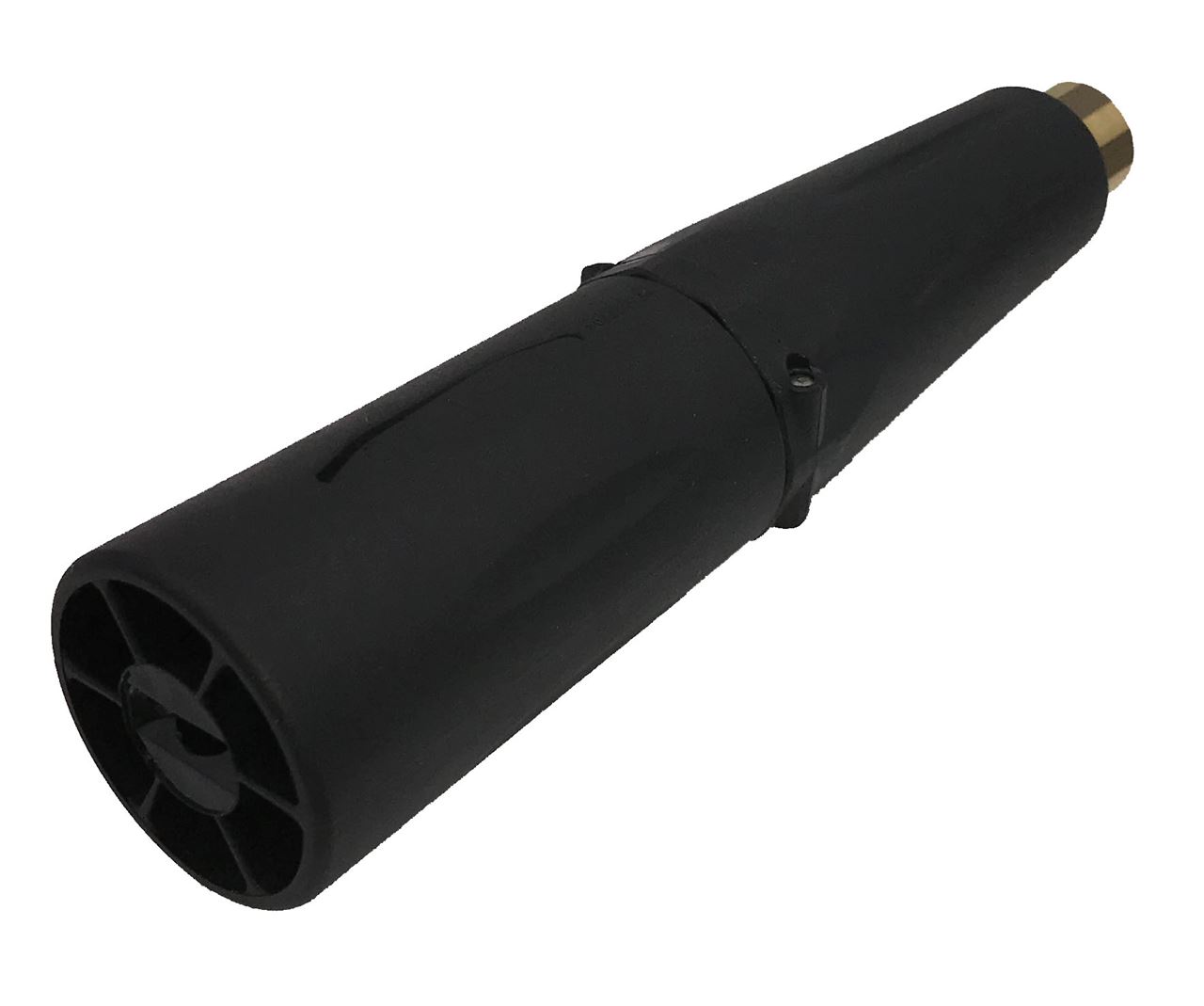

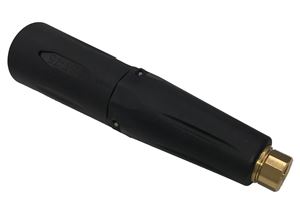

Picture of Suttner ST-75 Foam Nozzle, 4000 PSI, #5.0, 1/4" F

Suttner ST-75 Foam Nozzle, 4000 PSI, #5.0, 1/4" F

SKU: 200075552

Brand: Suttner America

Only $43.48

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


Suttner ST-75 Brass Foam Head 4,000 PSI with #5.0 Air Injector Nozzle and 1/4" F Inlet. The ST-75 produces thick foam for an easy and safe application and to save on chemical usage by reducing splash and drift of chemicals


Features
• By means of the foam head ST-75 different foam applications are possible as the air injector nozzle is easily exchangeable and adaptable
• The flat spray nozzle can be infinitely adapted from the vertical position to the horizontal one
• The maximum flow is dependent on the chosen nozzle size
• By means of the integrated air injector in the foam head the air is sucked in on the face side
• Independent of the length of the lance a constant foam quality is guaranteed
• The spraying result is especially even as a high quality foam nozzle insert is used
• With stainless steel "wool" like foam pad

ST-75 with ST-160 Chemical Injector on YouTube


Specifications
• Air Injector Nozzle Size: 5.0
• Max Pressure: 4,000 PSI
• Flow Rate: 1 - 6 GPM
• Max Temp: 212° F.
• Inlet: 1/4" Female
Note: Suttner ST-160, ST-160M or St-164 Chemical or Foam injector required and is not included
• Weight: 0.31 lb



Please use Nozzle Chart to determine proper Spray Nozzle Size

Nozzle Chart



Use Spray Nozzle Size and Foam Nozzle Chart to determine correct Foam Nozzle to use

Foam Nozzle Chart
