General Pump 0° x #7.0 M-Style Spray Nozzle 1/4” NPT-M

Features
• 5,000 PSI operating pressure
• Made in the USA
• General Pump High Pressure Spray Tips feature a two piece design
• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability
• The contour control nozzle chamber eliminates the need for flow straighteners
• Resistant to most chemical
• Laser marked for clarity and durability

Specifications
• Tip Angle: 0°
• Nozzle Size: 7.0
• Operating Pressure: 5,000 PSI
• Connection: 1/4” NPT-M
• Weight: 0.05 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

1/8” Suttner ST-49.3 Mini Stainless Steel Rotating Sewer Jetter Nozzle, # 7.0. Limited (or reduced) spinning speed for higher cleaning performance. Two radial jets hit the pipe wall directly with great impact, resulting in excellent cleaning capacity. Two strategically placed retracting jets provide cleaning energy as well as the thrust in one function, resulting in a low water consumption, while maximizing cleaning and flushing away the loosened residues. Housing and Rotor are hardened stainless steel parts with grinded contact surfaces for extended lifetime

Features
• High Quality, German engineered components
• 2 Rotating radial jets (90°) to the pipe wall for best cleaning results
• 2 Rotating rear jets (45°) for forward thrust and flushing away of the waste material
• Physically small for cornering ability
• Rated at 7300 PSI and 248° F

Specifications
• Inlet: 1/8” Female
• Nozzle Size: # 7.0
• 2 Side ports, 2 Backward, 0 Forward
• Material: Stainless steel
• Maximum Pressure: 7,300 PSI
• Max. Fluid Temperature: 248º F
• Outside Diameter (O.D.): 0.47”
• Length: 1.0”
• Weight: .05 lb

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

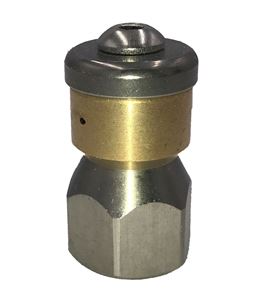

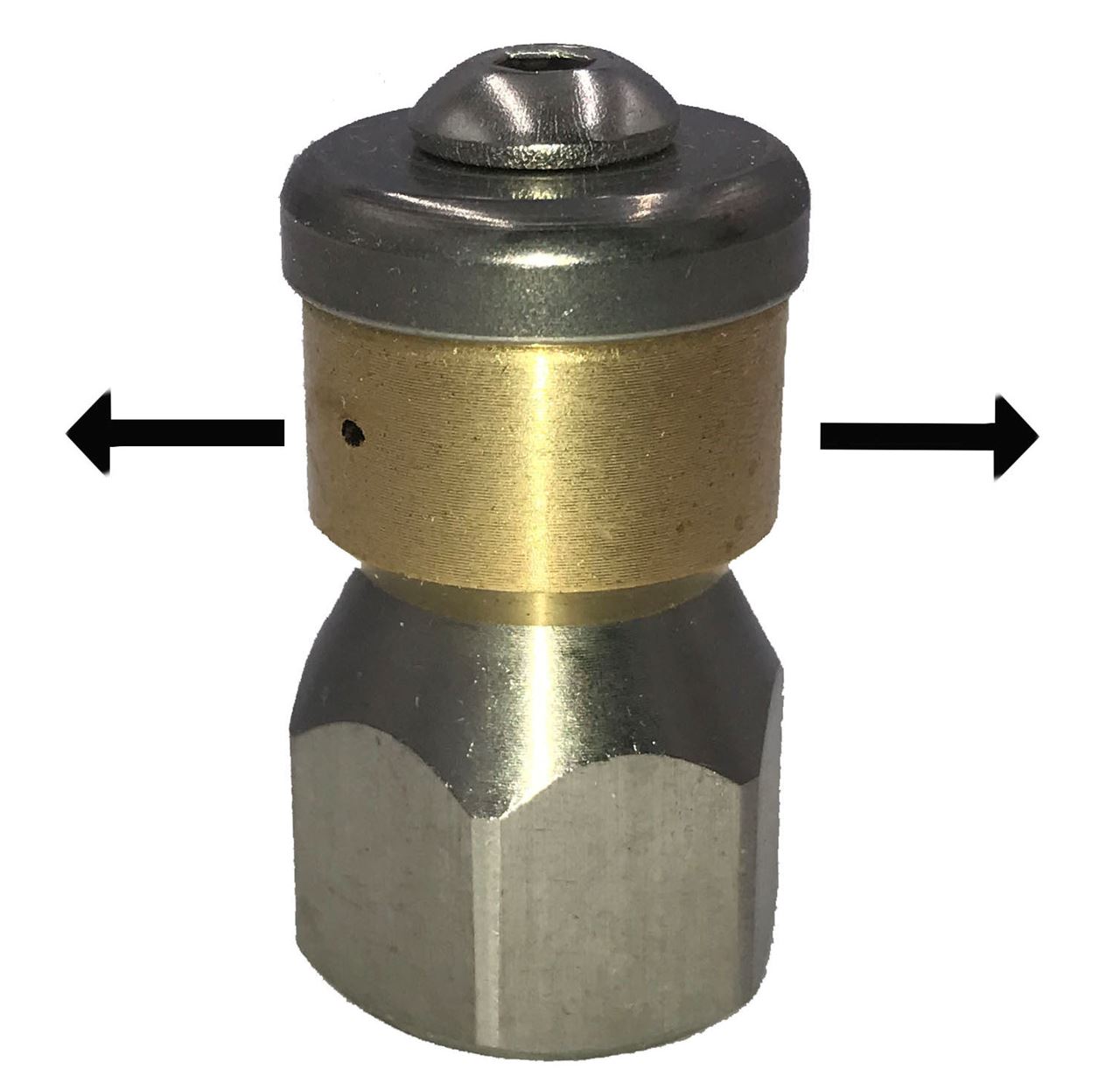

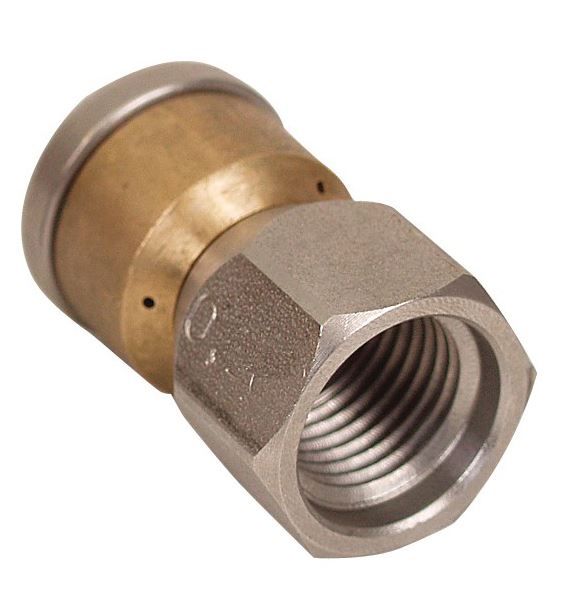

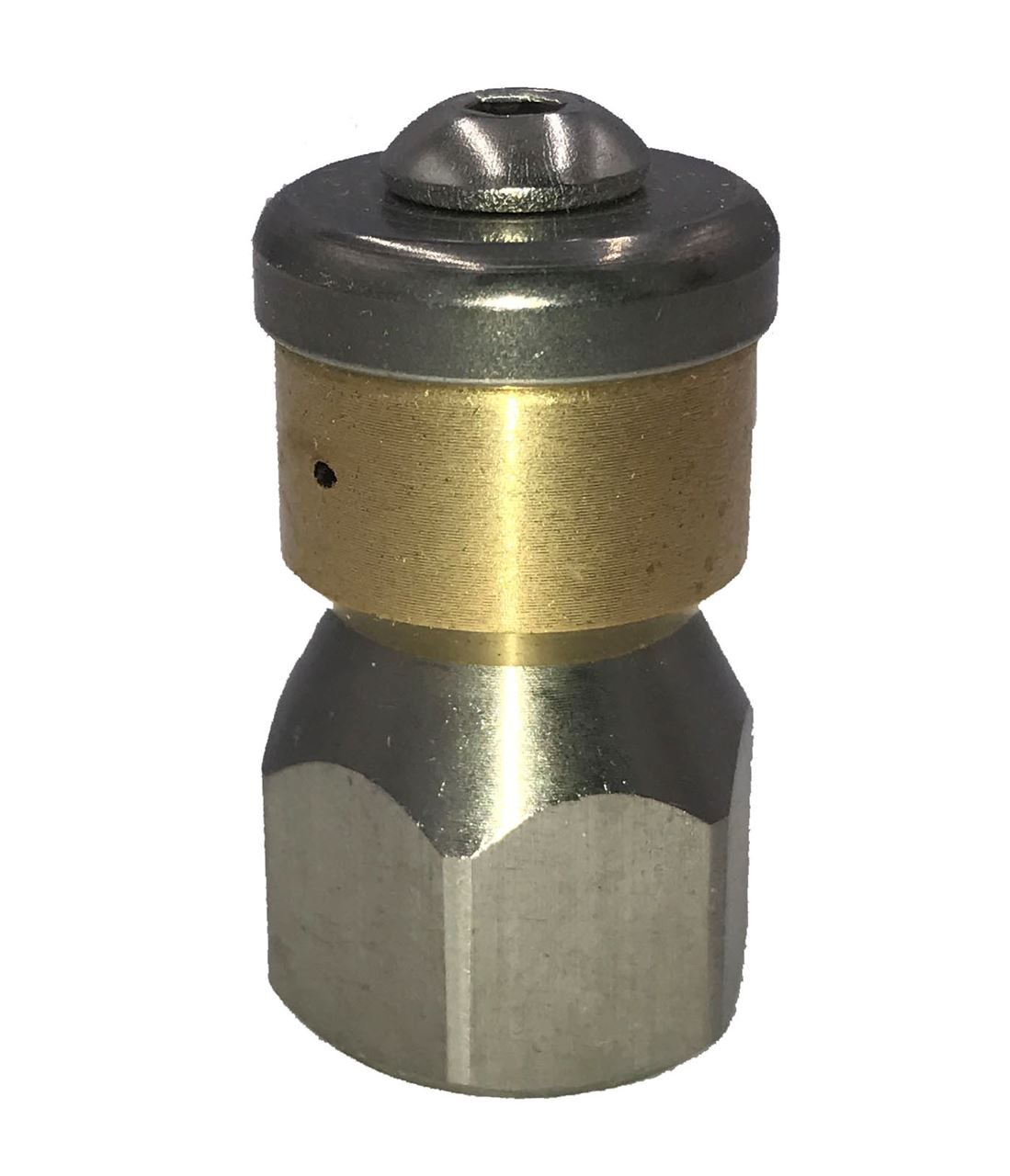

3/8” Suttner ST-49 Stainless Steel Rotating Sewer Jetter Nozzle, # 10.0. With centric front jet and 3 orifices angled backwards and to the side. Slides easily into drain pipes and sewer lines. Front jet for penetrating of clogged pipes and frozen pipelines and rear jets for flushing debris or clearing sides of pipes while attached to sewer hose

Features
• High Quality, German engineered components
• 1 Centric front jet breaks up clogs & debris
• 3 Backward ports drive the nozzle forward and flush debris
• Rotating style adds extra agitation and surface cleaning
• Corrosion resistant stainless steel and brass construction

Specifications
• Inlet: 3/8” Female
• Nozzle Size: # 10.0
• Material: Stainless steel & brass
• Maximum Pressure: 4,000 PSI
• Outside Diameter (O.D.): .94”
• Weight: .15 lb

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

General Pump 0° (Red) #7.5 Quick Connect (Q) Spray Nozzle

Features
• 5,000 PSI operating pressure
• Made in the USA
• Ceramic insert is resistant to wear
• Through-hardened stainless steel orifices offer superior wear resistance compared to standard case hardened nozzles
• Stainless steel housing resists cracking and wear
• Resistant to most chemical
• Large color coded tip protector on Q-type nozzles permits rapid identification of fan angle
• Laser marked for clarity and durability

Specifications
• Tip Angle: 0° (Red)
• Nozzle Size: 7.5
• Operating Pressure: 5,000 PSI
• Connection: 1/4” QC Plug
• Weight: 0.05 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart
