Picture of Delavan Diaphragm Pump 12 V, 80 PSI, 1.7 GPM W/Heat Sink

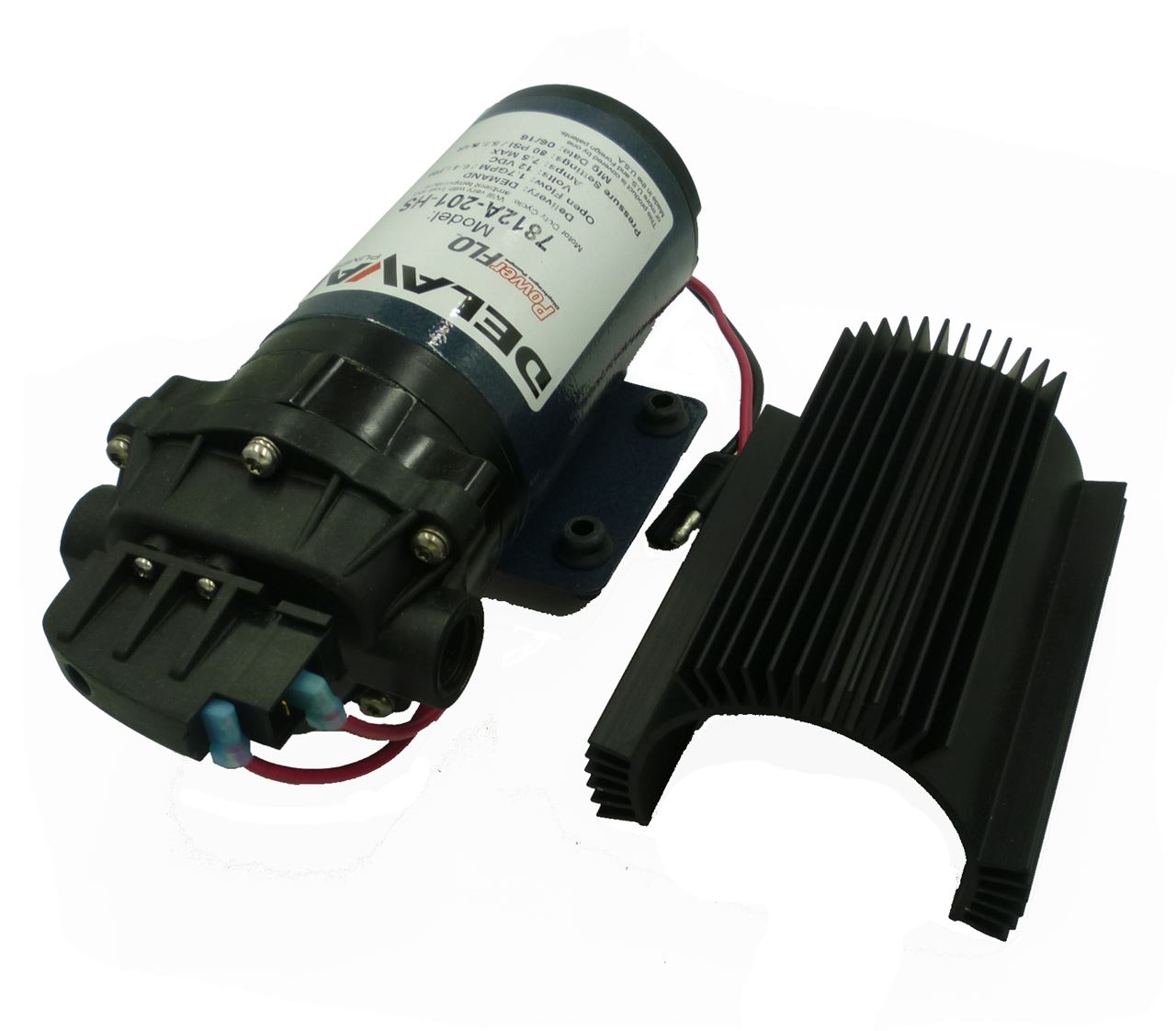

Delavan Diaphragm Pump 12 V, 80 PSI, 1.7 GPM W/Heat Sink

SKU: 7812A-201-HS

Brand: Delavan Ag Pumps, Inc.

$95.08

QTY:
ADD TO CART
ADD TO WISHLIST
Customer Product Rating
Product Description


Delavan PowerFLO™ 7812A Series 1.7 GPM 80 PSI Diaphragm Pump with Heat Sink & 3/8” FNPT Ports. Demand Switch – Operates only when liquid flow is required


Features:
• Made in the USA
• 100% Factory tested
• 2 Year warranty from date of purchase


Motor:
• Type: 12 VDC permanent magnet, totally enclosed, non-ventilated
• Leads: 14 AWG, 6” long with 2-pin connector
• Max Amps: 7.5
• Duty Cycle: See Heat Rise graph


Materials of Construction:
• Motor Shell: Coated Steel
• Housing: Polypropylene
• Valves: Viton
• Diaphragm: Santoprene
• Fasteners: Stainless Steel


Heat Sink:
• Snap-fit heat sinks will reduce motor heat up to 30%
• Help to extend the available run time of the pump as well as increase motor life
• Heat sinks are made of extruded aluminum with a black anodized finish


Pump:
• Demand Switch – Operates only when liquid flow is required
• Type: 3-chamber positive displacement
• Capable of being run dry
• Excellent self-priming capability
• Liquid Temperature: 140°F Max.
• Priming Capabilities: 14’
• Max. Flow: 1.7 GPM
• Pressure Shut-Off: 80 PSI
• Inlet/Outlet Ports: 3/8” FNPT
• Weight: 6.0 lbs



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
