Picture of Delavan Extreme Duty Geolast® Diaphragm Pump 12 V, 60 PSI, 2.0 GPM

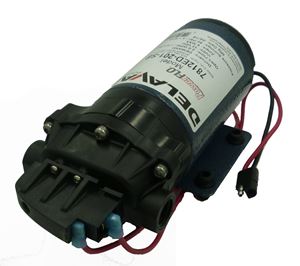

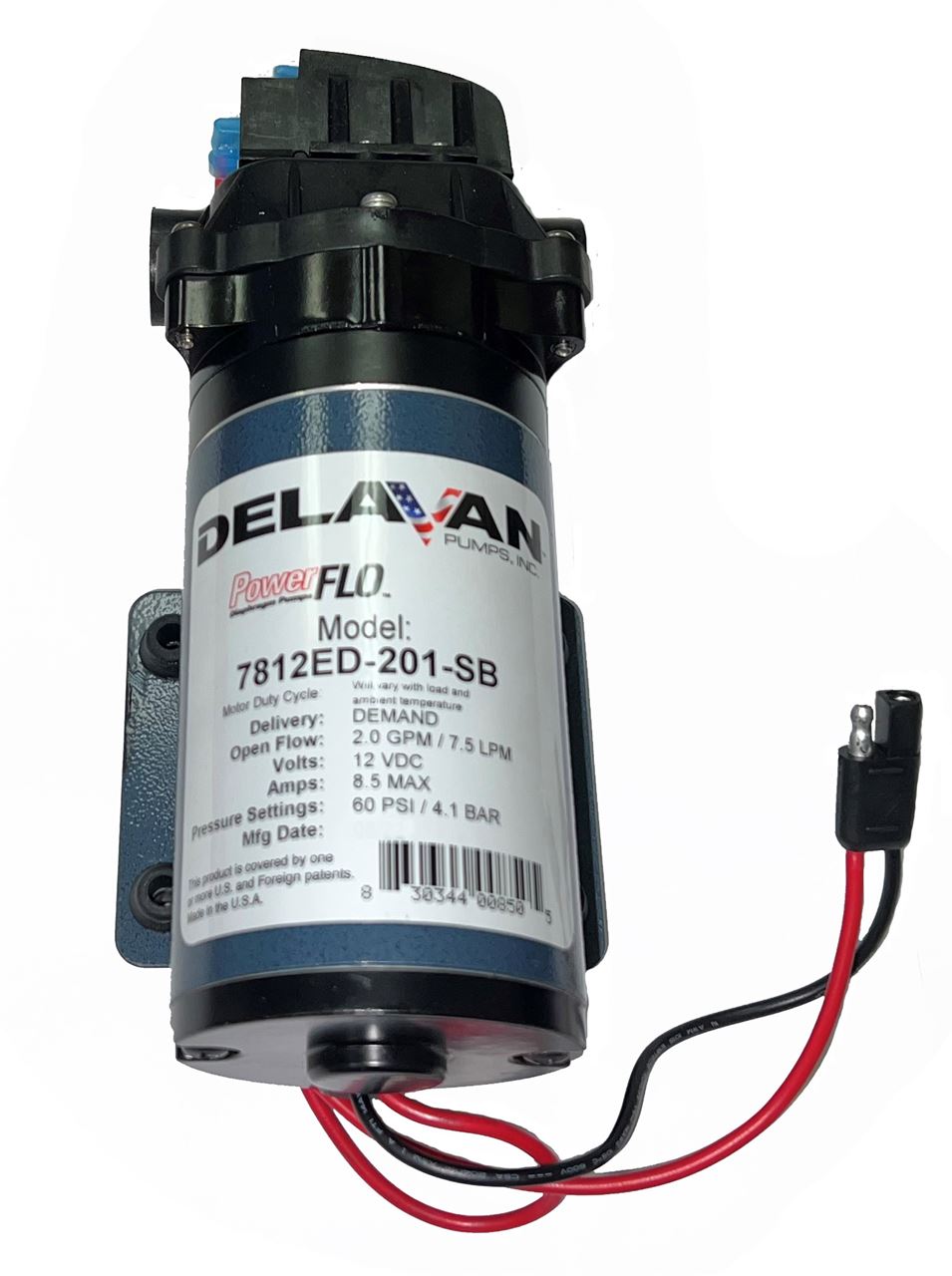

Delavan Extreme Duty Geolast® Diaphragm Pump 12 V, 60 PSI, 2.0 GPM

SKU: 7812ED-201-SB

Brand: Delavan Ag Pumps, Inc.

$76.60

QTY:
ADD TO CART
ADD TO WISHLIST
Customer Product Rating
Product Description


Delavan PowerFLO™ 7812 Extreme Duty Series 2.0 GPM 60 PSI Diaphragm Pump with 3/8” FNPT Ports. The 7812ED pump features Extreme Duty Geolast® diaphragms that have extended life when pumping chemicals with petroleum products. Demand Switch – Operates only when liquid flow is required


Features:
• Geaolast® diaphragm installed ensuring longer pump life when spraying harsh chemicals
• Made in the USA
• 100% Factory tested
• 2 Year warranty from date of purchase


Motor:
• Type: 12 VDC permanent magnet, totally enclosed, non-ventilated
• Leads: 14 AWG, 6” long with 2-pin connector
• Max Amps: 6
• Duty Cycle: See Heat Rise graph


Materials of Construction:
• Motor Shell: Coated Steel
• Housing: Polypropylene
• Valves: Viton
• Diaphragm: Geolast®
• Fasteners: Stainless Steel


Pump:
• Demand Switch – Operates only when liquid flow is required
• Type: 3-chamber positive displacement
• Capable of being run dry
• Excellent self-priming capability
• Liquid Temperature: 140°F Max.
• Priming Capabilities: 14’
• Max. Flow: 2.0 GPM
• Pressure Shut-Off: 60 PSI
• Inlet/Outlet Ports: 3/8” FNPT
• Packaging: Small box
• Weight: 6.0 lbs



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
