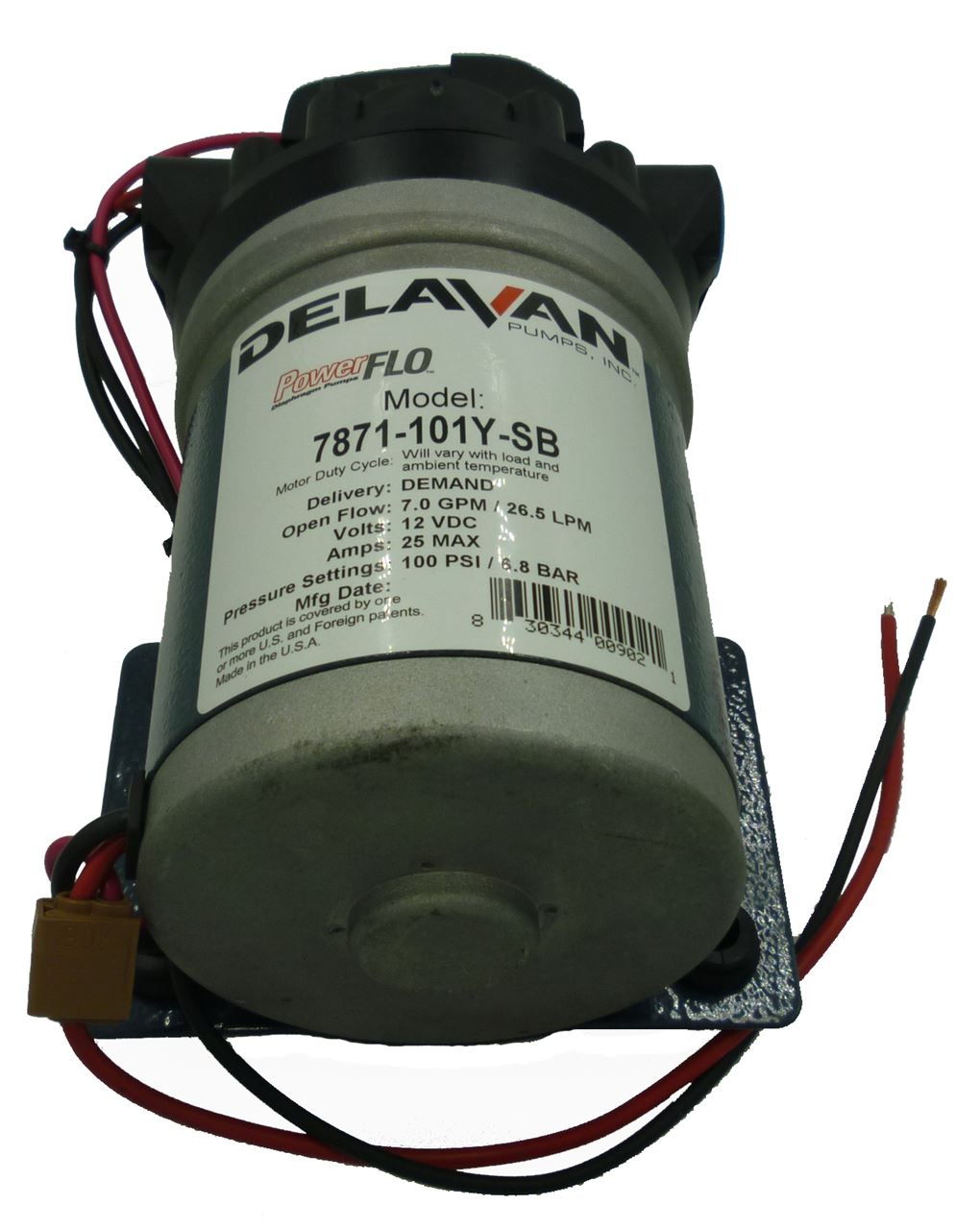

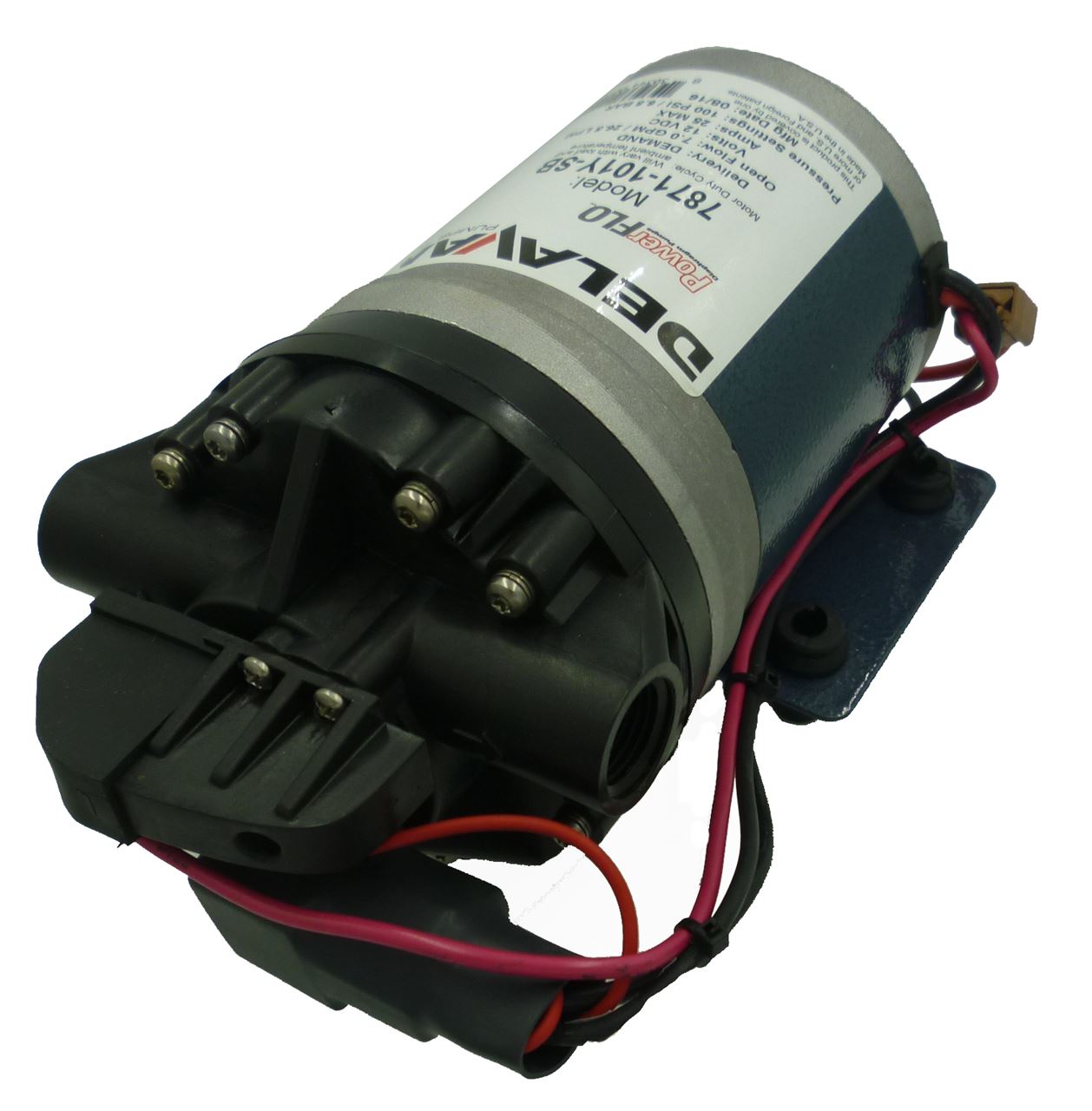

Picture of Delavan FB3 Advanced Diaphragm Pump 12V, 100PSI, 7.0GPM, DEM

Delavan FB3 Advanced Diaphragm Pump 12V, 100PSI, 7.0GPM, DEM

SKU: 7871-101Y-SB

Brand: Delavan Ag Pumps, Inc.

Only $192.60

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


Delavan 7871-101Y-SB PowerFLO™ Advanced FB3 Series 7.0 GPM 100 PSI Diaphragm Pump with 1/2” FNPT Ports. Demand Switch – Operates only when liquid flow is required.


Features:
• FB3 pumps are Delavan’s new advanced 12V smooth running, five chamber diaphragm pumps that features Extended Pump Life and Improved Performance
• The FB3 is the most advanced, high flow 12V pump on the market, built with quality components, such as stainless fasteners, and high torque motors standard
• The new diaphragm retaining system allows the pump to maintain its flow for longer hours of operation in demanding applications
• The FB3 pumps feature Santoprene diaphragms and valves, to handle the FB3 pumps’ higher flow rates
• The FB3 pump uses a heavy duty demand switch system that extends the life of the pump by turning it off when not in use
• Like all Delavan diaphragm pumps, this heavy duty pump can run dry and will self-prime
• Made in the USA
• 100% Factory tested
• 2 Year warranty from date of purchase


Motor:
• Type: 12 VDC permanent magnet, totally enclosed, non-ventilated
• Leads: 12 AWG, 6” long
• Max Amps (100 PSI): 25
• Duty Cycle: See Heat Rise graph


Materials of Construction:
• Motor Shell: Coated Steel
• Housing: Polypropylene
• Valves: Santoprene
• Diaphragm: Santoprene/ Stainless Steel
• Fasteners: Stainless Steel


Pump:
• Demand Switch – Operates only when liquid flow is required
• Type: 5-chamber positive displacement
• Capable of being run dry
• Excellent self-priming capability
• Liquid Temperature: 140° F Max.
• Priming Capabilities: 14’
• Max. Flow: 7.0 GPM
• Pressure Shut-Off: 100 PSI
• Inlet/Outlet Ports: 1/2” FNPT
• Packaging: Small box
• Weight: 9.75 lbs



Customer Reviews

stars 1.0 / 5
Burnt out after two uses !

Purchased this pump to replace by Delavan 5850 which lasted about 1 yr. Hooked this pump up and it worked amazing the 1st day of use. High volume, good even pressure etc. Unfortunately on the 2nd day of use after several hrs, pump slowed, then died. After inspecting noticed fluid leaked in motor. Pump is dead and worthless. I think I got maybe 10hrs of use out of it,
