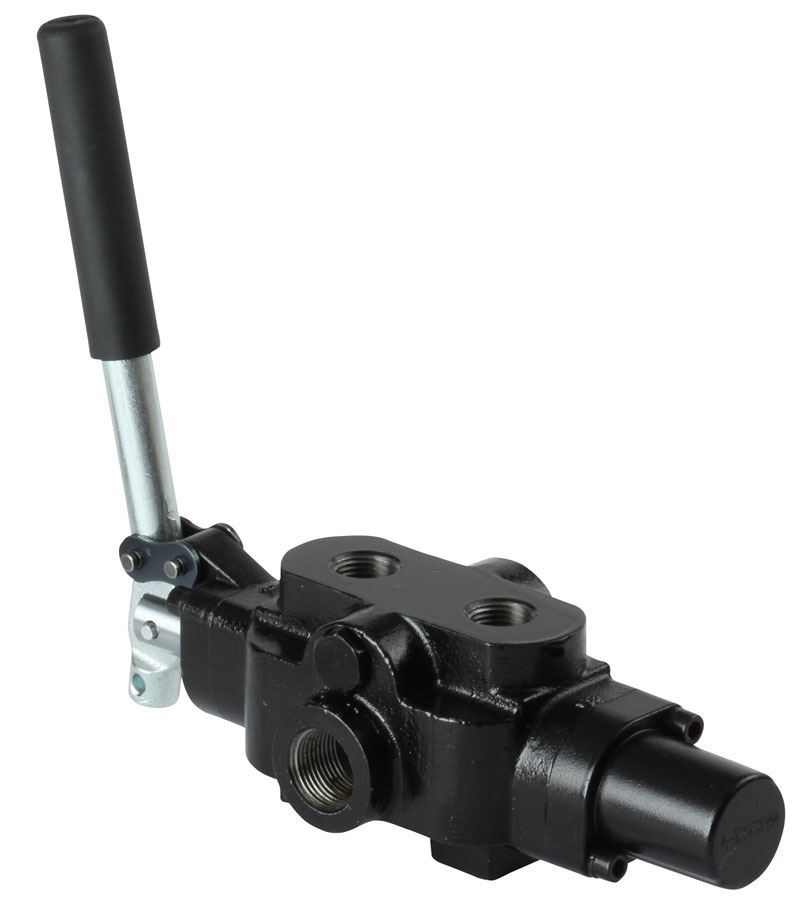

Picture of PowerMAX 30 GPM Log Splitter Kick-Off Control Valve

PowerMAX 30 GPM Log Splitter Kick-Off Control Valve

SKU: KOV30-NPT

Brand: Delavan Fluid Power

$97.43

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Delavan PowerMAX™ 30 GPM Log Splitter Kick-Off Control Valve. Delavan PowerMax Cylinders, Mono-Block and Kick-Off Valves are designed and manufactured to meet the most demanding requirements


Features:
• Constructed of high tensile strength gray cast iron
• Built-in adjustable relief valve
• Hard chrome plated spool


Recommended Hydraulic System:
• Maximum tank pressure: 500 PSI
• Maximum operating temperature: 180˚F
• Recommended system filtration: 10 micron

Product Manual


Specifications:
• Maximum GPM: 30
• Maximum operating pressure : 3,625 PSI
• Spool action is spring center/hydraulic kick-off
• Built-in relief valve preset at 2,250 PSI
• Kick-off pressure is non-adjustable, preset at 800 PSI
• Handle can be installed in “up” or “down” position
• Inlet / Outlet ports on the side: 3/4” NPT
• Top ports going to the cylinder: 1/2” NPT
• Packaging: Small box
• Warranty: 3 Years from date of purchase
• Weight: 8.95 lbs



 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of 3,000 PSI Bottom Mount 2-1/2" SS Pressure Gauge

3,000 PSI Bottom Mount 2-1/2" SS Pressure Gauge

SKU: 2141GXB3000


Valley Industries Series 41 Single Scale OEM 3,000 PSI Bottom Mount 2-1/2" SS Pressure Gauge. These gauges are designed for use with any medium not corrosive to brass or bronze. Liquid-filled gauges are recommended for reducing shock caused by pressure fluctuations or vibration


Features:
• Dial Range: 0 – 3,000 PSI
• Casing: 2 1/2" Diameter
• Movement: Brass
• Bourdon Tube: Helical in phosphor bronze
• Pointer: Black enameled aluminum
• Dial: White aluminum
• Window: Acrylic
• Case Material: 304 Stainless steel
• Mounting: Bottom
• Connection Material: Brass
• Connection Size: 1/4" MNPT
• ASME/ANSI B40.1 Grade B (3-2-3%)
• Fill Material: Glycerin (liquid)
• Wetted Parts: Copper alloy
• Weight: 0.50 lbs.



  Price: $11.70
Picture of Delavan Handle Kit for KOV30-NPT Kick-Off Valve

Delavan Handle Kit for KOV30-NPT Kick-Off Valve

SKU: KOV30-HND-RT


Delavan Replacement Handle Kit for KOV30-NPT Kick-Off Valve

Included In Kit:
• Grip, Black (1)
• Control Lever (1)
• Clevis Pin (1)
• Chain Link (1)
• Cotter Pin (1)
• Screw (2)
• Washer (2)
• Handle Bracket (1)
• Seal Retainer (1)
• Weight: 1.20 lbs

  Price: $24.55
