Mecline 15° High Pressure Threaded Spray Nozzle with Ceramic Orifice and 1/4” Male NPT

Features
• Ceramic inserts provide up to 10 times the wear life of stainless steel inserts
• Ceramic insert is resistant to wear
• The ceramic insert guarantees a more precise and stronger stream
• Stainless Steel AISI303 body

Specifications
• Flat fan jet angle: 15°
• Nozzle Size: 10.0
• Rated Pressure: 4,500 PSI
• Permissible Pressure: 5,075 PSI
• Rated Temperature: 300° F
• Inlet: 1/4” Male NPT
• Weight: 0.63 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

1/4” Suttner # 10.0 ST-49 Laser Sewer Nozzle 1 Front 5 Rear 4,200 PSI.

Features
• High Quality, German engineered components
• 1 Front jet for penetrating of completely clogged pipes and frozen pipelines
• 5 Rear jets (30°) for maximum thrust and simultaneously, a flushing away of the waste material
• Stainless steel
• Works best on 2" to 4" Pipes

Specifications
• Nozzle Size: # 10.0
• Material: Stainless steel
• Maximum Pressure: 4,200 PSI
• Inlet: 1/4” Female
• Outside Diameter (O.D.): .75”
• Weight: .60 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

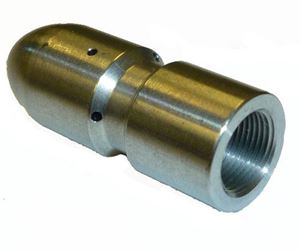

1/4” Suttner ST-49 “Grease Ball” Sewer Nozzle # 8.0, 8 Rear 7,252 PSI.

Features
• High Quality, German engineered components
• 8 Rear jets 0.6 mm for extreme thrust and highest wall coverage of the pipe
• Designed for the ability to clean grease off the sidewall of pipes but has proven to be great on root chokes, too
• Nozzle drilling as stepped bore for best protection against mechanical impact
• Hardened stainless steel
• Works best on 2" to 4" Pipes

Specifications
• Nozzle Size: # 8.0
• Material: Stainless steel
• Maximum Pressure: 7,252 PSI
• Inlet: 1/4” Female
• Outside Diameter (O.D.): .97”
• Length: .84”
• Weight: .08 lb

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart
