Picture of 1/4" Suttner #4.0 ST-49 Milling Sewer Nozzle 3 Front 4 Rear 5,076 PSI

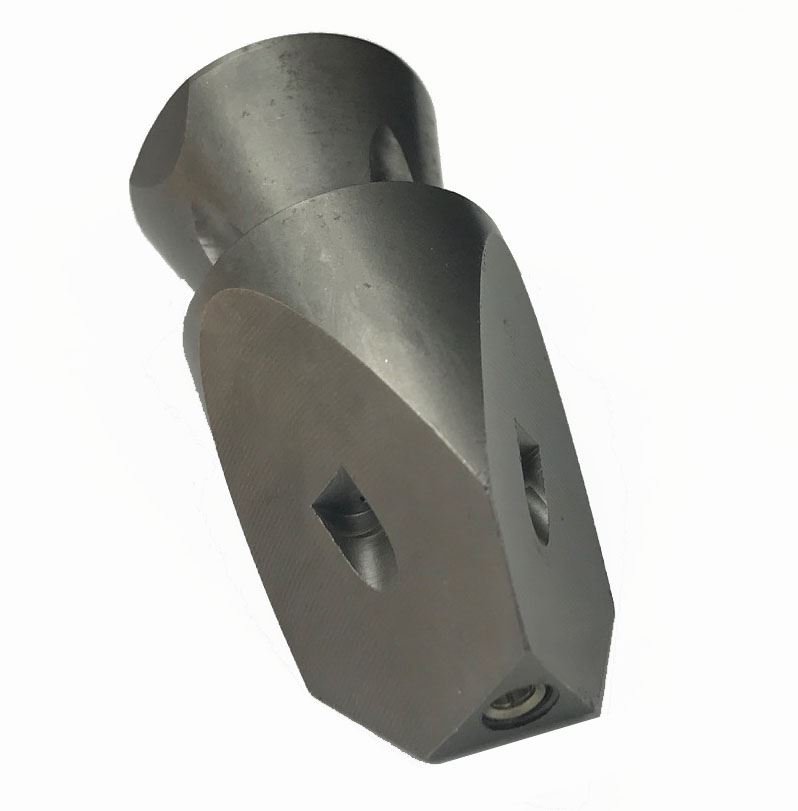

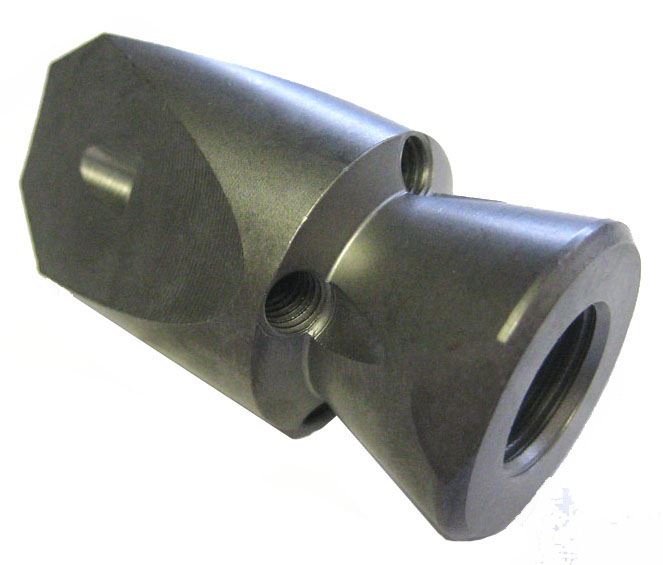

1/4" Suttner #4.0 ST-49 Milling Sewer Nozzle 3 Front 4 Rear 5,076 PSI

SKU: 649010234040

Brand: Suttner America

$136.76

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


1/4” Suttner #4.0 ST-49 Milling Sewer Cleaning Nozzle. With 3 Front and 4 Rear jets and rated to 5,076 PSI


Features:
• High Quality, German engineered components
• With its 3 very strong concentrated forward jets and the sharp cutting edges the milling type nozzles will tear through almost any kind of blockage
• The sharp edges cut, break and penetrate through every kind of blockage
• Made out of wear-resistant, hardened stainless steel
• Centric jet is plugged
• 3 Lateral front jets 0.5 mm drilled
• 4 Rear jets with nozzle inserts
• Nozzle is equipped with replaceable hardened stainless steel centric front and rear jets
• Due to this feature the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer


Applications:
• Penetration of completely clogged pipes
• Opening of root masses
• Opening of frozen pipelines
• Hydraulic thrust boring flushing operations


Specifications:
• Nozzle Size: # 4.0
• Material: Stainless steel
• Maximum Pressure: 5,076 PSI
• Inlet: 1/4” Female
• Outside Diameter (O.D.): .95”
• Weight: 2.8 oz



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of Suttner ST-49 "Grease Ball" Sewer Nozzle 1/4", # 8.0, 8 Back 7,252 PSI

Suttner ST-49 "Grease Ball" Sewer Nozzle 1/4", # 8.0, 8 Back 7,252 PSI

SKU: 120000860


1/4” Suttner ST-49 “Grease Ball” Sewer Nozzle # 8.0, 8 Rear 7,252 PSI.


Features
• High Quality, German engineered components
• 8 Rear jets 0.6 mm for extreme thrust and highest wall coverage of the pipe
• Designed for the ability to clean grease off the sidewall of pipes but has proven to be great on root chokes, too
• Nozzle drilling as stepped bore for best protection against mechanical impact
• Hardened stainless steel
• Works best on 2" to 4" Pipes


Specifications
• Nozzle Size: # 8.0
• Material: Stainless steel
• Maximum Pressure: 7,252 PSI
• Inlet: 1/4” Female
• Outside Diameter (O.D.): .97”
• Length: .84”
• Weight: .08 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart



  Price: $40.19
Picture of Laser Sewer Nozzle 1/4", # 4.5

Laser Sewer Nozzle 1/4", # 4.5

SKU: NSLAS1-045

1/4” Stainless Steel Laser Sewer Jetter Nozzle, # 4.5. Power penetrating forward jet of the LASER nozzle cuts through ice, sludge, and grease while still providing the thrust to propel the hose down the line.


Features
• Forward jet breaks up clogs & debris
• 3 Backward jets drive nozzle forward and flushes and removes debris from sides of line
• Corrosion resistant stainless steel construction


Specifications
• Inlet: 1/4” FPT
• Nozzle Size: # 4.5
• Material: Stainless steel
• Maximum Pressure: 4,200 PSI
• Max. Fluid Temperature: 300º F
• Weight: 0.6 oz.


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

  Price: $6.54
Picture of Suttner ST-49 "Root Ram" Sewer Nozzle 1/4", # 5.5, 1 Front, 3 + 3 Back 7,252 PSI

Suttner ST-49 "Root Ram" Sewer Nozzle 1/4", # 5.5, 1 Front, 3 + 3 Back 7,252 PSI

SKU: 120155672


1/4” Suttner ST-49 “Root Ram” Sewer Nozzle # 5.5, 1 Front, 3 + 3 Back 7,252 PSI.


Features
• High Quality, German engineered components
• Equipped with 1 front jet, 3 rear jets (30°) for maximum thrust and 3 additional nozzles (45°) right behind its nose for better cleaning results and wall coverage the nozzle has proven to be ideal on root chokes
• Hardened stainless steel
• Works best on 2" to 4" Pipes


Specifications
• Nozzle Size: # 5.5
• Material: Stainless steel
• Maximum Pressure: 7,252 PSI
• Max Flow: 7.9 GPM
• Inlet: 1/4” Female
• Outside Diameter (O.D.): .86”
• Length: 1.46”
• Weight: .08 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

  Price: $53.73
Picture of GP Quick Connect Fittings 5,000 PSI (SS Plug & SS Socket)

GP Quick Connect Fittings 5,000 PSI (SS Plug & SS Socket)

SKU: 88.0155


General Pump 3/8" 5,000 PSI Stainless Steel Quick Disconnect Fittings (1 Plug & 1 Socket)


Features:
• Quick disconnect design
• Body Material: 304 Stainless steel
• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler socket with EPDM O-ring
• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler plug
• Max Temp: 175°
• Max Operating Pressure: 5,000 PSI
• Works with standard quick connects
• Weight: 0.30 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"
  Price: $8.96
