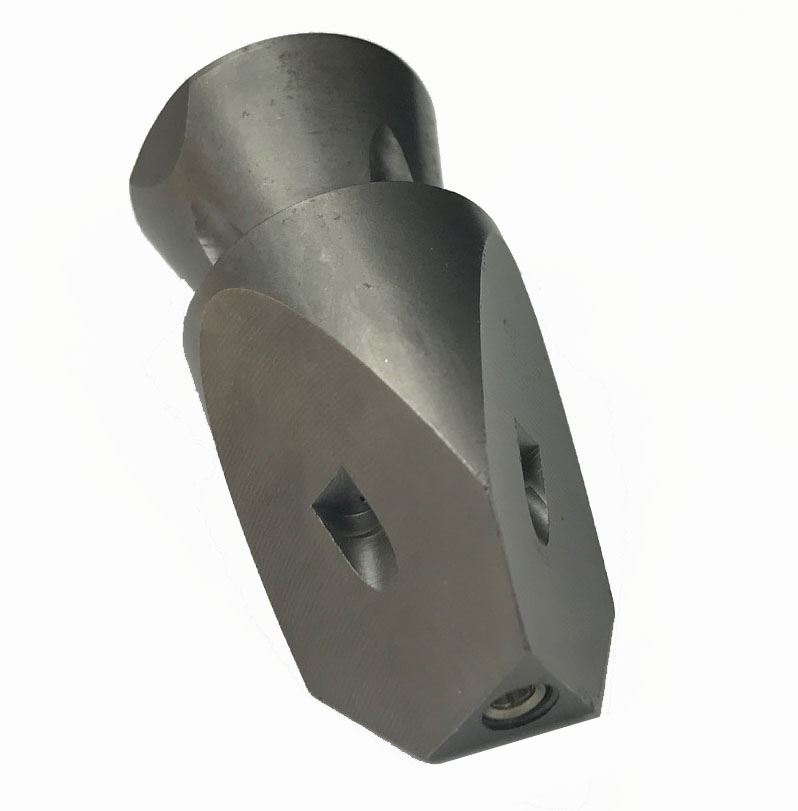

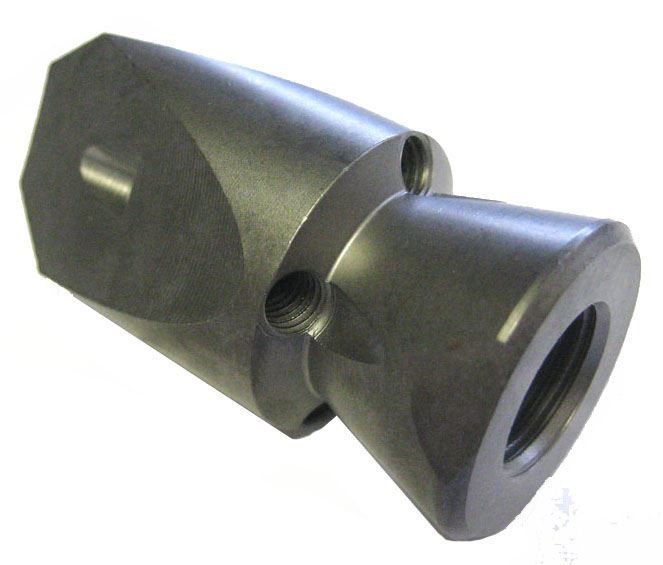

1/4” Suttner #12.0 ST-49 Milling Sewer Cleaning Nozzle. With 1 Centric, 3 Front and 4 Rear jets and rated to 5,076 PSI
Features:• High Quality, German engineered components• With its 4 very strong concentrated forward jets and the sharp cutting edges the milling type nozzles will tear through almost any kind of blockage• The sharp edges cut, break and penetrate through every kind of blockage• Made out of wear-resistant, hardened stainless steel• 1 Centric front jet with nozzle insert• 3 Lateral front jets 0.5 mm drilled• 4 Rear jets with nozzle inserts• Nozzle is equipped with replaceable hardened stainless steel centric front and rear jets• Due to this feature the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer
Applications:• Penetration of completely clogged pipes• Opening of root masses• Opening of frozen pipelines• Hydraulic thrust boring flushing operations
Specifications:• Nozzle Size: # 12.0• Material: Stainless steel• Maximum Pressure: 5,076 PSI• Inlet: 1/4” Female• Outside Diameter (O.D.): .95”• Weight: 2.8 oz
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Construction:• Inner Tube: Yellow seamless thermoplastic• Reinforcement: High tensile double synthetic fiber braids• Cover: Abrasion resistant polyether-urethane
Features: • Materials: Constructed to provide rugged and reliable service under the most severe and demanding conditions• Yellow Color Tube: Assures the user that they are using a WASTEC designated Piranha® Hose Product• Seamless Thermoplastic Tube: Provides maximum resistance to hydrolysis• High Tensile Double Synthetic Fiber Braids: Contributes to low volumetric expansion and eliminates loss of strength from moisture absorption• Abrasion Resistant Polyether-Urethane: Polyurethane cover provides exceptional cut, abrasion and fungus resistance• Pressure Testing: All Piranha® factory-assembled hoses are 100% pressure tested
Specifications:• Service Temp. Range: -40º F to +160º F• Hose ID: 1/4”• Assembled Length: 300’• Male NPT Fittings: 1/4 - 18• Color: Red• Max. Working Pressure: 5,000 PSI • Weight: 20.5 lbs.
General Pump DHRA50450 3/8" x 450' or 1/2" x 375' or 5/8” x 300’ (garden hose). "A" Frame Industrial Hose Reel. Rated 5,000 PSI and up to 250° F. Ideal for use with pressure washers, sewer jetters, lawn & tree sprayers, etc. Can be used as is or can be mounted to portable cart or stacked FEATURES• Direct hand-crank rewind with pin lock• Solid steel construction• Durable gray high-gloss powder coated finish• Full flow stainless steel swivel• Friction brake• Switchable swivel/handle• HD steel welded frame• HD sealed axle bearings• Includes one D10032 Fitting 3/4” GH X 1/2 NPT-M
DHRA Spec Sheet
SPECIFICATIONS• Capacity 3/8" Pressure Washer / Sewer Hose: 450’• Capacity 5/8" Garden Hose: 325’• Capacity 3/4" Garden Hose: 250’• Max. PSI: 5,000• Max Temp: 250° F.• Color: Black• Inlet: 1/2 NPT-F (Bushing Included, 1/2 NPT-M x 3/8 NPT-F)• Outlet: 1/2 NPT-F (Bushing Included, 1/2 NPT-M x 3/8 NPT-F)• Carton Dimensions: 26” x 20” x 18” • Gross Weight 47.6 lbs
1/4” F Suttner #8.0 ST-49 Turbo Nozzle Driver With 4 Rear jet inserts and rated to 5,076 PSI
Features:• High Quality, German engineered components• Turbo nozzle driver and ST-356 or ST-456 turbo nozzle are the perfect combination for drilling through blockages with its rotary forward facing jet• Driven up to the blockage by 4 powerful rear facing hardened stainless steel nozzles the high speed forward facing spinning jet creates a cone shape that has enough cutting force to blast through roots and scale• It is also ideal for cutting up and shredding tissue and fat deposits
Note:• Above shown item (1st Picture) is for the driver portion only• You will have to add the corresponding ST-357 or ST-456 turbo nozzle to complete the driver (2nd Picture)
Specifications:• Material: Hardened stainless steel• Maximum Pressure: 5,076 PSI• Inlet (Sewer Hose): 1/4” Female• Outlet (Turbo Nozzle): 1/4” Male• Nozzle Size: # 8.0 (With a #3.0 ST-357 or ST-456 nozzle)• Note: Requires #3.0 ST-357 or ST-456 1/4” turbo nozzle (Not Included) • Weight: 0.20 lbs
1/4” Suttner ST-49 Stainless Steel Rotating Sewer Jetter Nozzle, # 12.0. Does not have a forward spraying orifice, but has 2 orifices angled to the side and 3 orifices angled backwards and to the side. Rotating duct style has 90° side ports that are ideal for cleaning industrial sized air conditioning and heating ducts
Features• High Quality, German engineered components• 2 Side ports, 0 Forward, 3 Backward• Corrosion resistant stainless steel and brass construction
Specifications • Inlet: 1/4” Female• Nozzle Size: # 12.0• Material: Stainless steel & brass• Maximum Pressure: 4,000 PSI• Outside Diameter (O.D.): .745”• Weight: .08 lb
