3/8” F Suttner #6.5 ST-49 Turbo Nozzle Driver With 6 Rear jet inserts and rated to 5,076 PSI

Features:
• High Quality, German engineered components
• Turbo nozzle driver and ST-356 or ST-456 turbo nozzle are the perfect combination for drilling through blockages with its rotary forward facing jet
• Driven up to the blockage by 6 powerful rear facing hardened stainless steel nozzles the high speed forward facing spinning jet creates a cone shape that has enough cutting force to blast through roots and scale
• It is also ideal for cutting up and shredding tissue and fat deposits

Note:

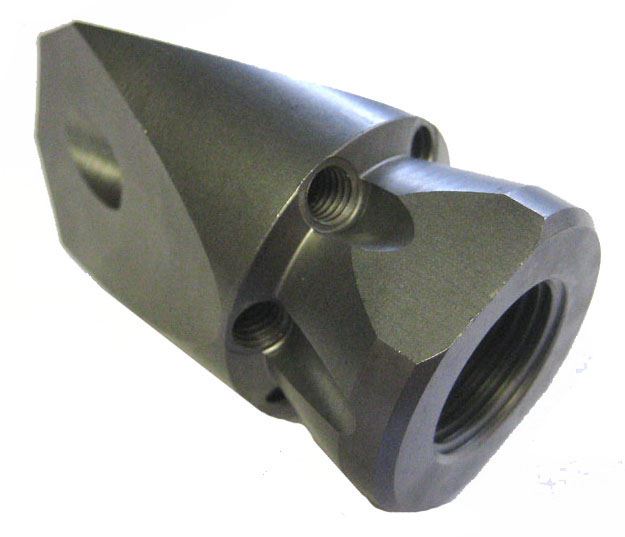

• Above shown item (1st Picture) is for the driver portion only

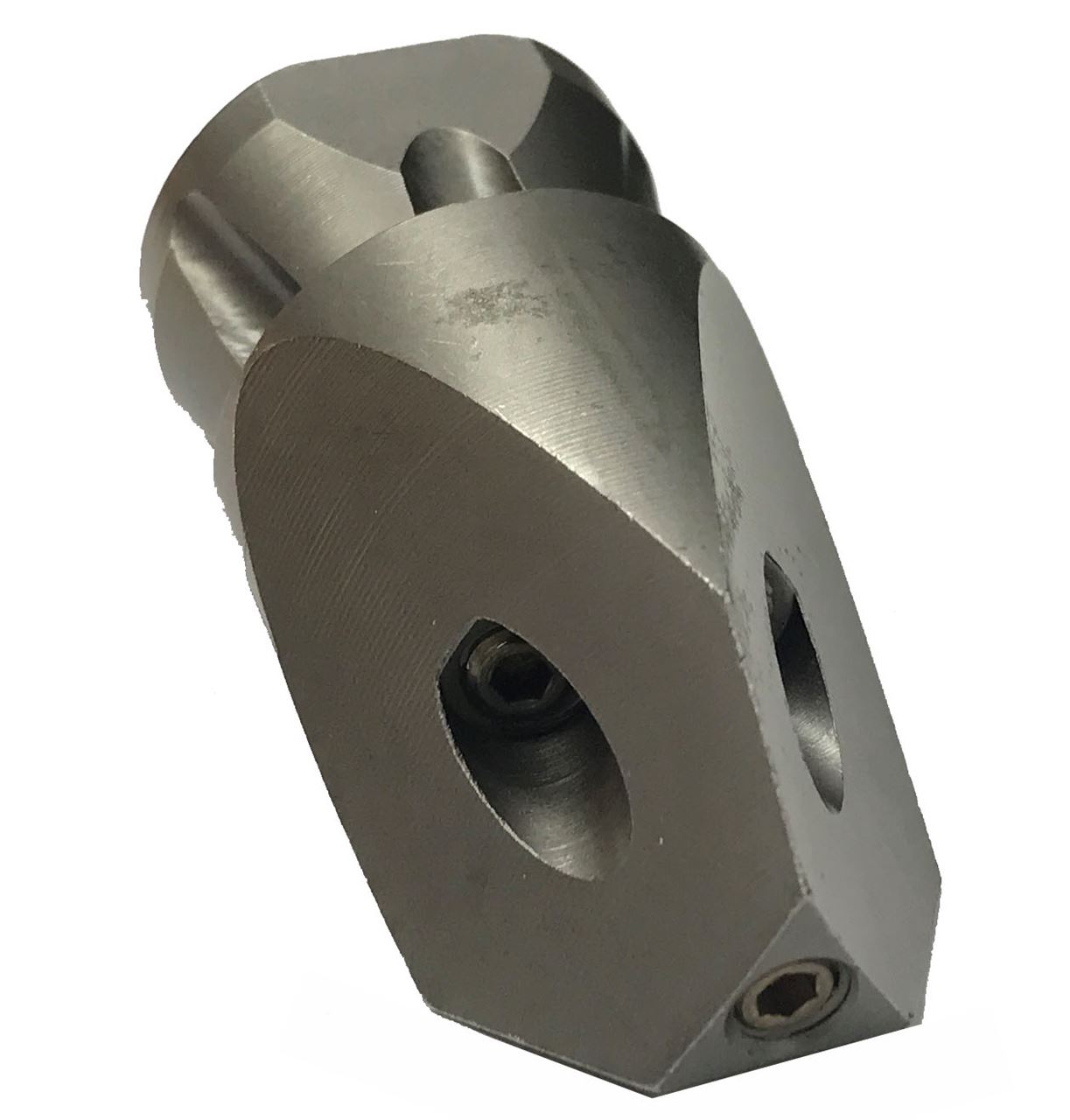

• You will have to add the corresponding ST-357 or ST-456 turbo nozzle to complete the driver (2nd Picture)

Specifications:
• Material: Hardened stainless steel
• Maximum Pressure: 5,076 PSI
• Inlet (Sewer Hose): 3/8” Female
• Outlet (Turbo Nozzle): 1/4” Male
• Nozzle Size: # 6.5 (With a #3.0 ST-357 or ST-456 nozzle)
• Note: Requires #3.0 ST-357 or ST-456 1/4” turbo nozzle (Not Included)
• Weight: 0.20 lbs

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Suttner ST-357 Turbo / Rotating #3.0 Nozzle is rated for up to 3,625 PSI. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete, graffiti cleaning or caked on mud on heavy equipment

Features
• Increases cleaning efficiency as much as 200%
• The 0° rotation creates a cleaning and tearing action
• Ideal for hard surfaces
• Improved materials for longer life

Specifications
• Nozzle Size # 3.0
• Max PSI: 3,625
• Max Temp.: 190° F
• Inlet: 1/4" Female NPT
• NOTE: All rotating nozzles should be started pointing downward
• Weight: 0.68 lbs

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

ProPulse, a Schieffer Company, backed by more than 90 years of innovation

MADE IN USA
Every foot of Propulse Jetter Clean is manufactured at our ISO9001:2008 certified factory in the USA using 100% domestically sourced materials

Features:
• Suitable for consumer and commercial applications
• Reinforcement: One layer of polyester braid
• Cover: Thermoplastic smooth finish with printed lay line
• Burst (Minimum): 2.5:1 working pressure
• Easily slides into sewer lines and pipes
• Glossy black abrasion resistant cover

Specifications:
• Inner Diameter: 1/8” ID
• Length: 50’
• Working (Maximum) Pressure: 4,800 PSI
• Burst (Minimum): 12,000 PSI
• Optimal Recommended Flow Rate: Up to 1.5 GPM
• Max. Fluid Temperature: 160º F.
• Inlet: 1/8” MPT with 1/4” MPT Bushing (Solid)
• Outlet: 1/8” MPT (Solid)
• Weight 1.5 lbs

Features:
• Suitable for cold and hot water commercial pressure cleaning applications
• Reinforcement: Two layers of high tensile braided steel – R2 Rating
• Cover: Wrapped finish with embossed lay line in grey “mark-less” cover color
• Burst (Minimum): 3:1 working pressure
• Impulse Life: 200,000+

Specifications:
• Hose Inner Diameter: 3/8" ID
• Length: 4’
• Working (Maximum): Up to 6,000 PSI
• Burst (Minimum): 18,000 PSI
• Color: Grey, “mark-less”
• Maximum Temperature: 212° F.
• Ends: 3/8" MPT (1 solid & 1 swivel)
• Weight 1.45 lbs
