Picture of 1/2" Suttner #12.0 ST-49 Milling Sewer Nozzle 1 Centric 3 Front 6 Rear 5,076 PSI

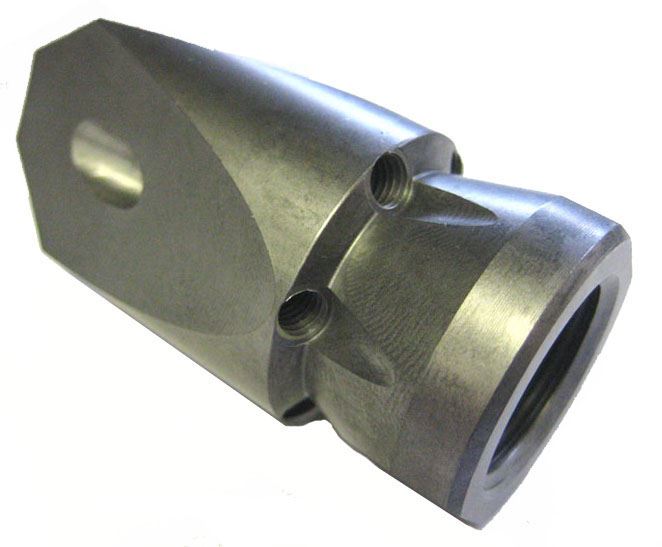

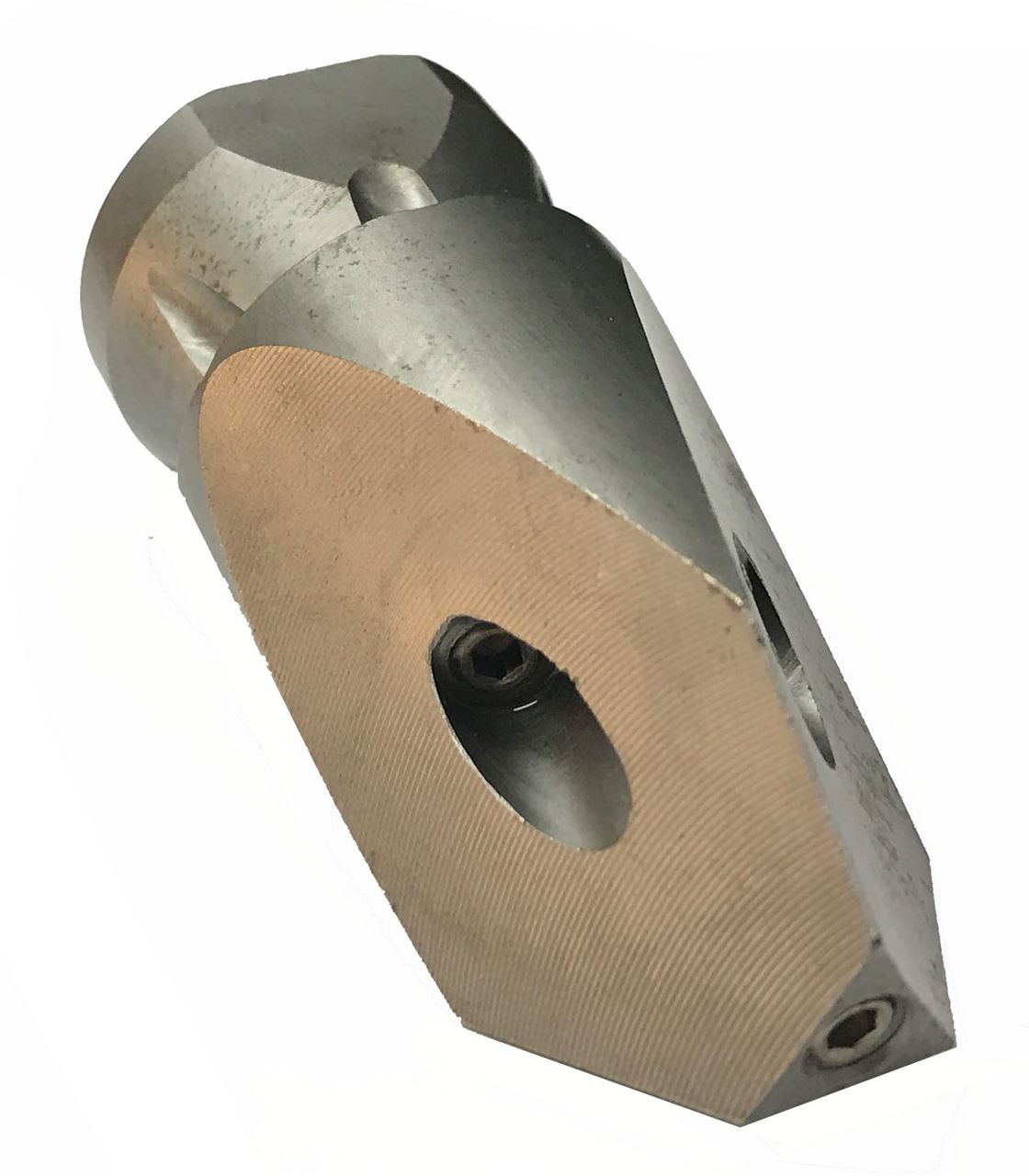

1/2" Suttner #12.0 ST-49 Milling Sewer Nozzle 1 Centric 3 Front 6 Rear 5,076 PSI

SKU: 649010446120

Brand: Suttner America

$146.85

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


1/2” Suttner #12.0 ST-49 Milling Sewer Cleaning Nozzle. With 1 Centric, 3 Front and 6 Rear jets and rated to 5,076 PSI


Features:
• High Quality, German engineered components
• With its 4 very strong concentrated forward jets and the sharp cutting edges the milling type nozzles will tear through almost any kind of blockage
• The sharp edges cut, break and penetrate through every kind of blockage
• Made out of wear-resistant, hardened stainless steel
• 1 Centric front jet with nozzle insert
• 3 Lateral front jets with nozzle inserts
• 6 Rear jets with nozzle inserts
• Nozzle is equipped with replaceable hardened stainless steel nozzle inserts
• Due to this feature the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer


Applications:
• Penetration of completely clogged pipes
• Opening of root masses
• Opening of frozen pipelines
• Hydraulic thrust boring flushing operations


Specifications:
• Nozzle Size: # 12.0
• Material: Stainless steel
• Maximum Pressure: 5,076 PSI
• Inlet: 1/2” Female
• Outside Diameter (O.D.): 1.23”
• Weight: 5.7 oz



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
