Suttner ST-357 Turbo / Rotating #5.0 Nozzle is rated for up to 3,625 PSI. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete, graffiti cleaning or caked on mud on heavy equipment

Features
• Increases cleaning efficiency as much as 200%
• The 0° rotation creates a cleaning and tearing action
• Ideal for hard surfaces
• Improved materials for longer life

Specifications
• Nozzle Size # 5.0
• Max PSI: 3,625
• Max Temp.: 190° F
• Inlet: 1/4" Female NPT
• NOTE: All rotating nozzles should be started pointing downward
• Weight: 0.68 lbs

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Suttner Dual ST-357 Turbo Nozzle Plough Jet. With 3/8"F Inlet & two 1/4"M Outlets and rated to 5,076 PSI

Features:
• High Quality, German engineered components
• When fitted with two rear facing ST-357 rotating nozzles the small plough jet nozzle is the ideal solution for desilting drains and sewers
• The heavy forged brass construction keeps the jet firmly planted in the base of the pipe where the silt deposits collect and blasts them back towards the manhole
• Select turbo nozzle size symmetric according to pressure and flow rate of the machine

Specifications:
• Material: Forged brass and stainless steel
• Maximum Pressure: 5,076 PSI
• Inlet: 3/8” Female
• Outlets (2): 1/4” Male
• Max Flow: 21.0 GPM
• Outside Diameter (O.D.): 3.46”
• Note: Requires (2) ST-357 1/4” turbo nozzles (Not Included)
• Weight: 2.45 lbs

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

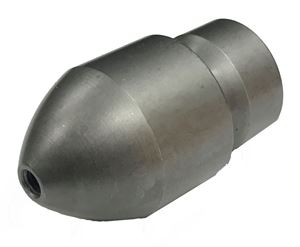

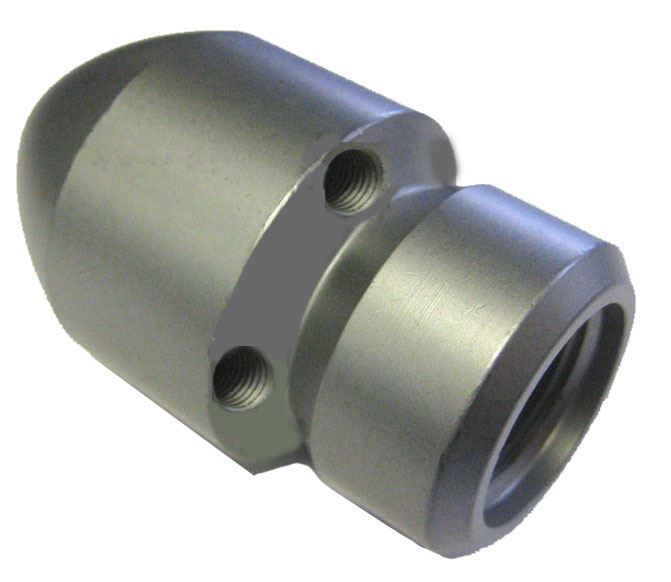

3/8” Suttner #10.0 ST-49 Bullet Sewer Cleaning Nozzle. With 1 Front and 4 Rear jet inserts and rated to 7,252 PSI

Features:
• High Quality, German engineered components
• Made out of wear-resistant, hardened stainless steel
• 1 Front jet with nozzle insert
• 4 Rear jets with nozzle inserts, angle of jet is 30°
• Sturdy wall thickness, long service life and a minimum of wear and tear
• All nozzles are provided with hardened stainless steel inserts
• Due to this feature the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer

Applications:
• Suitable for removal of sludge deposits
• Desilting of pipes
• Opening of frozen pipelines

Specifications:
• Nozzle Size: # 10.0
• Material: Stainless steel
• Maximum Pressure: 7,252 PSI
• Inlet: 3/8” Female
• Outside Diameter (O.D.): 1.18”
• Weight: 5.8 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

3/8” Suttner #10.0 ST-49 Milling Sewer Cleaning Nozzle. With 1 Centric, 3 Front and 6 Rear jets and rated to 5,076 PSI

Features:
• High Quality, German engineered components
• With its 4 very strong concentrated forward jets and the sharp cutting edges the milling type nozzles will tear through almost any kind of blockage
• The sharp edges cut, break and penetrate through every kind of blockage
• Made out of wear-resistant, hardened stainless steel
• 1 Centric front jet with nozzle insert
• 3 Lateral front jets with nozzle inserts
• 6 Rear jets with nozzle inserts
• Nozzle is equipped with replaceable hardened stainless steel nozzle inserts
• Due to this feature the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer

Applications:
• Penetration of completely clogged pipes
• Opening of root masses
• Opening of frozen pipelines
• Hydraulic thrust boring flushing operations

Specifications:
• Nozzle Size: # 10.0
• Material: Stainless steel
• Maximum Pressure: 5,076 PSI
• Inlet: 3/8” Female
• Outside Diameter (O.D.): 1.11”
• Weight: 4.0 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart
