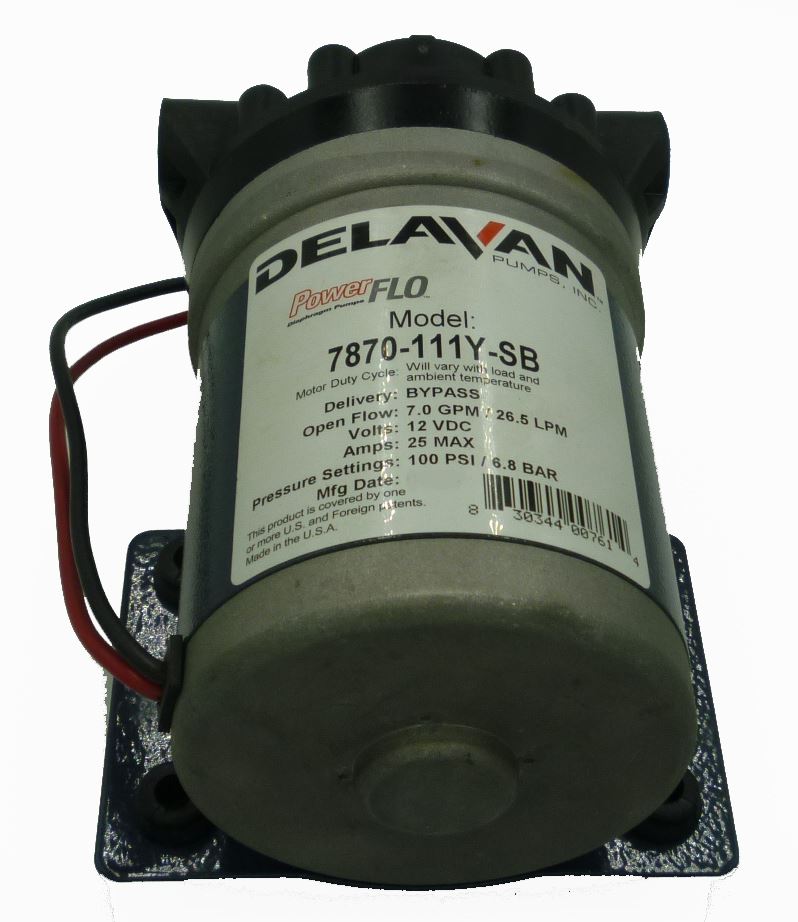

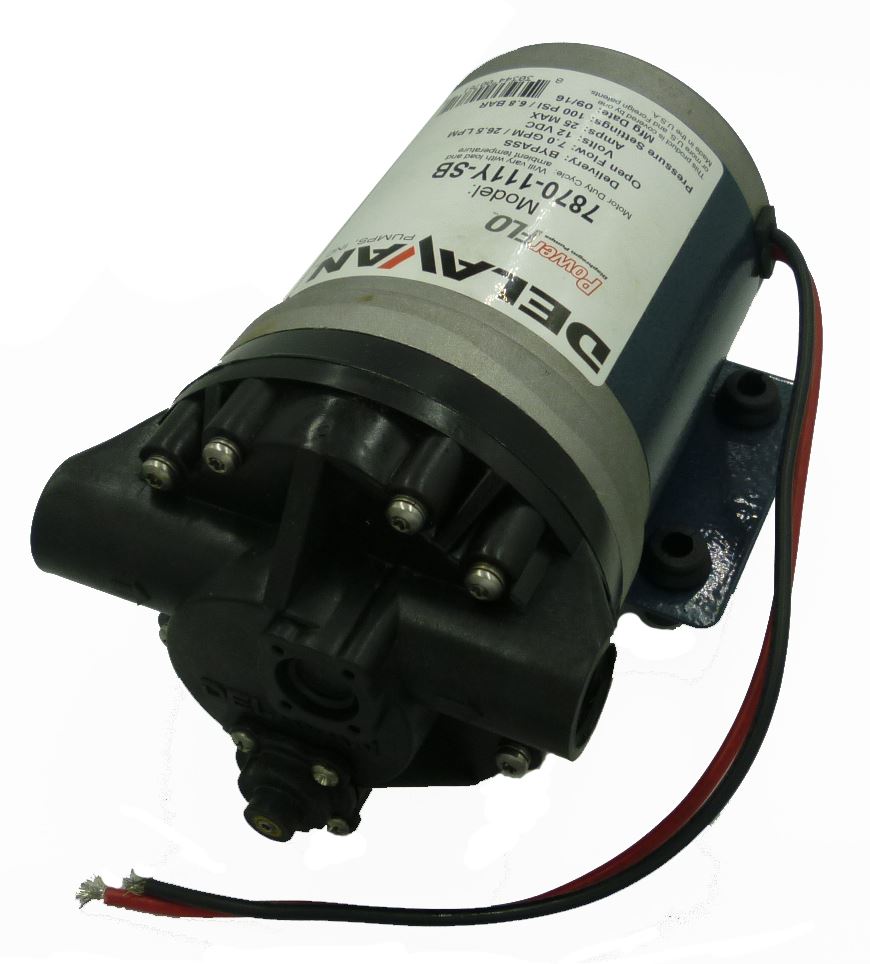

Delavan 7870-111Y-SB PowerFLO™ FB2 Series 7.0 GPM 100 PSI Diaphragm Pump with 1/2” FNPT Ports. Bypass Design – Continuous operation.

Features:
• The FB2 pumps are heavy duty 12V, 7 GPM pumps with Santoprene diaphragms and Santoprene valves
• These FB2 5 chamber pumps are smooth running, and can run dry, and self-prime
• The pumps feature popular threaded NPTF ports
• The FB2 pumps are known for one of the highest flow rates in the 12V market
• The FB2 pumps are used in difficult applications such as roof cleaning, and de-icing
• Certified to NSF/ANSI Standard 61 & 372
• Made in the USA
• 100% Factory tested
• 2 Year warranty from date of purchase

Motor:
• Type: 12 VDC permanent magnet, totally enclosed, non-ventilated
• Leads: 12 AWG, 12” long
• Max Amps (100 PSI): 25
• Duty Cycle: See Heat Rise graph

Materials of Construction:
• Motor Shell: Coated Steel
• Housing: Polypropylene Glass Filled
• Valves: Santoprene
• Diaphragm: Santoprene
• Fasteners: Stainless Steel

NSF/ANSI Certified:
• NSF/ANSI Standard 61 - Drinking Water System Components - Health Effects
• NSF/ANSI 372 and conforms with the lead content requirements for “lead free” plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act

Manufacturer Recommendation:
• If you are going to be running continuous use with any bypass model of pump, Delavan also recommends that you purchase a heat sink for the motor

Pump:
• Bypass Design – Continuous operation with internal bypass
• Type: 5-chamber positive displacement
• Capable of being run dry
• Excellent self-priming capability
• Liquid Temperature: 140° F Max.
• Priming Capabilities: 14’
• Max. Flow: 7.0 GPM
• Max Pressure: 100 PSI
• Inlet/Outlet Ports: 1/2” FNPT
• Packaging: Small box
• Weight: 9.75 lbs
