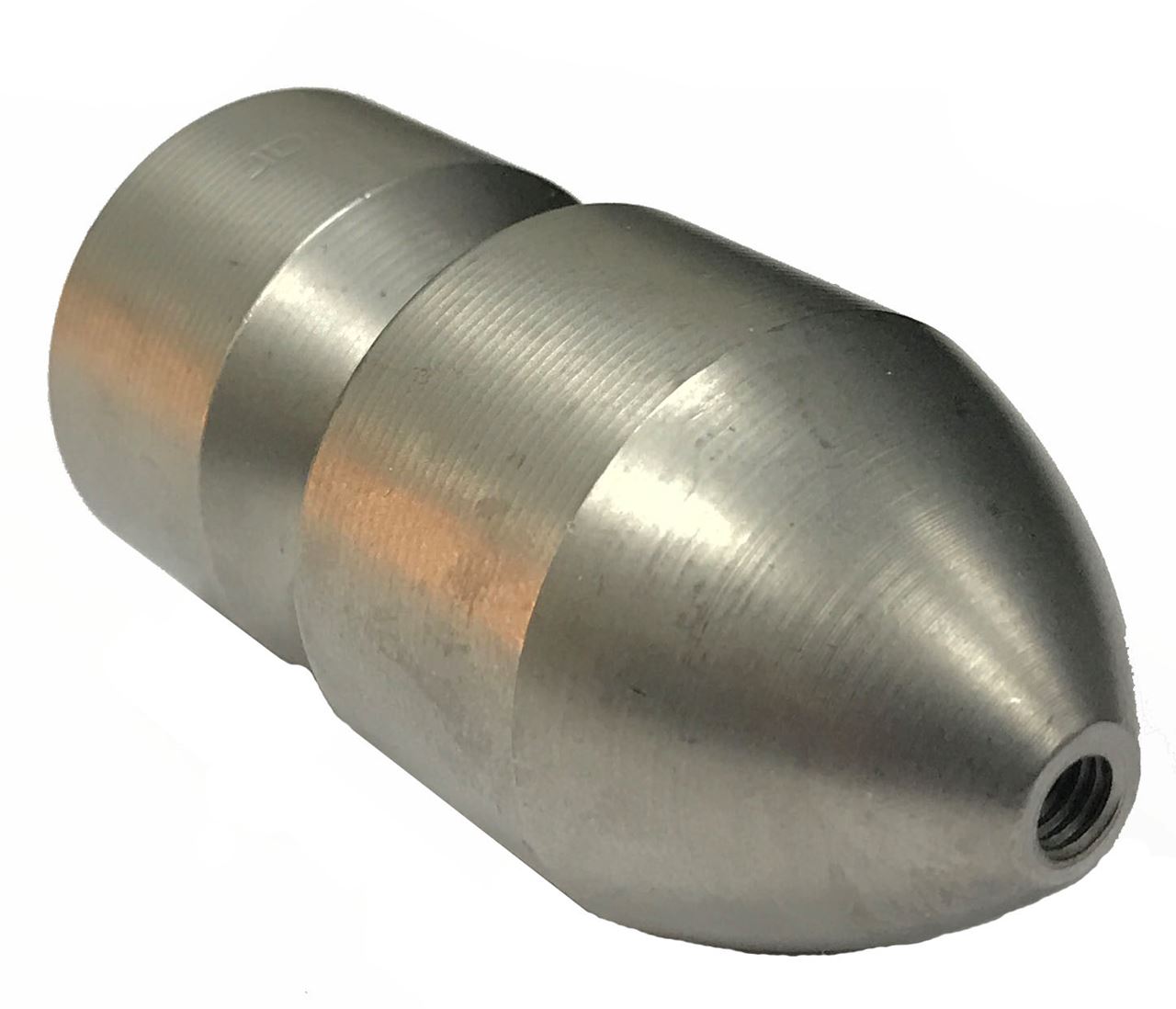

Picture of 1/2" Suttner #10.0 ST-49 Bullet Sewer Nozzle 1 Front 6 Rear 7,252 PSI

1/2" Suttner #10.0 ST-49 Bullet Sewer Nozzle 1 Front 6 Rear 7,252 PSI

SKU: 649030416100

Brand: Suttner America

$91.83

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


1/2” Suttner #10.0 ST-49 Bullet Sewer Cleaning Nozzle. With 1 Front and 6 Rear jet inserts and rated to 7,252 PSI


Features:
• High Quality, German engineered components
• Made out of wear-resistant, hardened stainless steel
• 1 Front jet with nozzle insert
• 6 Rear jets with nozzle inserts, angle of jet is 30°
• Sturdy wall thickness, long service life and a minimum of wear and tear
• All nozzles are provided with hardened stainless steel inserts
• Due to this feature the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer


Applications:
• Suitable for removal of sludge deposits
• Desilting of pipes
• Opening of frozen pipelines


Specifications:
• Nozzle Size: # 10.0
• Material: Stainless steel
• Maximum Pressure: 7,252 PSI
• Inlet: 1/2” Female
• Outside Diameter (O.D.): 1.18”
• Weight: 5.8 oz



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
