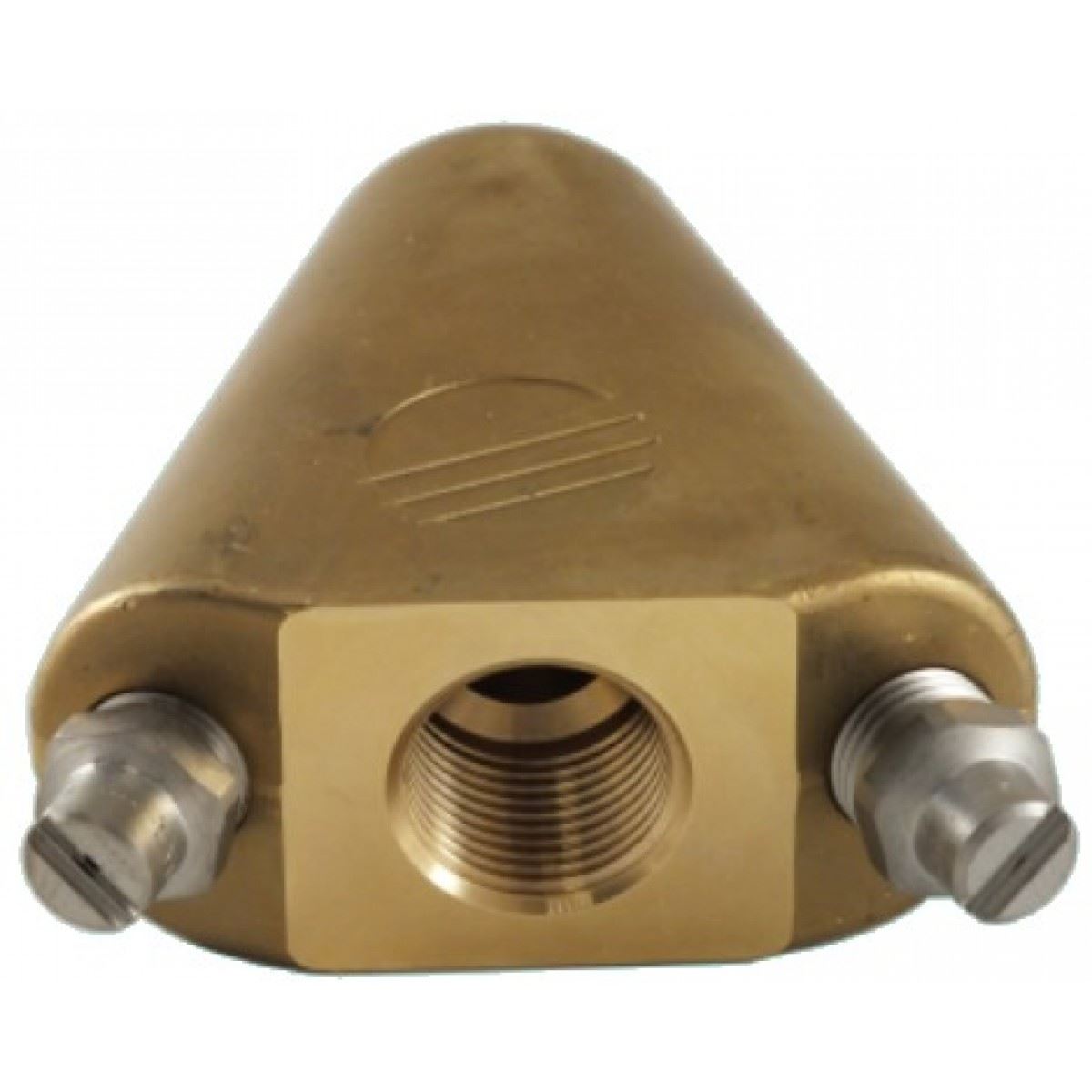

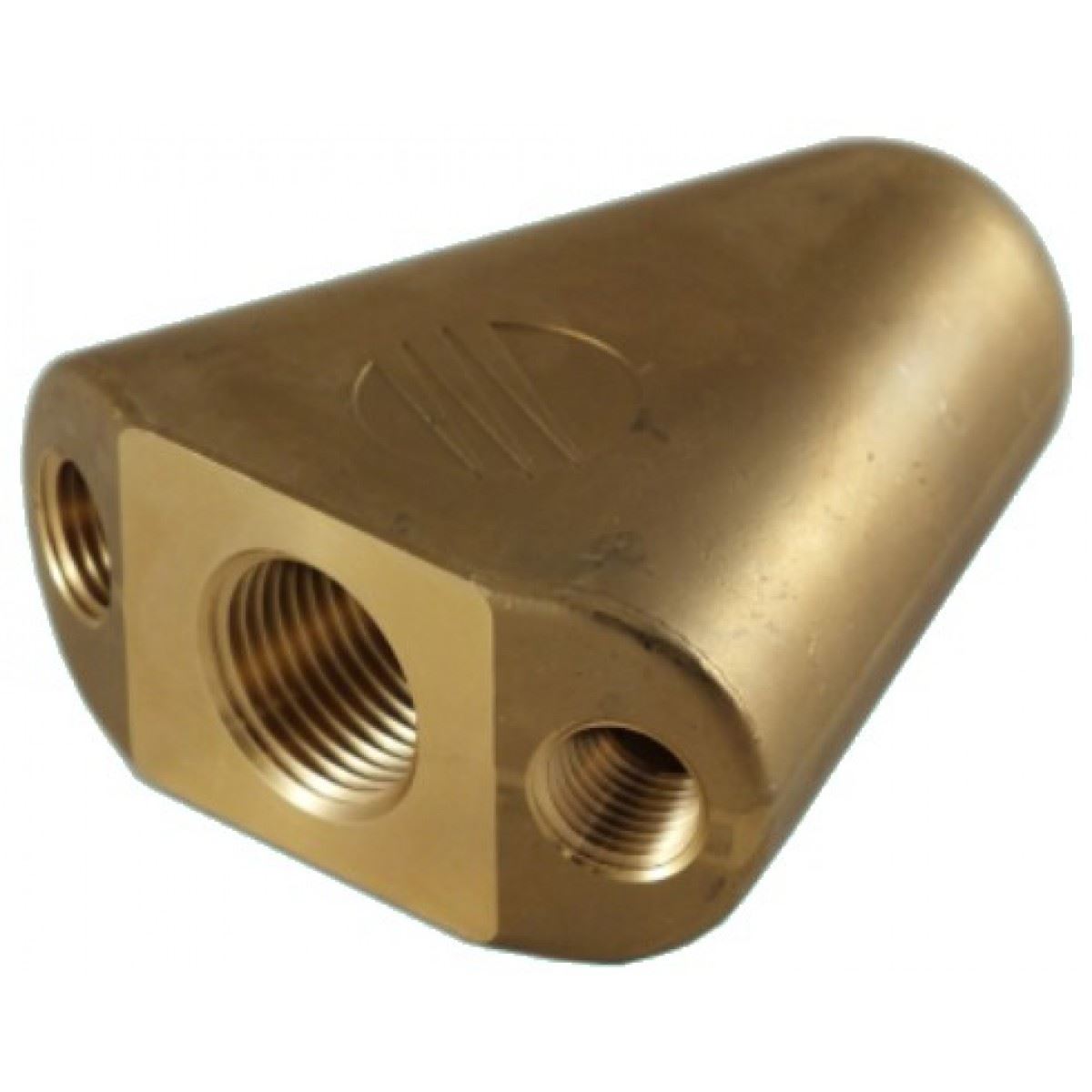

Suttner Dual MPT Nozzle Plough Jet 1/2"F x 1/4"F (2) 6,091 PSI

SKU: 010000399

Brand: Suttner America

Price: $39.33

QTY:

ADD TO CART

ADD TO WISHLIST

Product Description

Suttner Dual MPT Nozzle Plough Jet. With 1/2"F Inlet & two 1/4"F NPT Outlets and rated to 6,091 PSI

Features:
• High Quality, German engineered components
• When fitted with two rear facing fan jets the small plough jet nozzle is great for desilting drains and sewers
• The heavy forged brass construction keeps the jet firmly planted in the base of the pipe where the silt deposits collect and blasts them back towards the manhole

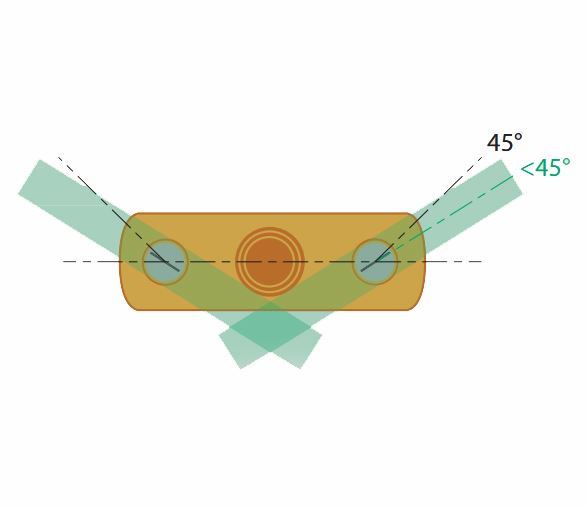

• 1/4" MPT nozzles need to be assembled under 45° to achieve best cleaning results
• Select nozzle size according to pressure and flow rate of the machine

Specifications:
• Material: Forged brass
• Maximum Pressure: 6,091 PSI
• Inlet: 1/2” Female
• Outlets (2): 1/4” Female NPT
• Max Flow: 21.0 GPM
• Outside Diameter (O.D.): 2.83”
• Note: Requires (2) 1/4” MPT nozzles (Not Included - 15° Optimal)
• Weight: 1.50 lbs

Nominal Thread Size (NPT)	1/8"	1/4"	3/8"	1/2"	3/4"	1"
Actual I.D. Measurement	3/8"	1/2"	5/8"	3/4"	1"	1-3/8"

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
