Picture of Suttner ST-160 Stainless Single Chemical Injector w/9 Metering Nozzles, #5.5, 3/8"

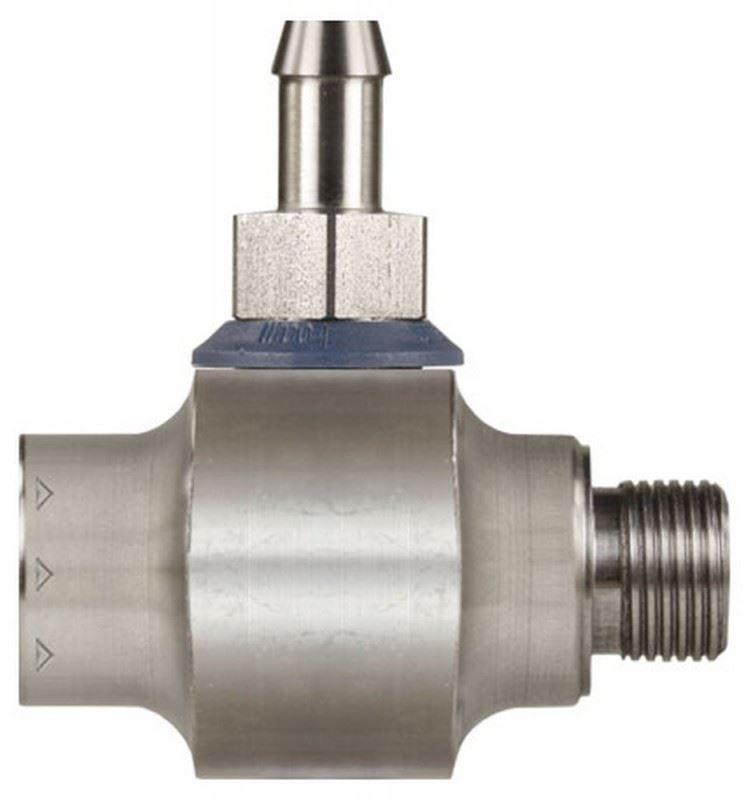

Suttner ST-160 Stainless Single Chemical Injector w/9 Metering Nozzles, #5.5, 3/8"

SKU: 200160515

Brand: Suttner America

Only $93.69

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


Suttner ST-160 Stainless Steel Single Chemical Injector w/9 Metering / Dosing Nozzles, #5.5, 5000 PSI, 3/8" F x 3/8” M


Features
• Food grade quality and specifications
• Durable Stainless Steel housing
• 9 Metering / dosing nozzles included (See 2nd picture)
• Uses .35" I.D. Hose


Specifications
• Nozzle/Orifice Size: 5.5
• Max Flow Rate: 18 GPM
• Min Flow Rate: 1 GPM
• Max Pressure: 5,000 PSI
• Min Pressure: 1,000 PSI
• Max Temp: 194° F.
• Inlet: 3/8” Female
• Outlet: 3/8” Male
• Hose Barb: .35” ID hose
• Weight: 0.71 lb

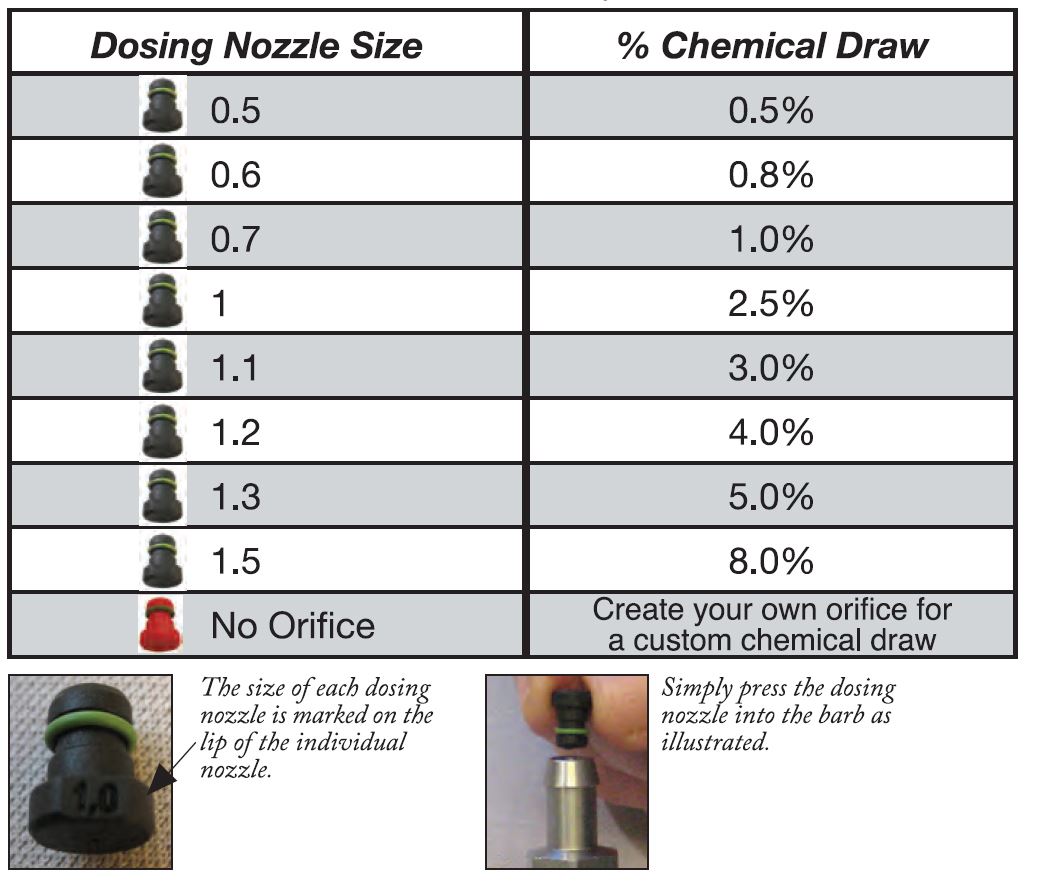

Please use Nozzle Chart to determine proper nozzle size


Note: If between sizes, choose the larger nozzle size

Nozzle Chart



See the ST-160 System Diagram below to determine the foam components needed

ST-160 System Diagram
