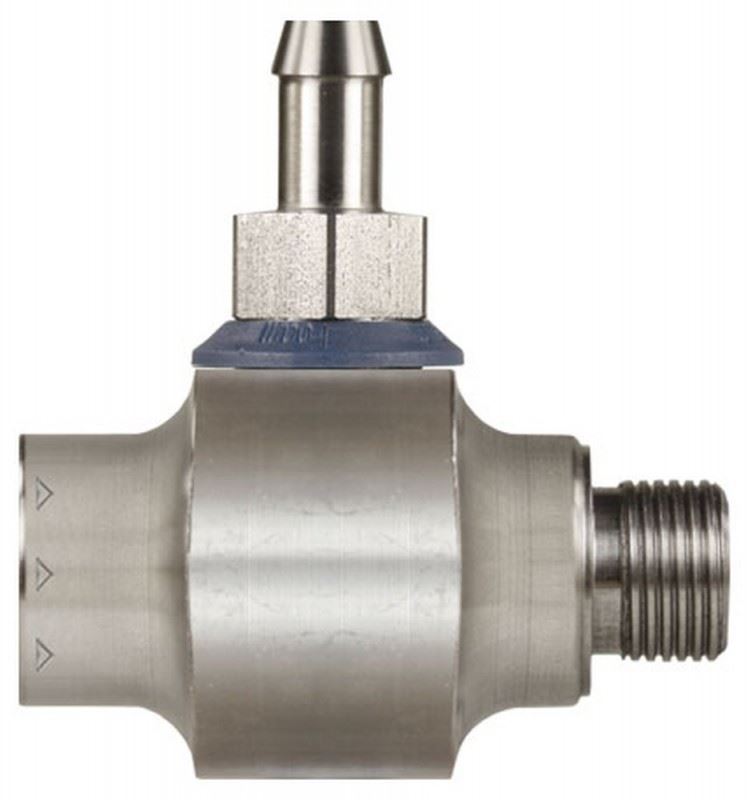

Suttner ST-160 Stainless Steel Single Chemical Injector w/9 Metering / Dosing Nozzles, #6.0, 5000 PSI, 3/8" F x 3/8” M

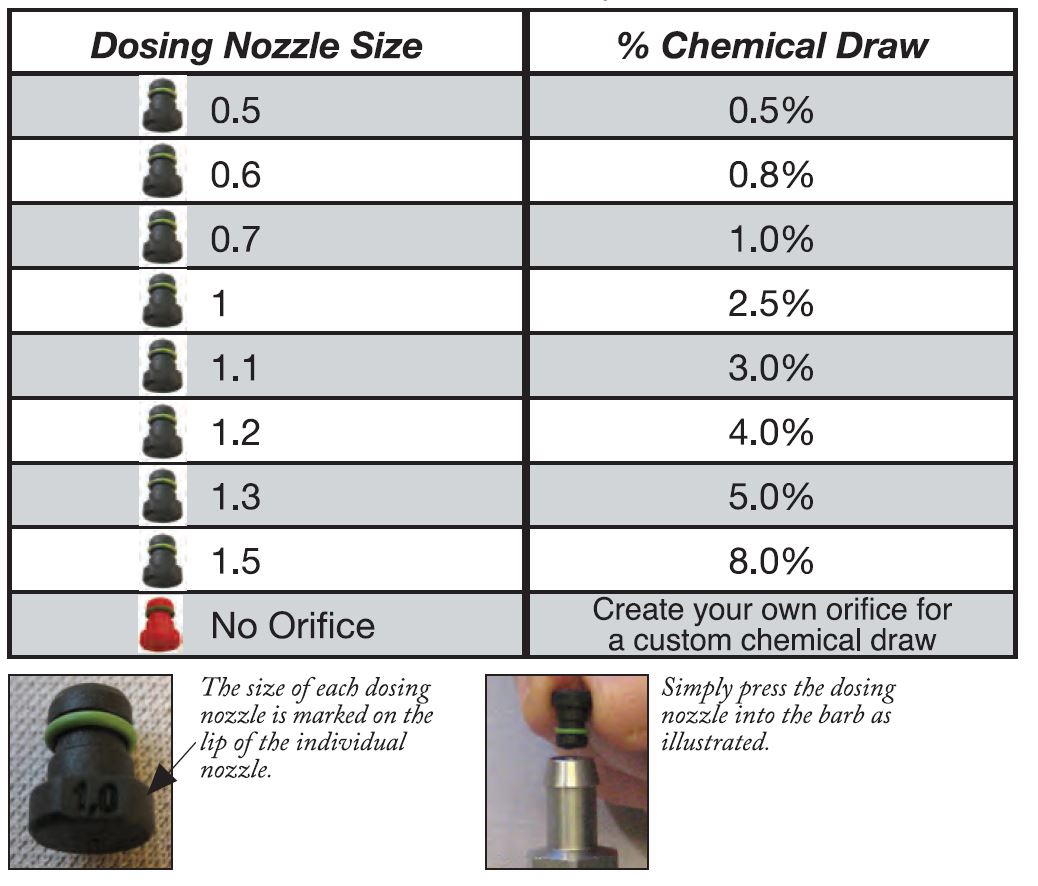

Features• Food grade quality and specifications• Durable Stainless Steel housing• 9 Metering / dosing nozzles included (See 2nd picture)• Uses .35" I.D. Hose
Specifications • Nozzle/Orifice Size: 6.0• Max Flow Rate: 18 GPM• Min Flow Rate: 1 GPM • Max Pressure: 5,000 PSI• Min Pressure: 1,000 PSI• Max Temp: 194° F.• Inlet: 3/8” Female• Outlet: 3/8” Male• Hose Barb: .35” ID hose• Weight: 0.71 lb
Please use Nozzle Chart to determine proper nozzle size
Note: If between sizes, choose the larger nozzle size
Nozzle Chart
See the ST-160 System Diagram below to determine the foam components needed
ST-160 System Diagram
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Suttner ST-10 Nozzle Protector 1/4" F Black & Blue
Features• 2-Component nozzle protector ST-10• The ST-10 is the ideal combination made out of hard and soft plastics• The nozzle protector is suitable for cold and hot water applications in the car wash, agriculture and food industry• The ST-10 is unimpeachable, protects your nozzles and preserves the surfaces to be cleaned at the same time
Specifications • Suitable for nozzles 1/4" M NPT• Material: Plastic / Zinc-plated steel• Color: Black / blue• Max PSI: 5,800• Max Temp: 300° F.• Inlet:: 1/4" Female NPT• Outlet: 1/4" Female NPT• Note: 1/4” MPT Nozzle not included• Weight: 0.10 lbs
Suttner ST-72 Stainless Steel 23.5” Vented Grip Foam Lance with #2.0 mm (Green) Air Injector Nozzle and 1/4" M Inlet. In conjunction with a spray gun and Suttner foam injector, allows cleaning agents or disinfectants to be applied evenly over a large surface. Stainless steel construction
Features• Thick foam is produced when air flows through vented injector housing and mixes with water and chemical stream• Wet foam allows more efficient use of chemical• More durable than conventional foamers
Specifications • Air Injector Nozzle Size: 2.0 mm (Green)• Max Pressure: 3,625 PSI • Length: 23.5”• Max Temp: 176° F.• Inlet: 1/4" Male• Note: Suttner ST-160, ST-160M or St-164 Chemical or Foam injector required and is not included• Weight: 1.95 lb
Please use Nozzle Chart to determine proper Spray Nozzle Size
Use Spray Nozzle Size and Foam Lance Chart to determine correct Air Injector Nozzle Size to use
Foam Lance Chart
JE Adams 7375 Maxi-Flow Stainless Steel Check Valve - 1/4 FPT x 1/4 FPT – 5,000 PSI
Features• Maxi-Flow Check Valves used in applications where back flow is not permitted• Can be used in air or fluid applications• Install valve so that flow is in the direction of the arrow on the part
Specifications• Maximum Pressure: 5,000 PSI• Maximum Flow Rate: 4.0 GPM• Maximum Temperature: 200° F• Material: Stainless steel• Inlet: 1/4" FPT• Outlet: 1/4" FPT• Size: 2.3”• Weight: 4.0 oz
Suttner ST-175 Stainless Steel 24” Foam & Rinse Lance 5,000 PSI with 1/4" F Inlet. Switch from foam to rinse by turning the valve that’s conveniently within hands reach
Features• The change-over lance ST-175 Foam & Clean is the ideal accessory for Suttner's foam injector line. The innovative change-over technology allows to direct the full flow into either one or the other outlet pipe just by turning the hand wheel at the inlet• In one position of the hand wheel the flow is directed thru an ST-75 foam head for foaming. After changing over the full flow is directed thru the other pipe and a regular spray nozzle for rinsing• Appropriate nozzle sizing at chemical injector and ST-175 allows changing from foaming to rinsing right at the lance. ST -175 Foam & Clean is compatible to ST-160 / ST-160M / ST-164 / ST-166 / ST-167• Due to ST-175's changeable air injector nozzles the lance can be driven with all pressure washers with flow rates from 1 to 6 GPM. Nozzles with integrated jet former are required
ST-175 Foam & Rinse Lance on YouTube
Specifications • Flow Rate: 1.0 – 6.0 GPM • Max Pressure: 5,000 PSI • Length: 24.0”• Max Temp: 140° F.• Inlet: 1/4" Female NPT• Outlet (Foam): ST-75 Foam head (Air Injector Nozzle not included)• Outlet (Rinse): 1/4" FPT with nozzle protector (1/4” MPT high pressure nozzle not included)• Note: Suttner ST-160, ST-160M or St-164 Chemical or Foam injector, air injector nozzle and 1/4" MPT nozzle required and are not included• Weight: 2.70 lb
Please use Nozzle Chart to determine proper spray nozzle size
Use Spray Nozzle Size and Foam Nozzle Chart to determine correct Air Injector Nozzle to use
Foam Nozzle Chart
