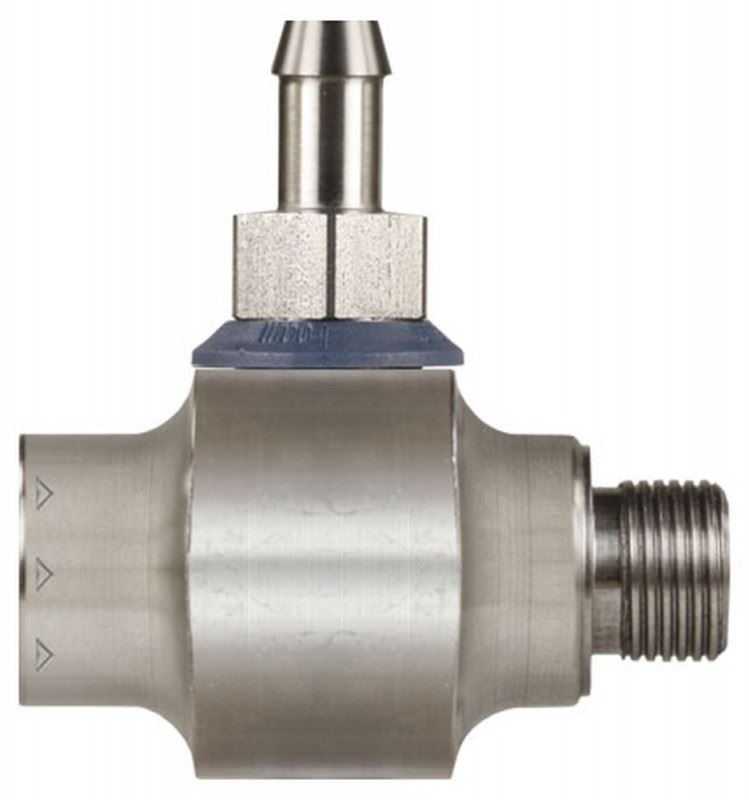

Suttner ST-160 Stainless Steel Single Chemical Injector w/9 Metering / Dosing Nozzles, #7.0, 5000 PSI, 3/8" F x 3/8” M
Features• Food grade quality and specifications• Durable Stainless Steel housing• 9 Metering / dosing nozzles included (See 2nd picture)• Uses .35" I.D. Hose
Specifications • Nozzle/Orifice Size: 7.0• Max Flow Rate: 18 GPM• Min Flow Rate: 1 GPM • Max Pressure: 5,000 PSI• Min Pressure: 1,000 PSI• Max Temp: 194° F.• Inlet: 3/8” Female• Outlet: 3/8” Male• Hose Barb: .35” ID hose• Weight: 0.71 lb
Please use Nozzle Chart to determine proper nozzle size
Note: If between sizes, choose the larger nozzle size

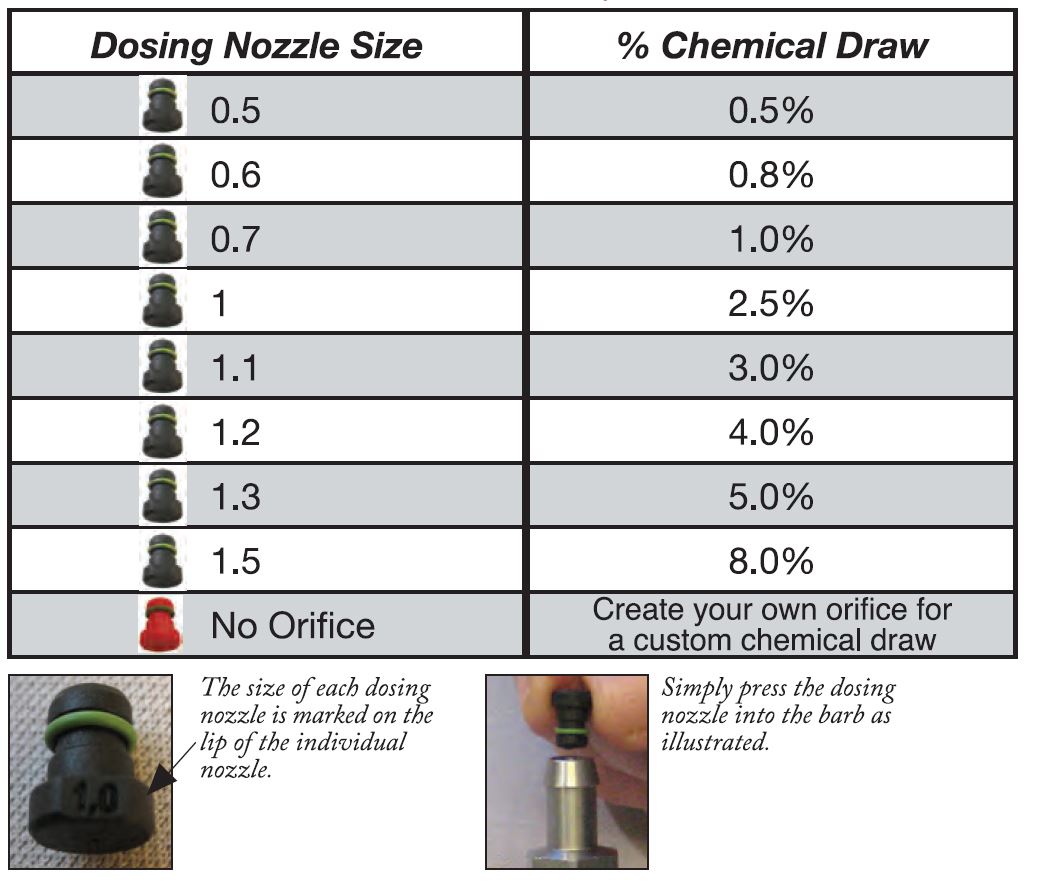

Nozzle Chart
See the ST-160 System Diagram below to determine the foam components needed
ST-160 System Diagram
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump D11009 Quick Disconnect Coupler Plug Hardened Steel Zinc Plated 3/8” x 3/8" NPT-M 4,000 PSI
Features: • Quick disconnect design• Hardened Steel Zinc Plated
Specifications: • Quick Disconnect Coupler: Plug• Body Material: Hardened Steel• Plug Size: 3/8"• Thread: 3/8” NPT-M• Max Temp: 175°• Max Operating Pressure: 4,000 PSI• Replaces QCP2MS• Weight: 0.10 lb
Suttner ST-10 Nozzle Protector 1/4" F Black & Blue
Features• 2-Component nozzle protector ST-10• The ST-10 is the ideal combination made out of hard and soft plastics• The nozzle protector is suitable for cold and hot water applications in the car wash, agriculture and food industry• The ST-10 is unimpeachable, protects your nozzles and preserves the surfaces to be cleaned at the same time
Specifications • Suitable for nozzles 1/4" M NPT• Material: Plastic / Zinc-plated steel• Color: Black / blue• Max PSI: 5,800• Max Temp: 300° F.• Inlet:: 1/4" Female NPT• Outlet: 1/4" Female NPT• Note: 1/4” MPT Nozzle not included• Weight: 0.10 lbs
General Pump D10003 Quick Disconnect Coupler Socket Brass 3/8” x 3/8" NPT-F 4,000 PSI
Features: • Quick disconnect design• Brass• EPDM O-Ring
Specifications: • Quick Disconnect Coupler: Socket• Body Material: Brass• Socket Size: 3/8"• Thread: 3/8” NPT-F• Max Temp: 175°• Max Operating Pressure: 4,000 PSI• Replaces QCS2FB• Weight: 0.20 lb
Mecline AL55 Easy Pull Trigger Gun. Designed with an easy pull trigger, this gun can be operated without high levels of fatigue or discomfort normally found in other high pressure guns
Features: • Anti-shock plastic shells• Ball and seat in stainless steel• Gun body in forged brass• Very easy for the assembly operation• Spring assisted trigger• Ergonomic hand grip• Minimum force required for trigger pulling• Safety lock red color
Specifications:• Permissible Pressure: 5,075 PSI• Rated Pressure: 4,500 PSI• Max Flow: 12.0 GPM• Max Temp: 320° F.• Inlet: 3/8" NPTF• Outlet: 1/4" NPTF• Replaces the AL36• Weight: 18.2 oz
