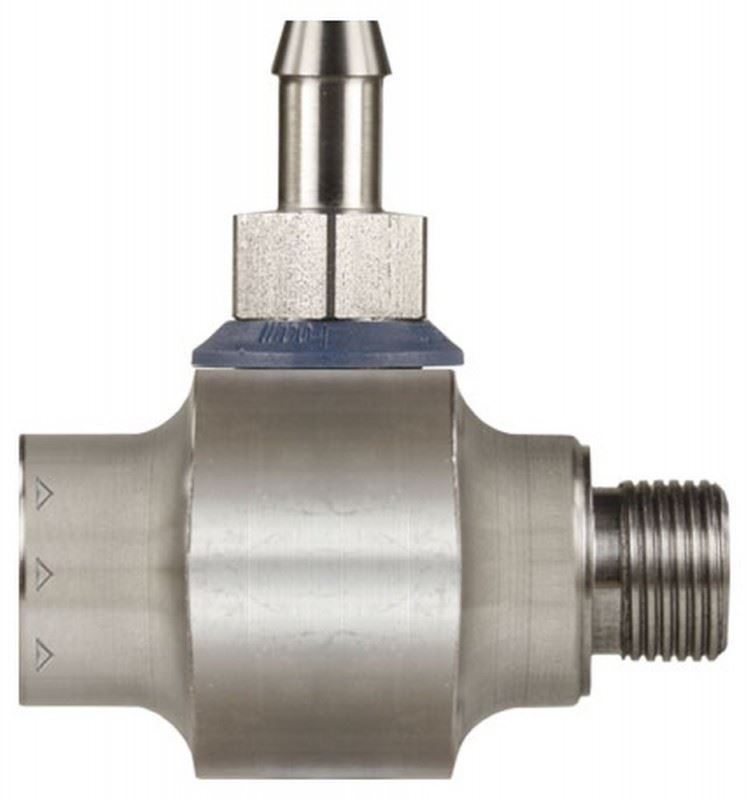

Suttner ST-160 Stainless Steel Single Chemical Injector w/9 Metering / Dosing Nozzles, #9.0, 5000 PSI, 3/8" F x 3/8” M
Features• Food grade quality and specifications• Durable Stainless Steel housing• 9 Metering / dosing nozzles included (See 2nd picture)• Uses .35" I.D. Hose
Specifications • Nozzle/Orifice Size: 9.0• Max Flow Rate: 18 GPM• Min Flow Rate: 1 GPM • Max Pressure: 5,000 PSI• Min Pressure: 1,000 PSI• Max Temp: 194° F.• Inlet: 3/8” Female• Outlet: 3/8” Male• Hose Barb: .35” ID hose• Weight: 0.71 lb
Please use Nozzle Chart to determine proper nozzle size
Note: If between sizes, choose the larger nozzle size

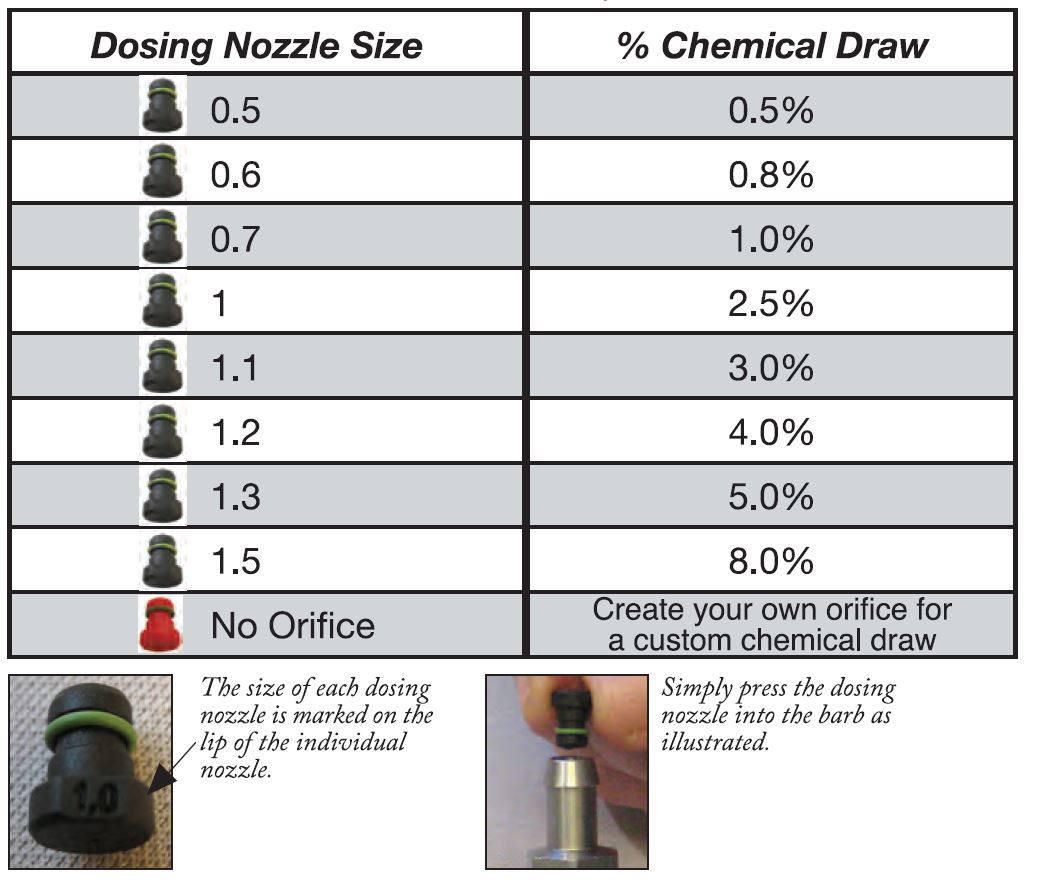

Nozzle Chart
See the ST-160 System Diagram below to determine the foam components needed
ST-160 System Diagram
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Suttner ST-357 Turbo / Rotating #4.5 Nozzle is rated for up to 3,625 PSI. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete, graffiti cleaning or caked on mud on heavy equipment
Features• Increases cleaning efficiency as much as 200%• The 0° rotation creates a cleaning and tearing action• Ideal for hard surfaces• Improved materials for longer life
Specifications • Nozzle Size # 4.5 • Max PSI: 3,625• Max Temp.: 190° F• Inlet: 1/4" Female NPT• NOTE: All rotating nozzles should be started pointing downward• Weight: 0.68 lbs
Suttner ST-357 Turbo / Rotating #9.0 Nozzle is rated for up to 3,625 PSI. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete, graffiti cleaning or caked on mud on heavy equipment
Specifications • Nozzle Size # 9.0 • Max PSI: 3,625• Max Temp.: 190° F• Inlet: 1/4" Female NPT• NOTE: All rotating nozzles should be started pointing downward• Weight: 0.68 lbs
Features• High Quality, German engineered components• Stainless steel material• Extends the life of your hose• Double PTFE slide rings for easy movement• Bearing material: PTFE• Axial and radial slide bearing
Specifications • Max Pressure: 5,000 PSI• Max Flow: 12 GPM• Max Temp: 300° F.• Inlet: 3/8" Male NPT• Outlet: 3/8" Female NPT• RPM: 30• Weight: 0.29 lb
Features:• High Quality, German engineered components• Comfort technology designed molded grip conforms to the curvature of the hand, allowing to comfortably change positions• Linear aeration provides continuous air flow between hand and exclusive Suttner "star-shaped" grip• Grip is directly molded on to lance providing protection and strength• Favorite molded grip lance design in the industry• Threads are rolled on providing consistent sealing and four times the strength than cut threads
Specifications:• Length: 48"• Pipe Material: Stainless steel• Grip: 19.25" Molded "star-shaped"• Inlet: 1/4” MNPT• Outlet: 1/4” MNPT• Maximum Pressure: 6,000 PSI• Max. Temp.: 300° F• Weight: 1.58 lbs.
