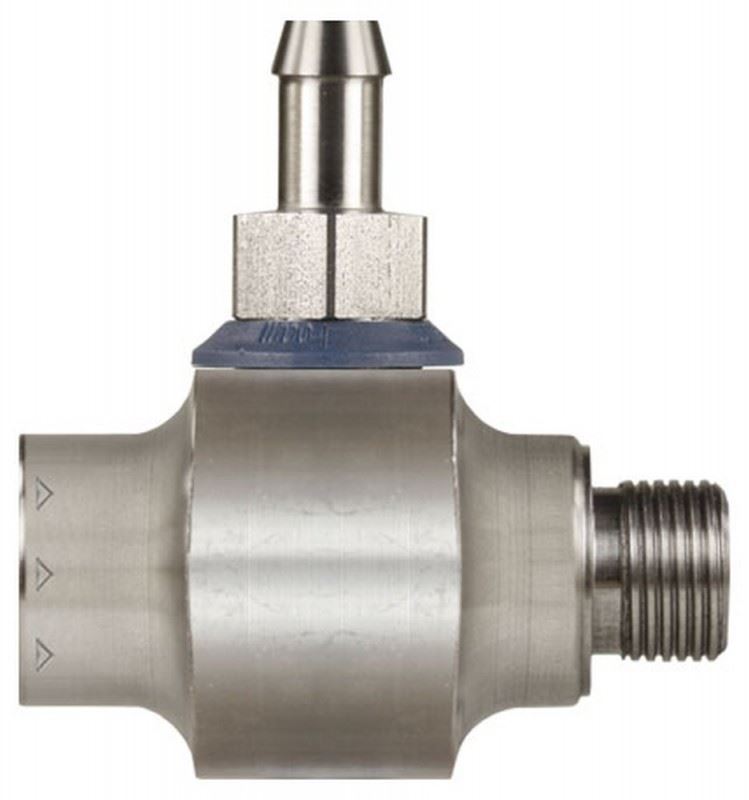

Suttner ST-160 Stainless Steel Single Chemical Injector w/9 Metering / Dosing Nozzles, #10.0, 5000 PSI, 3/8" F x 3/8” M
Features• Food grade quality and specifications• Durable Stainless Steel housing• 9 Metering / dosing nozzles included (See 2nd picture)• Uses .35" I.D. Hose
Specifications • Nozzle/Orifice Size: 10.0• Max Flow Rate: 18 GPM• Min Flow Rate: 1 GPM • Max Pressure: 5,000 PSI• Min Pressure: 1,000 PSI• Max Temp: 194° F.• Inlet: 3/8” Female• Outlet: 3/8” Male• Hose Barb: .35” ID hose• Weight: 0.71 lb
Please use Nozzle Chart to determine proper nozzle size
Note: If between sizes, choose the larger nozzle size

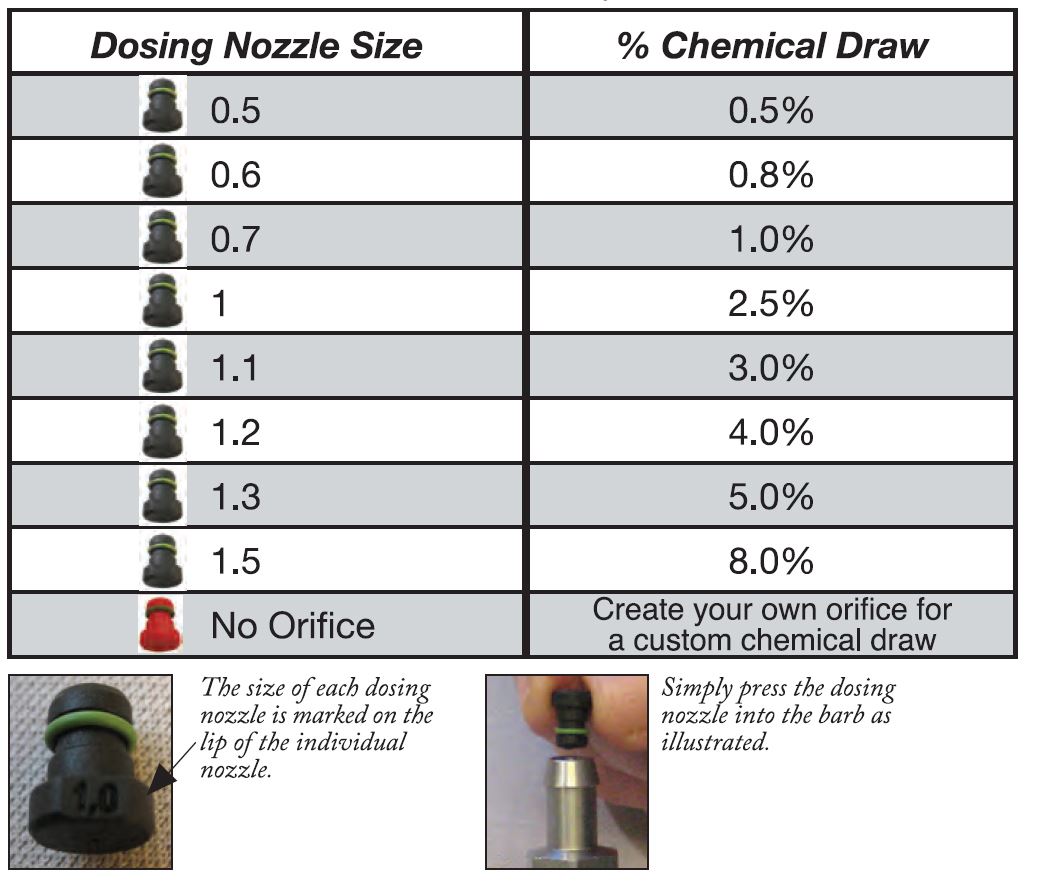

Nozzle Chart
See the ST-160 System Diagram below to determine the foam components needed
ST-160 System Diagram
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump D10072 Quick Disconnect Coupler Socket Stainless Steel 1/4” x 1/4" NPT-F 6,000 PSI
Features: • Quick disconnect design• 304 Stainless steel• EPDM O-Ring
Specifications: • Quick Disconnect Coupler: Socket• Body Material: 304 Stainless steel• Socket Size: 1/4"• Thread: 1/4” NPT-F• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCS1FSS• Weight: 0.13 lb
General Pump D10074 Quick Disconnect Coupler Socket Stainless Steel 3/8” x 3/8" NPT-F 5,000 PSI
Specifications: • Quick Disconnect Coupler: Socket• Body Material: 304 Stainless steel• Socket Size: 3/8"• Thread: 3/8” NPT-F• Max Temp: 175°• Max Operating Pressure: 5,000 PSI• Replaces QCS2FSS• Weight: 0.21 lb
General Pump D10076 Quick Disconnect Coupler Plug Stainless Steel 1/4” x 1/4" NPT-F 6,000 PSI
Features: • Quick disconnect design• 304 Stainless steel
Specifications: • Quick Disconnect Coupler: Plug• Body Material: 304 Stainless steel• Plug Size: 1/4"• Thread: 1/4” NPT-F• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCP1FSS• Weight: 0.06 lb
General Pump D10077 Quick Disconnect Coupler Plug Stainless Steel 1/4” x 1/4" NPT-M 6,000 PSI
Specifications: • Quick Disconnect Coupler: Plug• Body Material: 304 Stainless steel• Plug Size: 1/4"• Thread: 1/4” NPT-M• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCP1MSS• Weight: 0.06 lb
