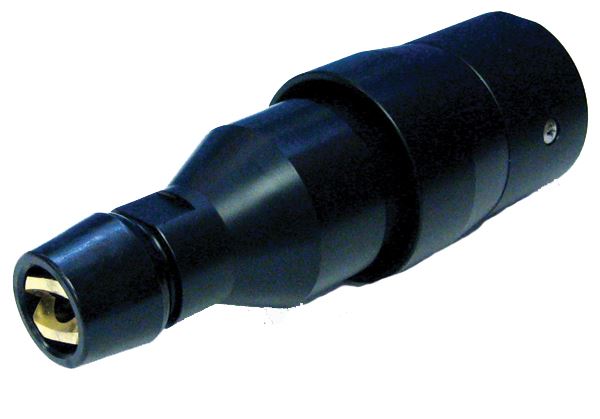

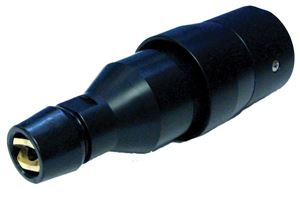

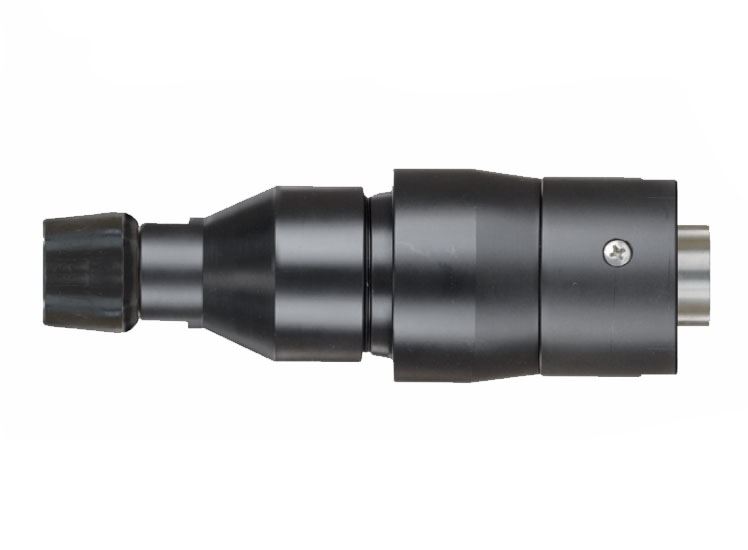

Suttner ST-76 Foam Blaster Head 3,625 PSI with #7.0 x 3 Air Injector Nozzles and 1/2" F Inlet. The foamblaster ST-76 is designed for applications in agriculture, industry, municipal cleaning and fire fighting technology. Designed for high volume applications
Features• The foam blaster ST-76 is made out of a premium combination of stainless steel and plastic• Starting with an inlet pressure of only 435 PSI the foam blaster ST-76 is able to foam mixtures of water and foam agents with a flow of 5.3 - 15.8 GPM and without the addition of compressed air • By means of exchangeable air injector nozzles it is possible to adapt the foam blaster ST-76 to the requirements such as water quantity and inlet pressure in an optimal way• Stainless steel injector nozzle• Wider spray angle• For applications 6 GPM or higher • Throws foam 40 feet• Cover large areas
ST-76 with ST-160 Chemical Injector on YouTube
Specifications • Air Injector Nozzles (3) Size: 7.0• Max Pressure: 3,625 PSI• Flow Rate: 5.3 – 15.8 GPM• Max Temp: 212° F.• Inlet: 1/2" Female• Note: Suttner ST-160, ST-160M or St-164 Chemical or Foam injector required and is not included• Weight: 1.15 lb
Please use Nozzle Chart to determine proper Spray Nozzle Size
Nozzle Chart
Use Spray Nozzle Size and Foam Nozzle Chart to determine correct Foam Nozzle to use
Foam Nozzle Chart
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump Replacement 1/2" EPDM Quick Disconnect Coupler O-Ring. EPDM is one of the most versatile and durable rubbers available, providing outstanding heat, weather, and ozone resistancee
Specifications • Fits all standard 1/2" quick disconnect couplers• Material: EPDM• Max. Temperature: 250° F• Color: Brown
General Pump D10091 Quick Disconnect Coupler Socket Stainless Steel 1/2” x 1/2" NPT-M 5,000 PSI
Features: • Quick disconnect design• 304 Stainless steel• EPDM O-Ring
Specifications: • Quick Disconnect Coupler: Socket• Body Material: 304 Stainless steel• Socket Size: 1/2"• Thread: 1/2” NPT-M• Max Temp: 175°• Max Operating Pressure: 5,000 PSI• Replaces QCS3MSS• Weight: 0.30 lb
General Pump D10093 Quick Disconnect Coupler Plug Stainless Steel 1/2” x 1/2" NPT-M 6,000 PSI
Features: • Quick disconnect design• 304 Stainless steel
Specifications: • Quick Disconnect Coupler: Plug• Body Material: 304 Stainless steel• Plug Size: 1/2"• Thread: 1/2” NPT-M• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCP3MSS• Weight: 0.15 lb
General Pump D10090 Quick Disconnect Coupler Socket Stainless Steel 1/2” x 1/2" NPT-F 5,000 PSI
Specifications: • Quick Disconnect Coupler: Socket• Body Material: 304 Stainless steel• Socket Size: 1/2"• Thread: 1/2” NPT-F• Max Temp: 175°• Max Operating Pressure: 5,000 PSI• Replaces QCS3FSS• Weight: 0.35 lb
