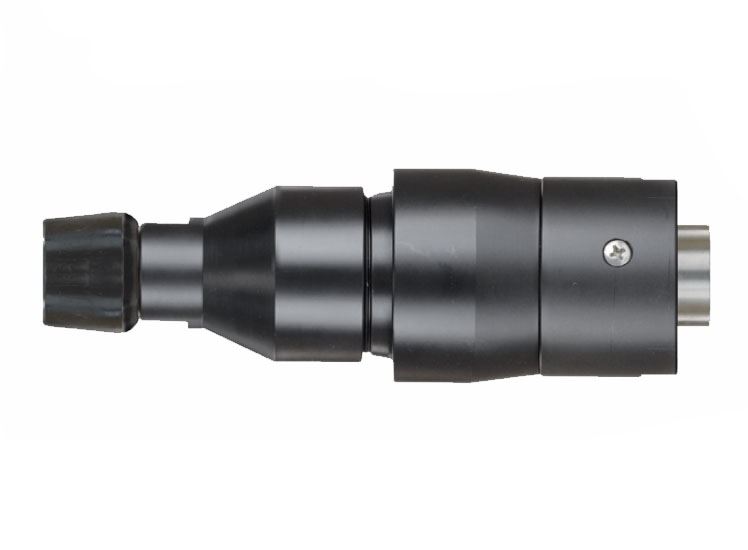

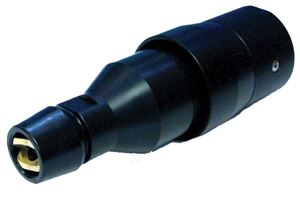

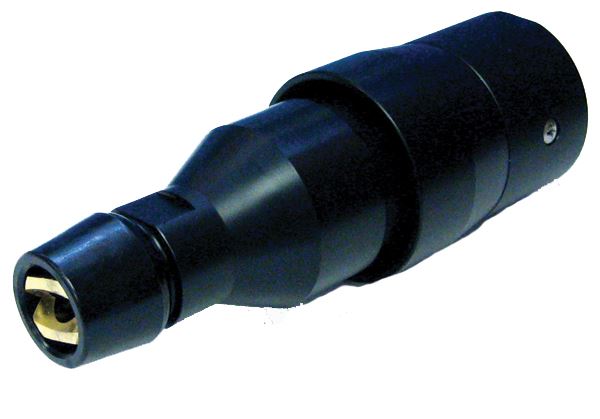

Suttner ST-76 Foam Blaster Head 3,625 PSI with #10.0 x 3 Air Injector Nozzles and 1/2" F Inlet. The foamblaster ST-76 is designed for applications in agriculture, industry, municipal cleaning and fire fighting technology. Designed for high volume applications
Features• The foam blaster ST-76 is made out of a premium combination of stainless steel and plastic• Starting with an inlet pressure of only 435 PSI the foam blaster ST-76 is able to foam mixtures of water and foam agents with a flow of 5.3 - 15.8 GPM and without the addition of compressed air • By means of exchangeable air injector nozzles it is possible to adapt the foam blaster ST-76 to the requirements such as water quantity and inlet pressure in an optimal way• Stainless steel injector nozzle• Wider spray angle• For applications 6 GPM or higher • Throws foam 40 feet• Cover large areas
ST-76 with ST-160 Chemical Injector on YouTube
Specifications • Air Injector Nozzles (3) Size: 10.0• Max Pressure: 3,625 PSI• Flow Rate: 5.3 – 15.8 GPM• Max Temp: 212° F.• Inlet: 1/2" Female• Note: Suttner ST-160, ST-160M or St-164 Chemical or Foam injector required and is not included• Weight: 1.15 lb
Please use Nozzle Chart to determine proper Spray Nozzle Size
Nozzle Chart
Use Spray Nozzle Size and Foam Nozzle Chart to determine correct Foam Nozzle to use
Foam Nozzle Chart
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Suttner ST-357 Turbo / Rotating #4.5 Nozzle is rated for up to 3,625 PSI. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete, graffiti cleaning or caked on mud on heavy equipment
Features• Increases cleaning efficiency as much as 200%• The 0° rotation creates a cleaning and tearing action• Ideal for hard surfaces• Improved materials for longer life
Specifications • Nozzle Size # 4.5 • Max PSI: 3,625• Max Temp.: 190° F• Inlet: 1/4" Female NPT• NOTE: All rotating nozzles should be started pointing downward• Weight: 0.68 lbs
Please use Nozzle Chart to determine proper nozzle size
Suttner ST-357 Turbo / Rotating #9.0 Nozzle is rated for up to 3,625 PSI. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete, graffiti cleaning or caked on mud on heavy equipment
Specifications • Nozzle Size # 9.0 • Max PSI: 3,625• Max Temp.: 190° F• Inlet: 1/4" Female NPT• NOTE: All rotating nozzles should be started pointing downward• Weight: 0.68 lbs
Features• High Quality, German engineered components• Stainless steel material• Extends the life of your hose• Double PTFE slide rings for easy movement• Bearing material: PTFE• Axial and radial slide bearing
Specifications • Max Pressure: 5,000 PSI• Max Flow: 12 GPM• Max Temp: 300° F.• Inlet: 3/8" Male NPT• Outlet: 3/8" Female NPT• RPM: 30• Weight: 0.29 lb
Features:• High Quality, German engineered components• Comfort technology designed molded grip conforms to the curvature of the hand, allowing to comfortably change positions• Linear aeration provides continuous air flow between hand and exclusive Suttner "star-shaped" grip• Grip is directly molded on to lance providing protection and strength• Favorite molded grip lance design in the industry• Threads are rolled on providing consistent sealing and four times the strength than cut threads
Specifications:• Length: 48"• Pipe Material: Stainless steel• Grip: 19.25" Molded "star-shaped"• Inlet: 1/4” MNPT• Outlet: 1/4” MNPT• Maximum Pressure: 6,000 PSI• Max. Temp.: 300° F• Weight: 1.58 lbs.
