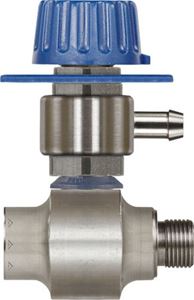

Suttner ST-160M Stainless Steel Single Chemical Injector w/Metering Valve, #3.5, 5000 Psi, 3/8" F x 3/8” M
Features• Food grade quality and specifications• Stainless steel construction• Conserves chemicals• Locks in position for accurate metering• Multiple metering positions
Specifications • Nozzle/Orifice Size: 3.5• Max Flow Rate: 21 GPM• Min Flow Rate: 1 GPM • Max Pressure: 5,000 PSI• Min Pressure: 1,000 PSI• Max Temp: 194° F.• Inlet: 3/8” Female• Outlet: 3/8” Male• Hose Barb: .35” ID hose• Weight: 1.25 lb
Please use Nozzle Chart to determine proper nozzle size
Note: If between sizes, choose the larger nozzle size
Nozzle Chart
See the ST-160M System Diagram below to determine the foam components needed
ST-160M System Diagram
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Suttner ST-75S Stainless Steel Food Grade Head 4,000 PSI with #13.0 Air Injector Nozzle and 1/4" F Inlet. The ST-75 produces thick foam for an easy and safe application and to save on chemical usage by reducing splash and drift of chemicals
Features• By means of the foam head ST-75S different foam applications are possible as the air injector nozzle is easily exchangeable and adaptable• The flat spray nozzle can be infinitely adapted from the vertical position to the horizontal one• The maximum flow is dependent on the chosen nozzle size• By means of the integrated air injector in the foam head the air is sucked in on the face side• Independent of the length of the lance a constant foam quality is guaranteed• The spraying result is especially even as a high quality foam nozzle insert is used• With stainless steel "wool" like foam pad• Food grade
ST-75S Foam Nozzle on YouTube
ST-75 with ST-160 Chemical Injector on YouTube
Specifications • Air Injector Nozzle Size: 13.0• Max Pressure: 4,000 PSI• Flow Rate: 1 - 6 GPM• Max Temp: 212° F.• Inlet: 1/4" Female• Note: Suttner ST-160, ST-160M or St-164 Chemical or Foam injector required and is not included• Weight: 0.31 lb
Please use Nozzle Chart to determine proper Spray Nozzle Size
Use Spray Nozzle Size and Foam Nozzle Chart to determine correct Foam Nozzle to use
Foam Nozzle Chart
Suttner 38” ST-54.2 Stainless Steel Dual Lance 5,800 PSI With Brass Soap Nozzle and Nozzle Protectors. For use when high and low pressures are needed. For example, spraying cleaning agents with low pressure through an injector valve (chemical injector required) and then cleaning with high pressure
Features• The serious high pressure spray contractors choice• High Quality, German engineered components• Stainless steel construction• Features our comfortable ergonomic shaped cool & compact molded grip resistant to heat• Suitable for corrosive chemicals• Ergonomic side handle for easy Hi/Low pressure adjustment• Premium dual-purpose lance that adds extreme versatility to your cleaning tools and accessories• Lance is equipped with 65° x #30 low pressure brass soap nozzle• Nozzle protectors included • Optional stainless steel soap nozzle available
Specifications • Max Pressure: 5,800 PSI• Length: 38.5”• Max Temp: 302° F. • Lance & Valve Material: Stainless steel• Inlet: 1/4" Male NPT• Outlets: 1/4" Female NPT x 1/4” Soap Nozzle• Note: 1/4” MPT Nozzle not included• Weight: 3.20 lb
