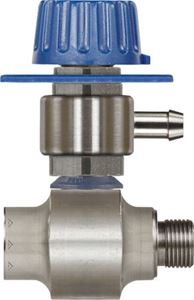

Suttner ST-160M Stainless Steel Single Chemical Injector w/Metering Valve, #9.0, 5000 Psi, 3/8" F x 3/8” M
Features• Food grade quality and specifications• Stainless steel construction• Conserves chemicals• Locks in position for accurate metering• Multiple metering positions
Specifications • Nozzle/Orifice Size: 9.0• Max Flow Rate: 21 GPM• Min Flow Rate: 1 GPM • Max Pressure: 5,000 PSI• Min Pressure: 1,000 PSI• Max Temp: 194° F.• Inlet: 3/8” Female• Outlet: 3/8” Male• Hose Barb: .35” ID hose• Weight: 1.25 lb
Please use Nozzle Chart to determine proper nozzle size
Note: If between sizes, choose the larger nozzle size
Nozzle Chart
See the ST-160M System Diagram below to determine the foam components needed
ST-160M System Diagram
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Suttner ST-510 Poly Chemical Spray Gun 18.5 GPM, 365 PSI, 1/2" FPT
Features• High Quality, German engineered components• Reinforced polypropylene will withstand the harshest chemicals• Gun with stainless steel V4A / AISI 316 ball being resistant to chemicals• Ideal gun for use in soft wash applications
Specifications • Max Pressure: 365 PSI• Max Flow: 18.5 GPM• Inlet: 1/2" Female NPT• Outlet: 1/2" Female NPT• UDOR # 15.0003.13• Weight: 0.30 lb
Features• High Quality, German engineered components• Stainless steel material• Extends the life of your hose• Double PTFE slide rings for easy movement• Bearing material: PTFE• Axial and radial slide bearing
Specifications • Max Pressure: 5,000 PSI• Max Flow: 12 GPM• Max Temp: 300° F.• Inlet: 3/8" Male NPT• Outlet: 3/8" Female NPT• RPM: 30• Weight: 0.29 lb
Features• High Quality, German engineered components• The Relax-Action™, German Engineered Technology reduces trigger pulling force by 40% and holding force up to 90% compared to usual competitors spray gun• Relax-Action™ is designed for operators and applications with longer periods of cleaning time• Stainless Steel Housing• Ceramic ball together with a seal kit made out of stainless steel• Food Grade
Specifications • Max Pressure: 5,000 PSI• Max Flow: 12.0 GPM• Max Temp: 300° F.• Inlet: 3/8" Female NPT• Outlet: 1/4" Female NPT• Weight: 1.25 lb
