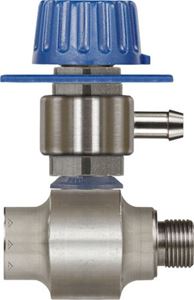

Suttner ST-160M Stainless Steel Single Chemical Injector w/Metering Valve, #11.0, 5000 Psi, 3/8" F x 3/8” M
Features• Food grade quality and specifications• Stainless steel construction• Conserves chemicals• Locks in position for accurate metering• Multiple metering positions
Specifications • Nozzle/Orifice Size: 11.0• Max Flow Rate: 21 GPM• Min Flow Rate: 1 GPM • Max Pressure: 5,000 PSI• Min Pressure: 1,000 PSI• Max Temp: 194° F.• Inlet: 3/8” Female• Outlet: 3/8” Male• Hose Barb: .35” ID hose• Weight: 1.25 lb
Please use Nozzle Chart to determine proper nozzle size
Note: If between sizes, choose the larger nozzle size
Nozzle Chart
See the ST-160M System Diagram below to determine the foam components needed
ST-160M System Diagram
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump 25° x #3.0 M-Style Spray Nozzle 1/4” NPT-M
Features• 5,000 PSI operating pressure• Made in the USA• General Pump High Pressure Spray Tips feature a two piece design• Inserts are through hardened and pressed into a 303 stainless steel rust-resistant body for improved durability• The contour control nozzle chamber eliminates the need for flow straighteners • Resistant to most chemical• Laser marked for clarity and durability
Specifications• Tip Angle: 25°• Nozzle Size: 3.0• Operating Pressure: 5,000 PSI• Connection: 1/4” NPT-M• Weight: 0.05 oz
Suttner St-007 12” Nickel Chrome Plated Steel 6,000 PSI Lance with Molded Grip. Suitable when using corrosive chemical. Suttner’s most popular lances for cold or hot water applications
Features:• High Quality, German engineered components• Comfort technology designed molded grip conforms to the curvature of the hand, allowing to comfortably change positions and work longer hours• Linear aeration provides continuous air flow between hand and exclusive Suttner "star-shaped" grip• Grip is directly molded on to lance providing protection and strength• Threads are rolled on providing consistent sealing and four times the strength than cut threads
Specifications:• Length: 12"• Pipe Material: Nickel chrome plated steel• Grip: 11" Molded "star-shaped"• Inlet: 1/4” MNPT• Outlet: 1/4” MNPT• Maximum Pressure: 6,000 PSI• Max. Temp.: 300° F• Weight: 0.65 lbs.
Features• High Quality, German engineered components• Ceramic ball in valve is highly resistant against nearly all soaps and acids • Easy-Pull™ is designed for operators and applications with high-volume of trigger cycling• The Easy-Pull™, German Engineered Technology reduces trigger pulling force by 60% compared to usual competitors spray gun• Easiest opening and holding trigger, requires nearly half the effort of the other rear-entry guns• Proper spray angle for optimal positioning of pressure points • Forged brass housing for maximum strength
Specifications • Max Pressure: 5,000 PSI• Max Flow: 12.0 GPM• Max Temp: 300° F.• Inlet: 3/8" Female NPT• Outlet: 1/4" Female NPT• Weight: 1.30 lb
