Picture of Suttner ST-559 Stainless Steel #4.0 Turbo Nozzle 8,700 PSI

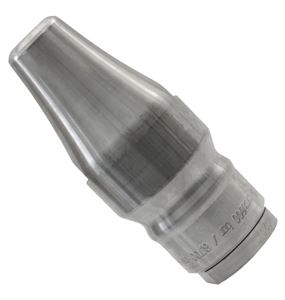

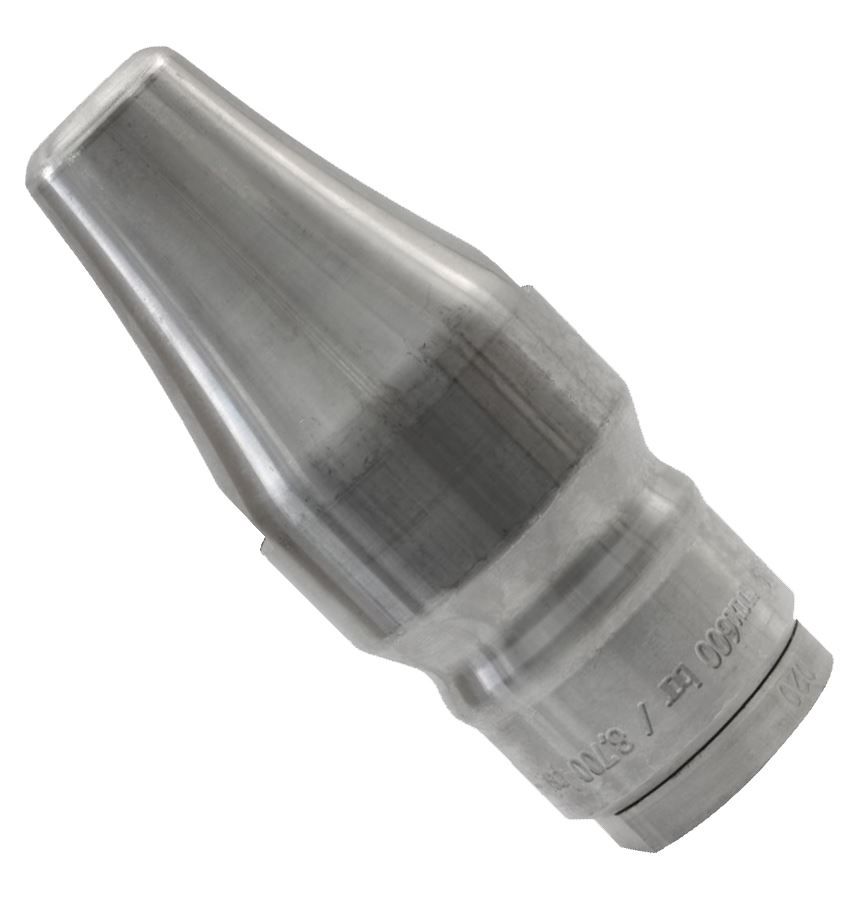

Suttner ST-559 Stainless Steel #4.0 Turbo Nozzle 8,700 PSI

SKU: 200559640

Brand: Suttner America

Only $333.51

ADD TO CART
QTY:
ADD TO WISHLIST
Customer Product Rating
Product Description


Suttner ST-559 Stainless Steel Turbo / Rotating #4.0 Nozzle. This Suttner rotating nozzle with Tungsten Carbide Nozzle & Seat is rated up to 8,700 PSI. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked mud on heavy equipment


Features
• Increases cleaning efficiency as much as 200%

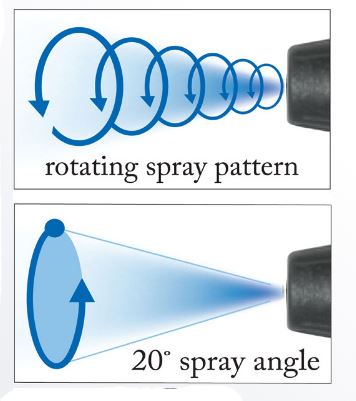

• The 0° rotation creates a cleaning and tearing action
• Ideal for hard surfaces
• Tungsten Carbide nozzle and sealing seat
• Improved materials for longer life


Specifications
• Nozzle Size # 4.0
• Max PSI: 8,700
• Max Temp.: 190° F
• Inlet: 1/4" Female NPT
• NOTE: All rotating nozzles should be started pointing downward
• Weight: 1.32 lbs


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart
