Features

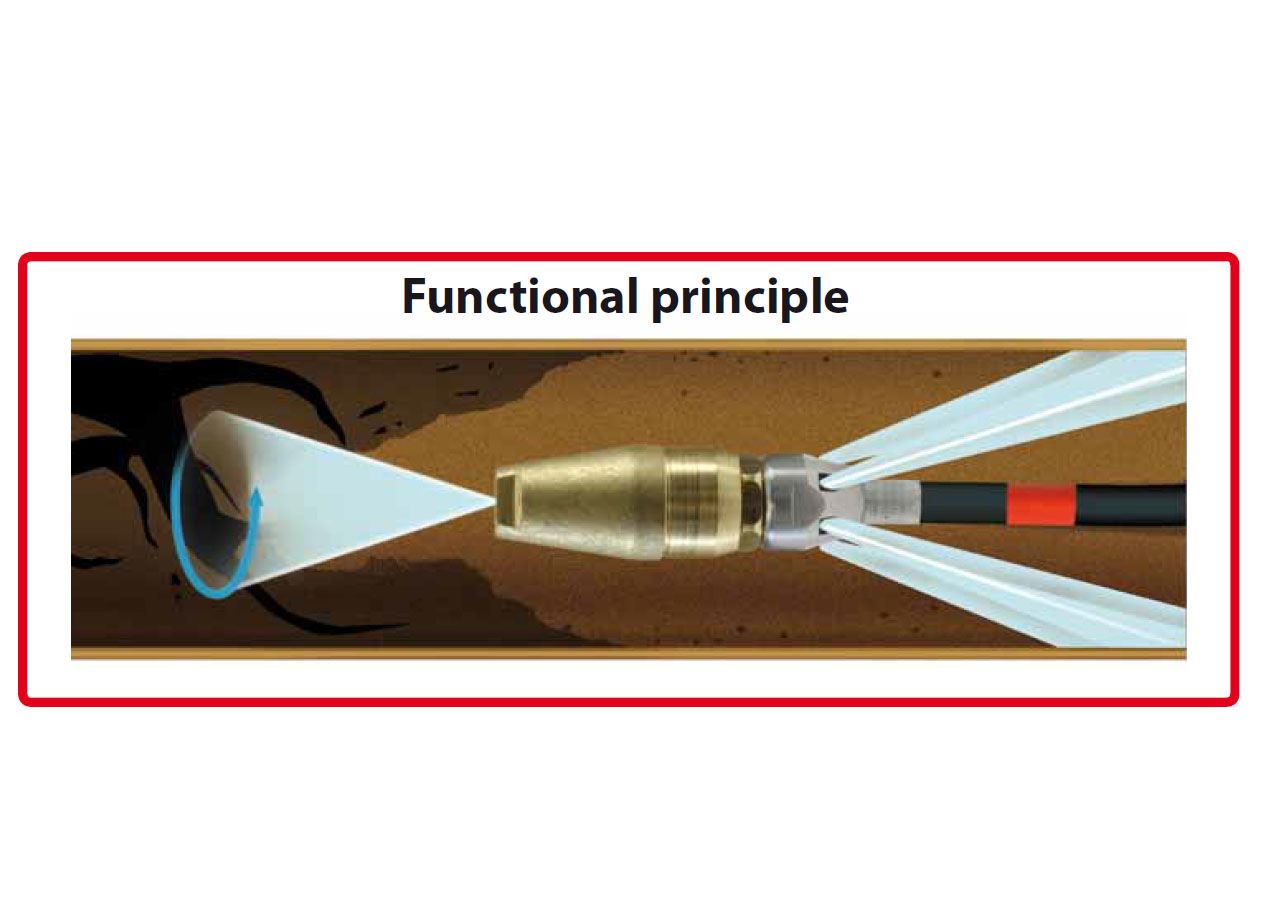

• Forward jet breaks up clogs & debris
• 3 Backward jets drive nozzle forward and flushes and removes debris from sides of line
• Corrosion resistant stainless steel construction

Specifications
• Inlet: 1/4” FPT
• Nozzle Size: # 4.5
• Material: Stainless steel
• Maximum Pressure: 4,200 PSI
• Max. Fluid Temperature: 300º F
• Weight: 0.6 oz.

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

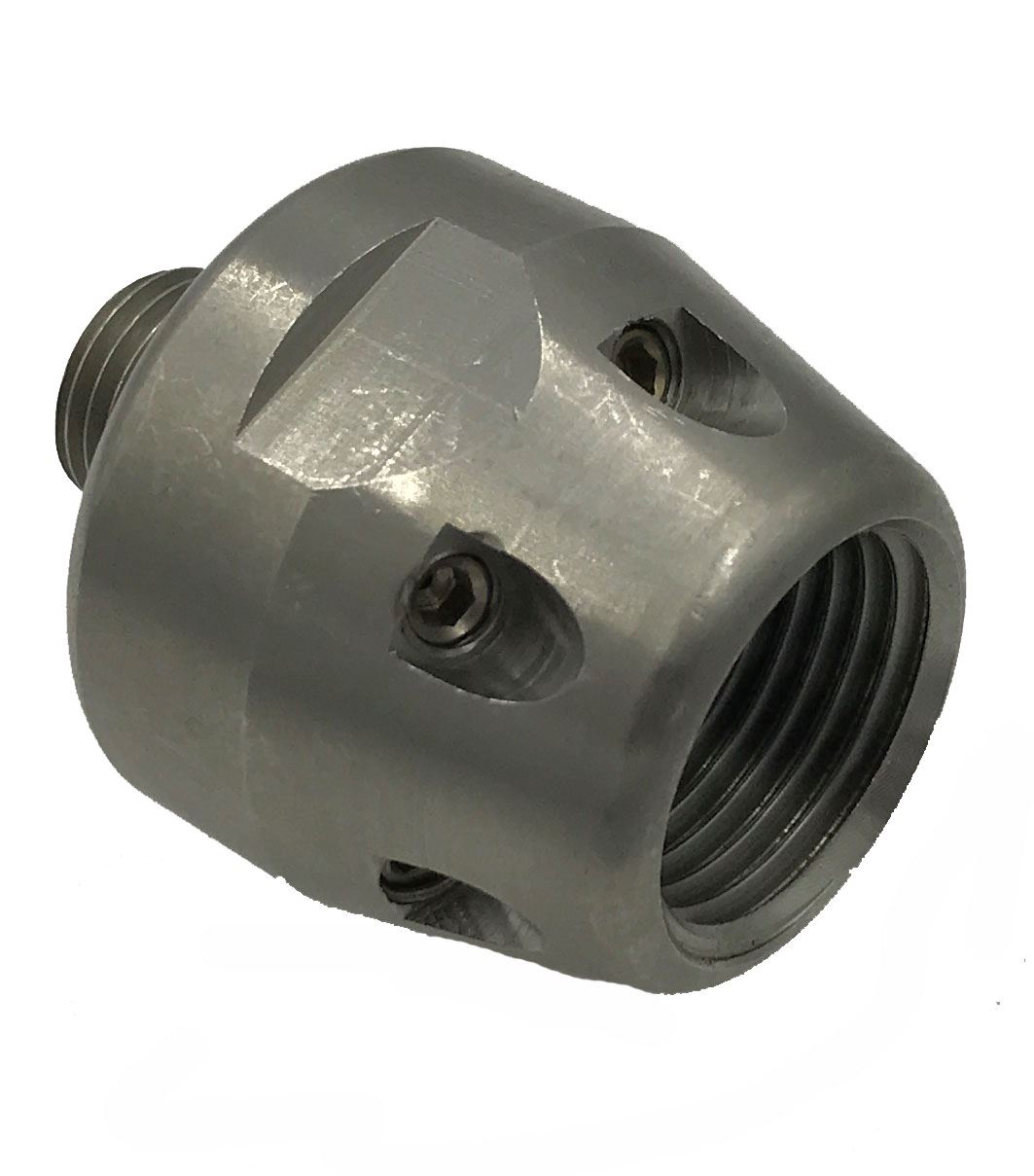

1/8” Suttner ST-49.3 Mini Stainless Steel Rotating Sewer Jetter Nozzle, # 7.0. Limited (or reduced) spinning speed for higher cleaning performance. Two radial jets hit the pipe wall directly with great impact, resulting in excellent cleaning capacity. Two strategically placed retracting jets provide cleaning energy as well as the thrust in one function, resulting in a low water consumption, while maximizing cleaning and flushing away the loosened residues. Housing and Rotor are hardened stainless steel parts with grinded contact surfaces for extended lifetime

Features
• High Quality, German engineered components
• 2 Rotating radial jets (90°) to the pipe wall for best cleaning results
• 2 Rotating rear jets (45°) for forward thrust and flushing away of the waste material
• Physically small for cornering ability
• Rated at 7300 PSI and 248° F

Specifications
• Inlet: 1/8” Female
• Nozzle Size: # 7.0
• 2 Side ports, 2 Backward, 0 Forward
• Material: Stainless steel
• Maximum Pressure: 7,300 PSI
• Max. Fluid Temperature: 248º F
• Outside Diameter (O.D.): 0.47”
• Length: 1.0”
• Weight: .05 lb

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Accutek® S1020-CB Steel Adapter 3/8 Female Pipe x 1/4 Male Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.

Specifications:
• Applications - Water, Oil, Air
• Working Pressure: 4,000 PSI
• Burst Pressure: 16,000 PSI
• Working Temperature: -65°F (-54°C) to 250°F (120°C)
• Pipe threads must be sealed using approved thread sealant
• Weight: 0.13 lbs

Features:
• Suitable for cold and hot water commercial pressure cleaning applications
• Reinforcement: One layer of high tensile braided steel – R1 Rating
• Cover: Wrapped finish with embossed lay line in grey “mark-less” cover color
• Burst (Minimum): 3:1 working pressure
• Impulse Life: 200,000+

Specifications:
• Hose Inner Diameter: 3/8" ID
• Length: 6’
• Working (Maximum): Up to 4,000 PSI
• Burst (Minimum): 12,000 PSI
• Color: Grey, “mark-less”
• Maximum Temperature: 250° F.
• Ends: 3/8" MPT (1 solid & 1 swivel)
• Weight 1.80 lbs
