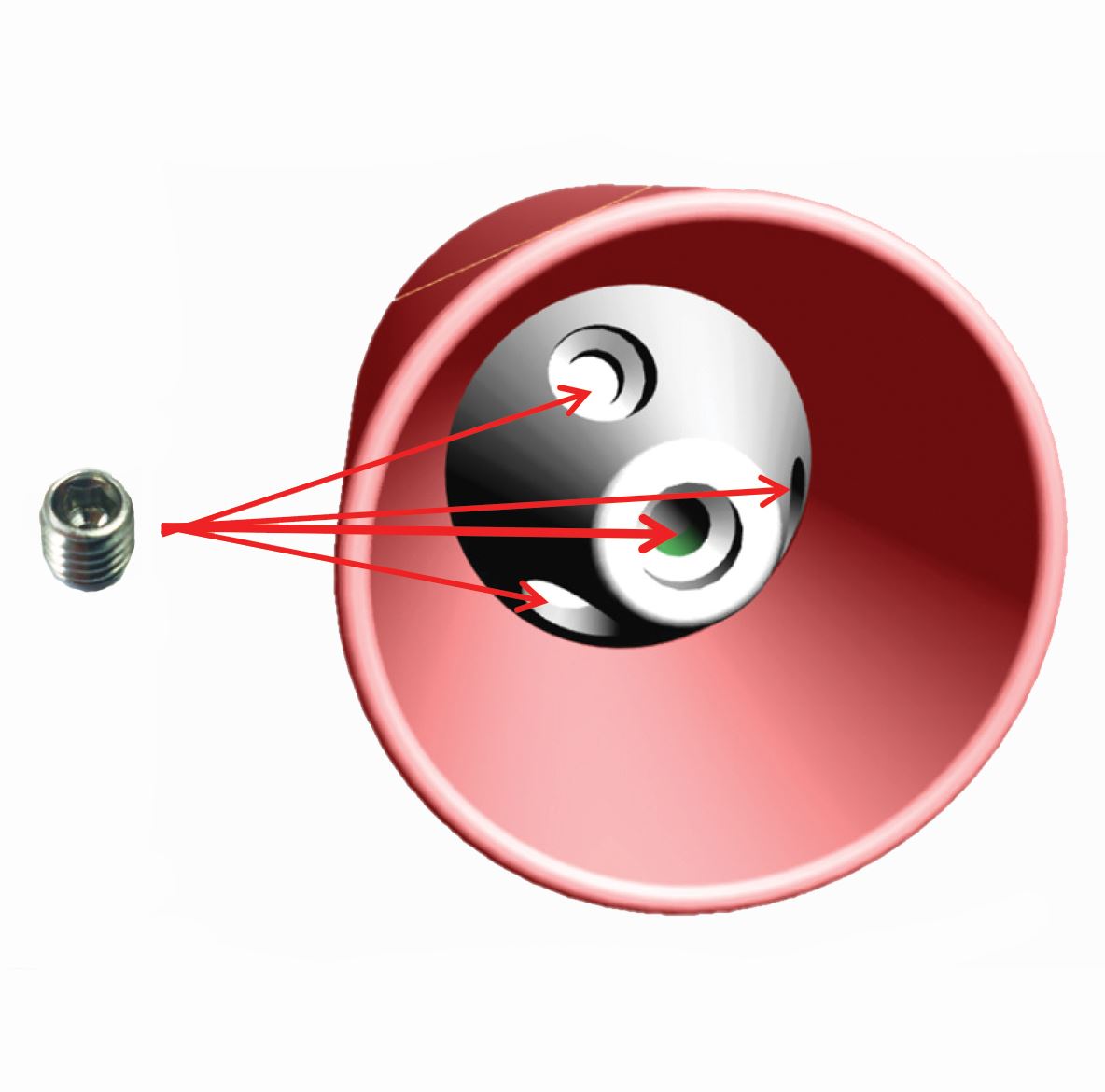

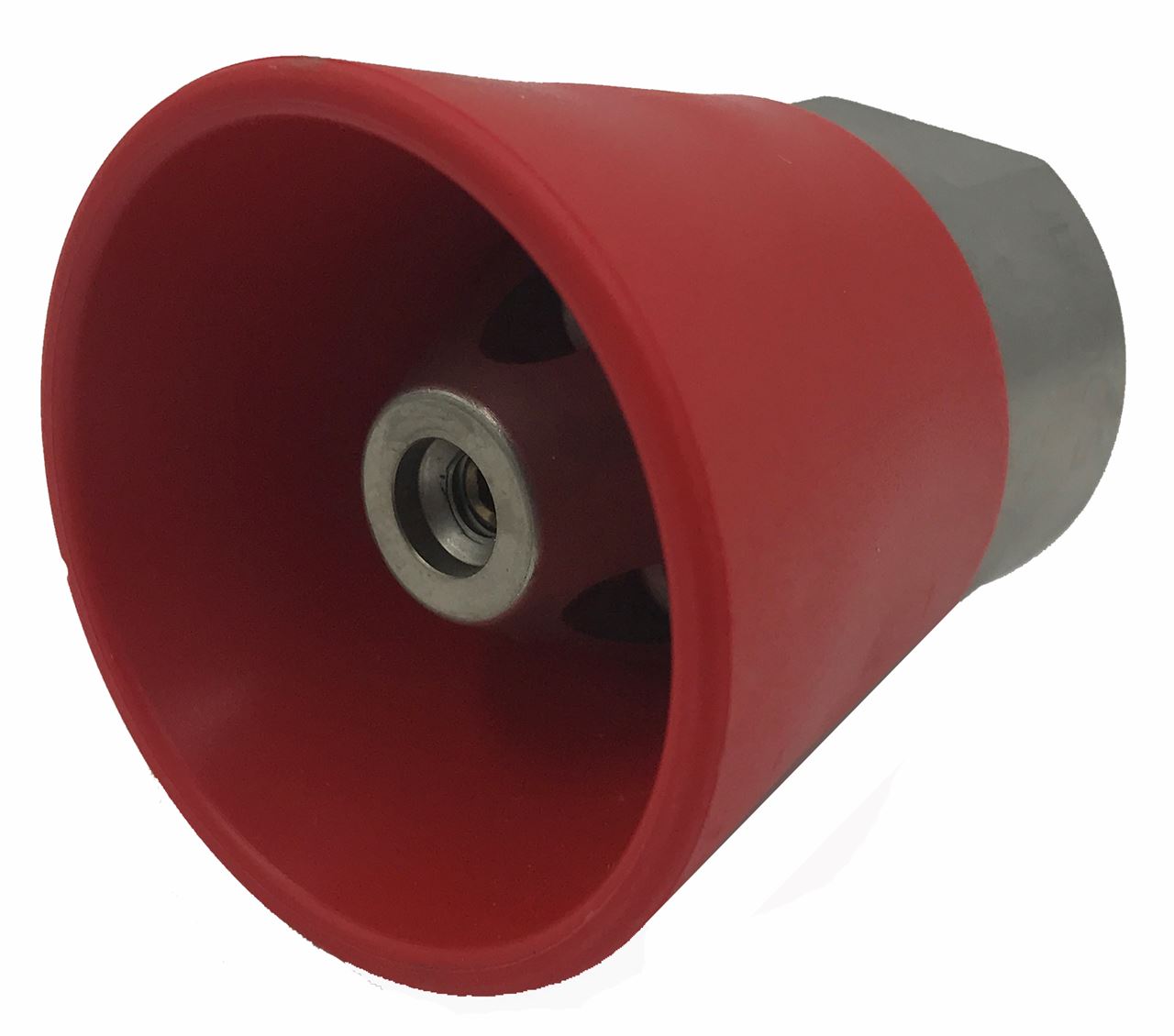

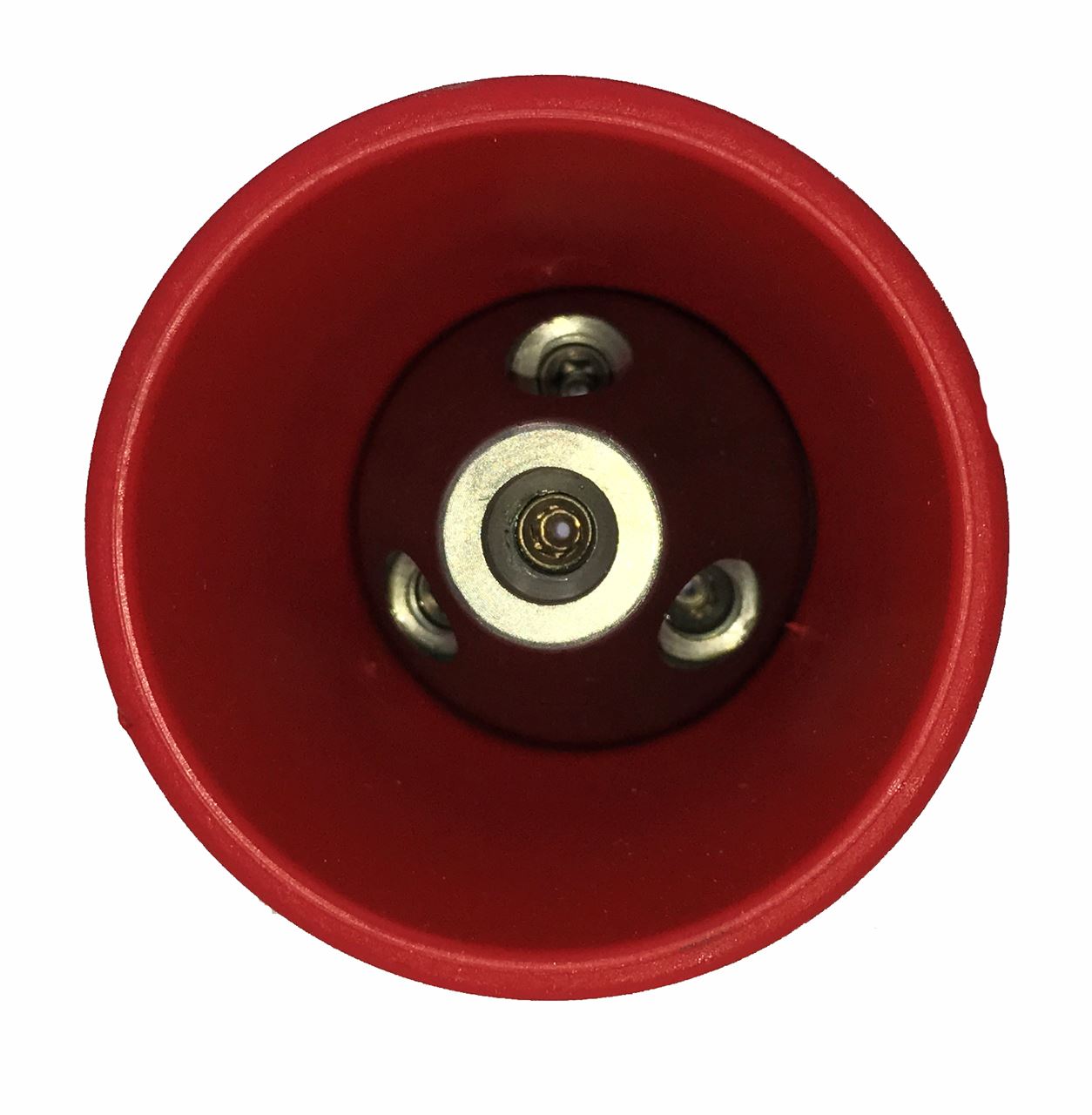

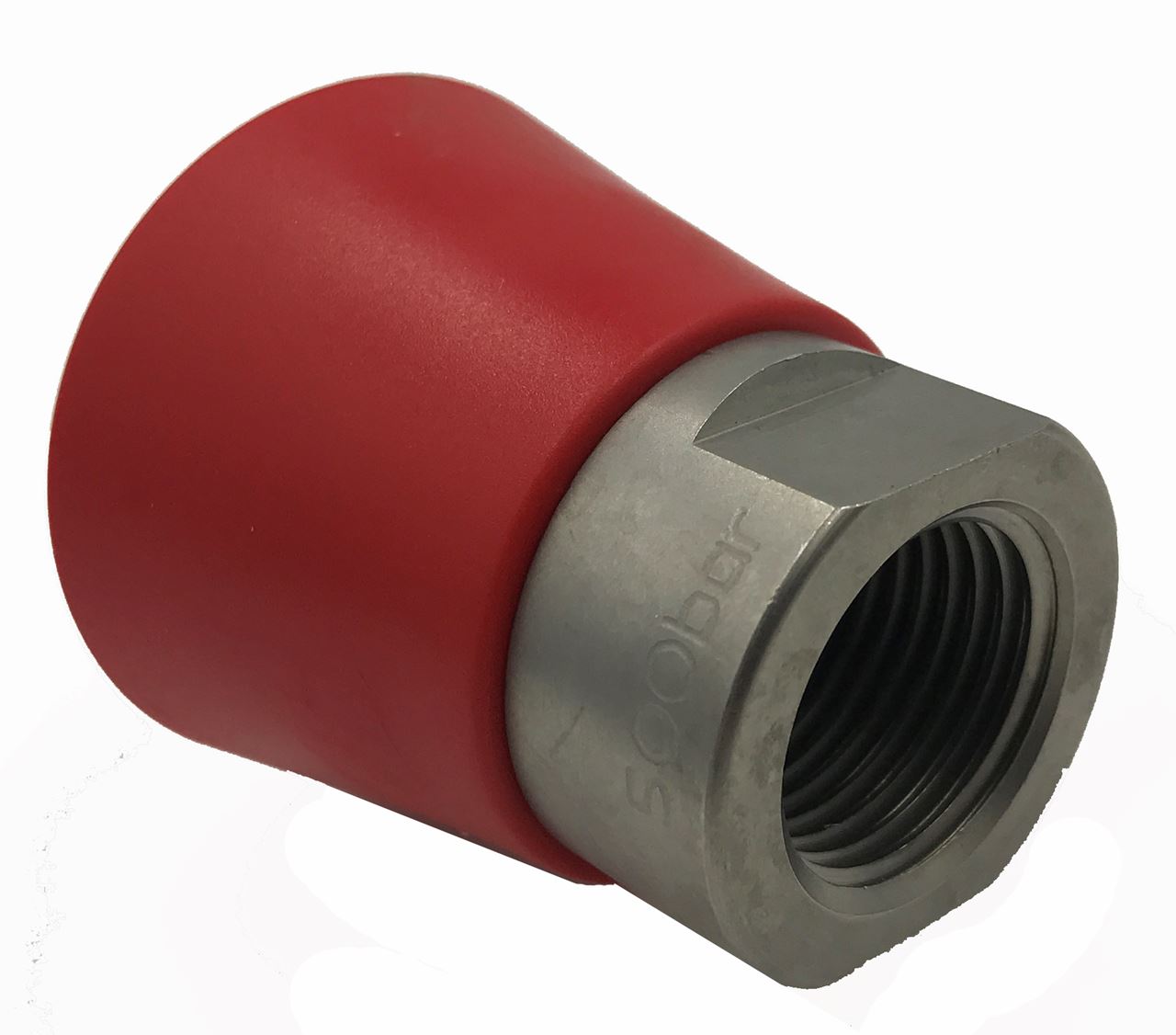

1/2” Suttner #5.5 Static Hydro-Excavation Nozzle. With 1 Centric and 3 Front jets at 15° and rated to 7,250 PSI. Designed specifically for slicing and busting up soil during hydro excavating application
Features:• High Quality, German engineered components• Nozzle body made out of wear-resistant, hardened stainless steel• 1 Centric front jet with nozzle insert• 3 Front jets at 15° with nozzle inserts• Low maintenance, fast and effective• Optimum stream quality resulting in faster digging speed• Ideal for areas with access issues• Working depths up to 13’ from ground level• Available in nozzle sizes from 2.0 to 35.0
Specifications:• Nozzle Size: # 5.5• Body Material: Hardened stainless steel• Maximum Pressure: 7,250 PSI• Inlet: 1/2” Female NPT• Max. Temperature: 212° F • Weight: 0.25 lbs
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump D10093 Quick Disconnect Coupler Plug Stainless Steel 1/2” x 1/2" NPT-M 6,000 PSI
Features: • Quick disconnect design• 304 Stainless steel
Specifications: • Quick Disconnect Coupler: Plug• Body Material: 304 Stainless steel• Plug Size: 1/2"• Thread: 1/2” NPT-M• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCP3MSS• Weight: 0.15 lb
General Pump D10090 Quick Disconnect Coupler Socket Stainless Steel 1/2” x 1/2" NPT-F 5,000 PSI
Features: • Quick disconnect design• 304 Stainless steel• EPDM O-Ring
Specifications: • Quick Disconnect Coupler: Socket• Body Material: 304 Stainless steel• Socket Size: 1/2"• Thread: 1/2” NPT-F• Max Temp: 175°• Max Operating Pressure: 5,000 PSI• Replaces QCS3FSS• Weight: 0.35 lb
General Pump D10092 Quick Disconnect Coupler Plug Stainless Steel 1/2” x 1/2" NPT-F 6,000 PSI
Specifications: • Quick Disconnect Coupler: Plug• Body Material: 304 Stainless steel• Plug Size: 1/2"• Thread: 1/2” NPT-F• Max Temp: 175°• Max Operating Pressure: 6,000 PSI• Replaces QCP3FSS• Weight: 0.15 lb
General Pump D10091 Quick Disconnect Coupler Socket Stainless Steel 1/2” x 1/2" NPT-M 5,000 PSI
Specifications: • Quick Disconnect Coupler: Socket• Body Material: 304 Stainless steel• Socket Size: 1/2"• Thread: 1/2” NPT-M• Max Temp: 175°• Max Operating Pressure: 5,000 PSI• Replaces QCS3MSS• Weight: 0.30 lb
