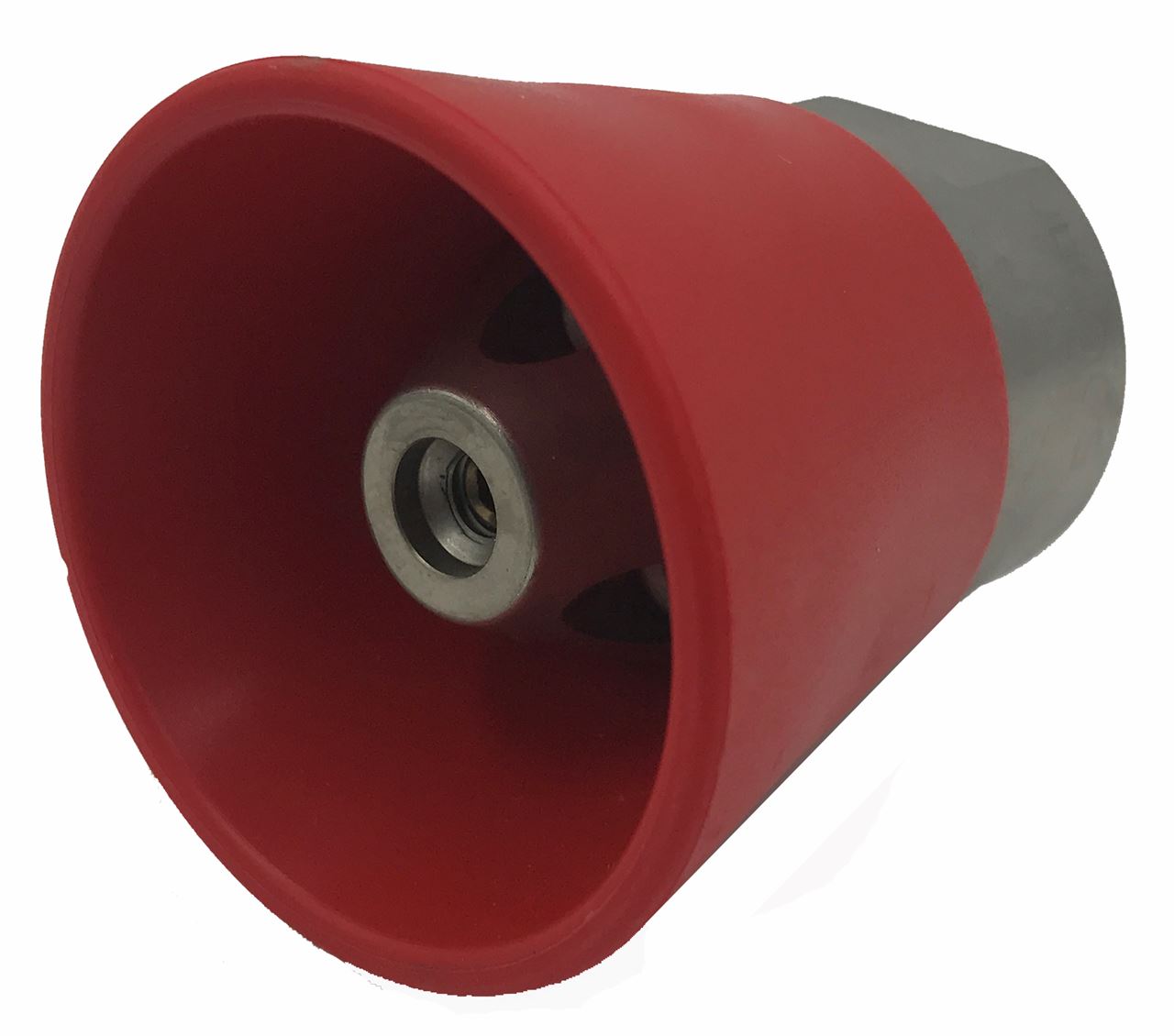

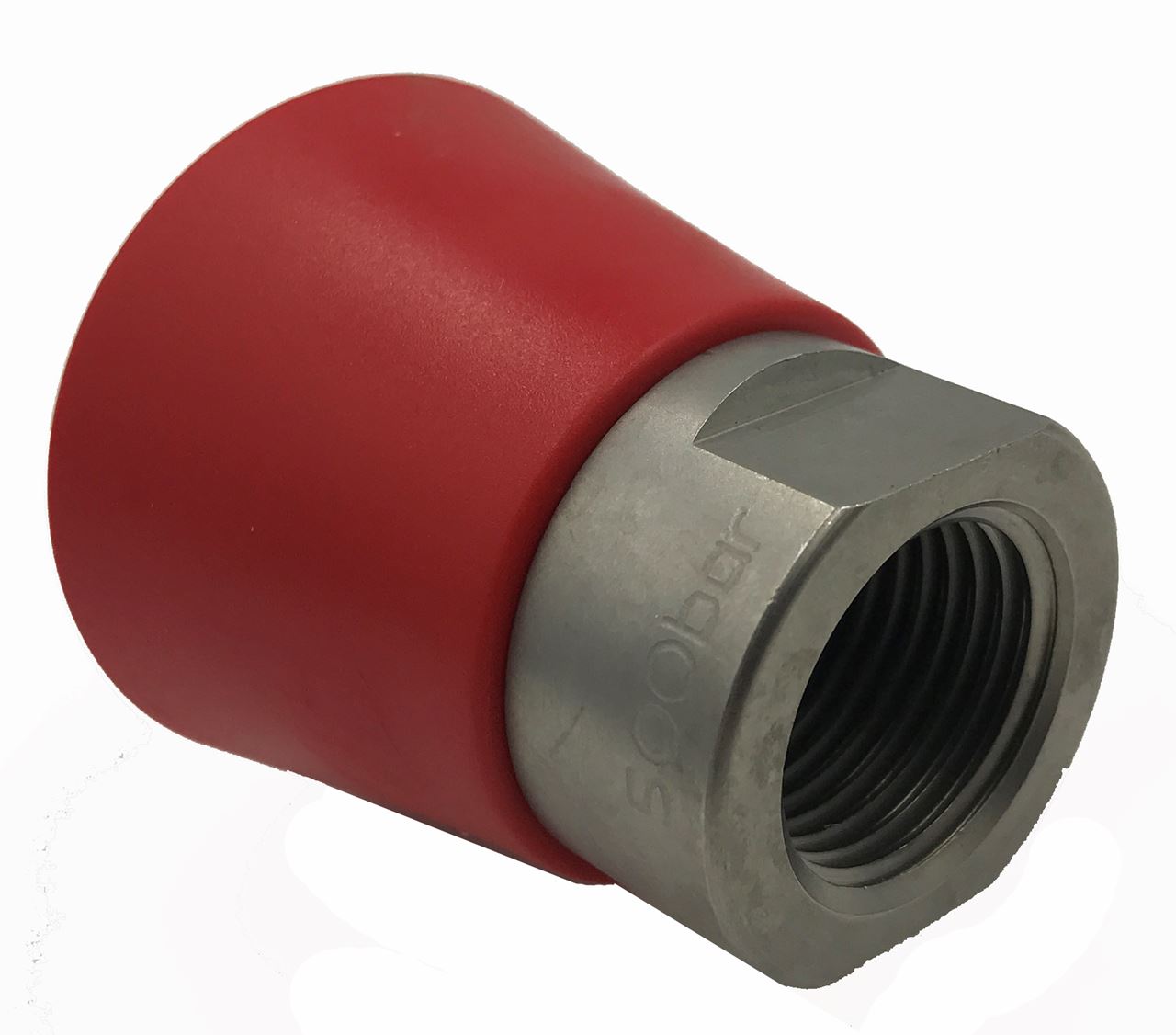

1/2” Suttner #8.0 Static Hydro-Excavation Nozzle. With 1 Centric and 3 Front jets at 15° and rated to 7,250 PSI. Designed specifically for slicing and busting up soil during hydro excavating application

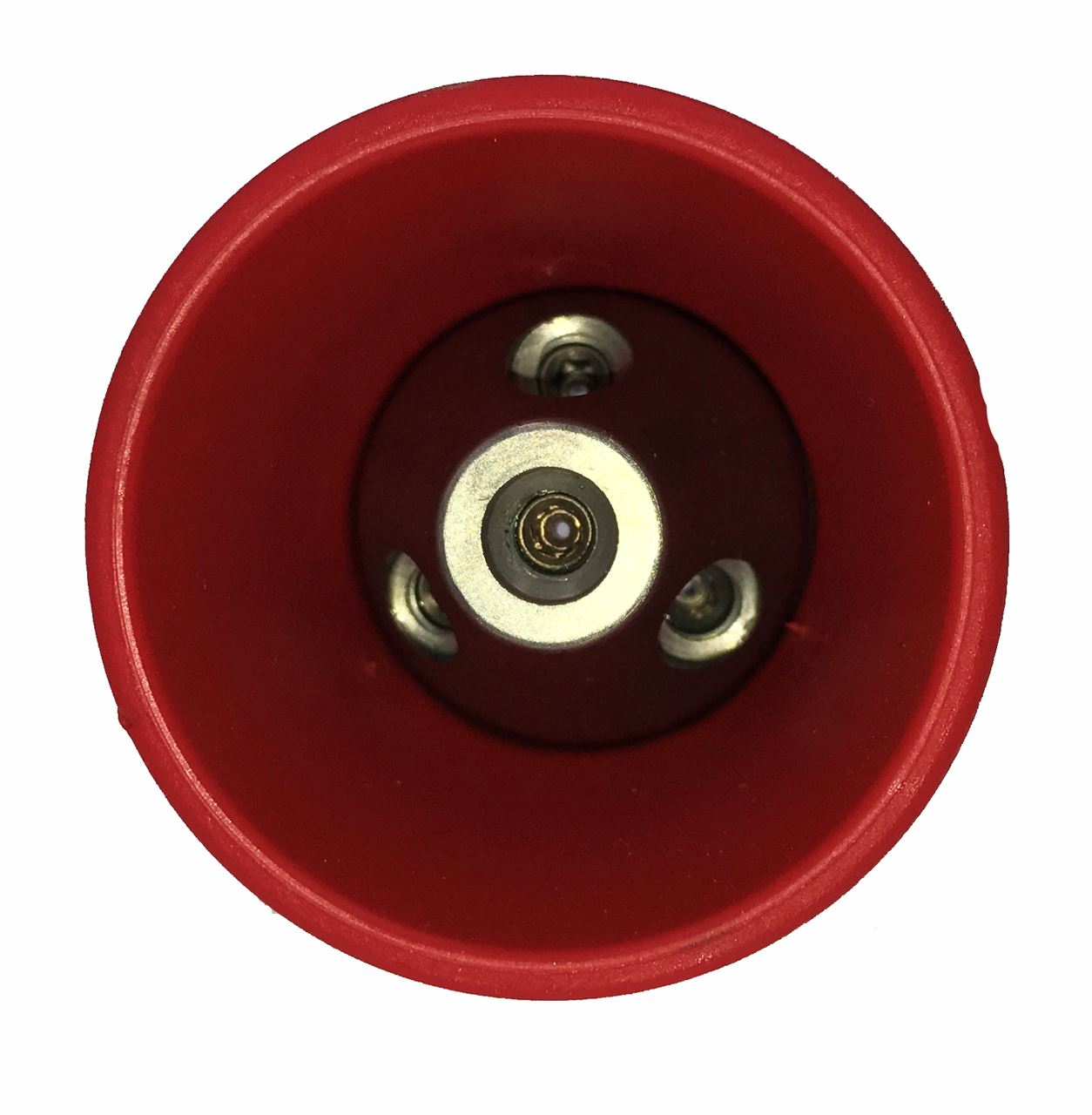

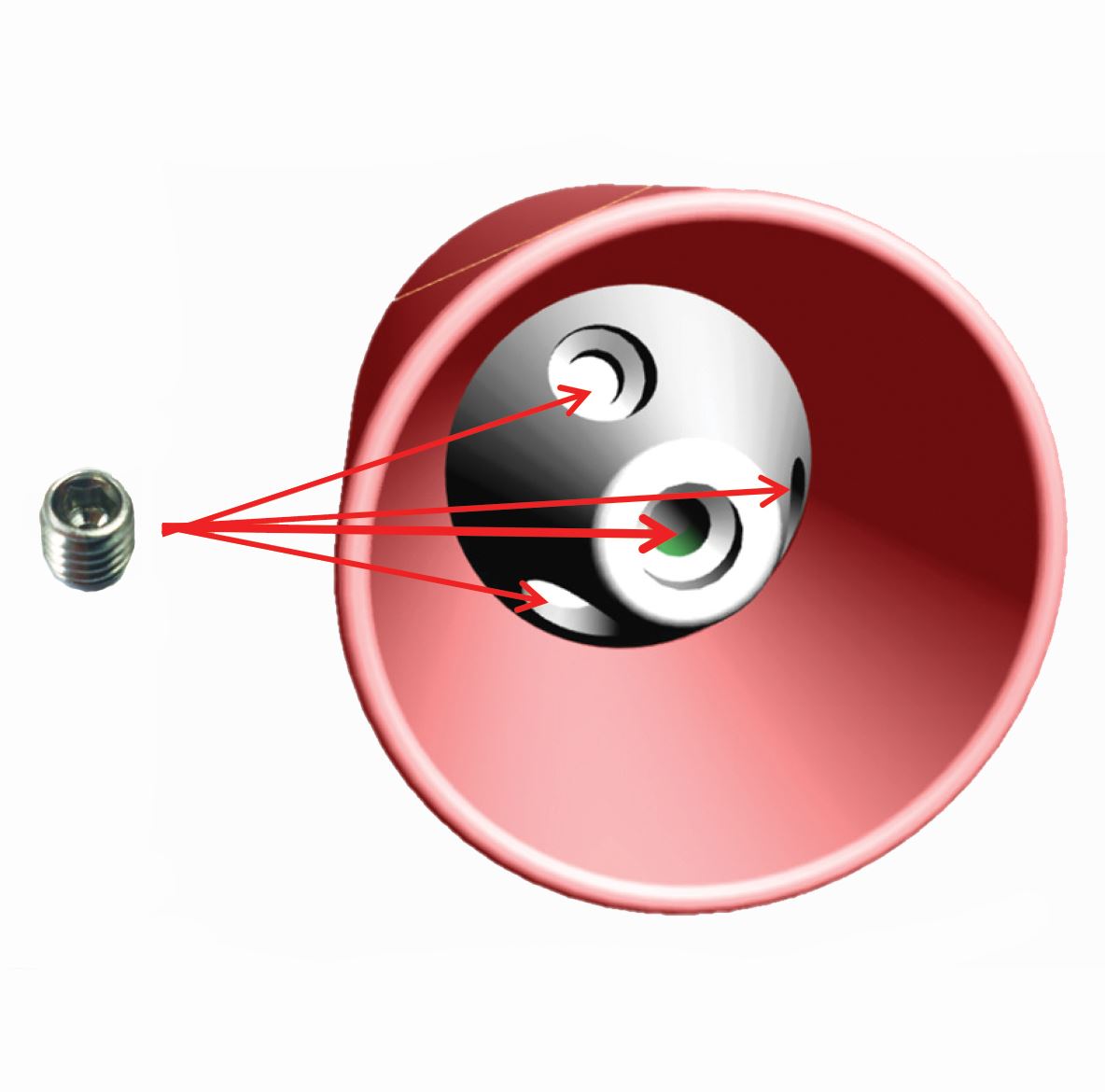

Features:• High Quality, German engineered components• Nozzle body made out of wear-resistant, hardened stainless steel• 1 Centric front jet with nozzle insert• 3 Front jets at 15° with nozzle inserts• Low maintenance, fast and effective• Optimum stream quality resulting in faster digging speed• Ideal for areas with access issues• Working depths up to 13’ from ground level• Available in nozzle sizes from 2.0 to 35.0
Specifications:• Nozzle Size: # 8.0• Body Material: Hardened stainless steel• Maximum Pressure: 7,250 PSI• Inlet: 1/2” Female NPT• Max. Temperature: 212° F • Weight: 0.25 lbs
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
General Pump 101146 Stainless Steel Turbo Nozzle Inline High-Pressure Filter 5,000 PSI 40 GPM 1/2" NPT-F x 1/2" NPT-M. Keeps debris out of nozzle and extends nozzle life
Features• 100 mesh, stainless steel mesh screen is standard• 60 mesh, stainless steel mesh screen is optional (Part No. 640055)• Easy to install • Easy to disassemble and assemble for cleaning• Made with durable long-lasting materials• MADE IN USA
Specifications • Max Pressure: 5,000 PSI• Max Volume: 40 GPM• Max Temp: 200° F.• Inlet: 1/2" NPT-F• Outlet: 1/2" NPT-M• Material: Stainless Steel, Buna-N• Dimensions: 3.5" x 1.25"• Weight: 0.70 lb
Suttner ST-3500 Industrial Stainless Steel High Volume Spray Gun 5,000 PSI 52.8 GPM with 1/2" Swivel FPT Inlet. The ST-3500 is designed for maximum performance and chemical resistance
Features• High Quality, German engineered components• Stainless steel components• Harden stainless steel valve piston• Chemical resistant
Specifications • Max Pressure: 5,000 PSI• Max Flow: 52.8 GPM• Max Temp: 300° F.• Inlet: 1/2" Swivel Female NPT• Outlet: 1/2" Female NPT• Weight: 2.58 lb
Features• High Quality, German engineered components• Forged stainless steel housing, piston, and malleable seat• Special heat and chemical resistant seals• Food Grade
Specifications • Max Pressure: 2,170 PSI• Max Flow: 27.0 GPM• Max Temp: 300° F.• Inlet: 1/2" Female NPT• Outlet: 1/2" Female NPT• Weight: 2.58 lb
Features• Increases cleaning efficiency as much as 200%• The 0° rotation creates a cleaning and tearing action• Ideal for hard surfaces• Improved materials for longer life
Specifications • Nozzle Size # 10.0 (Grey)• Max PSI: 6,000• Max Temp.: 212° F• Inlet: 1/2" Female NPT• NOTE: All rotating nozzles should be started pointing downward• Weight: 1.48 lbs
