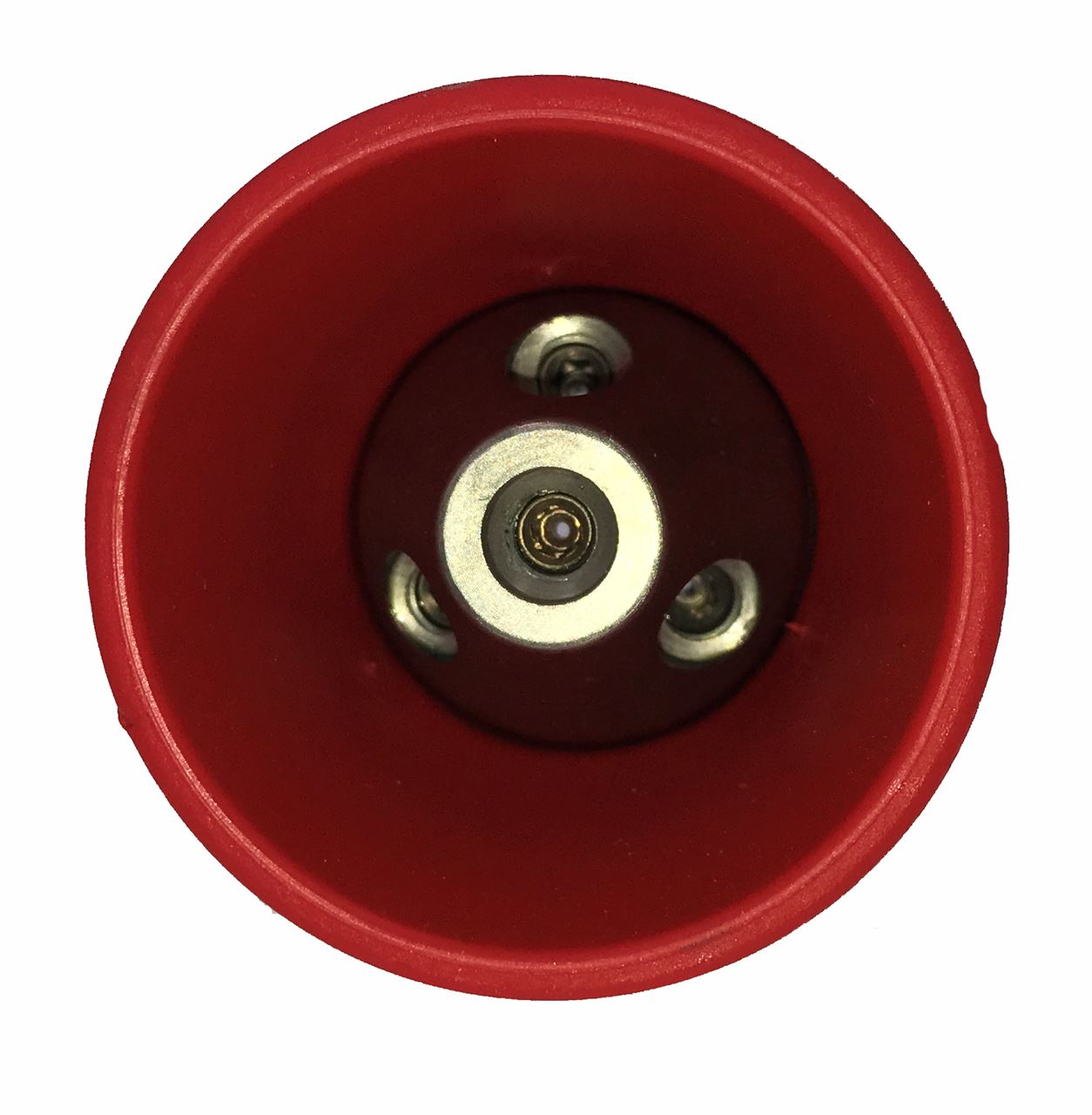

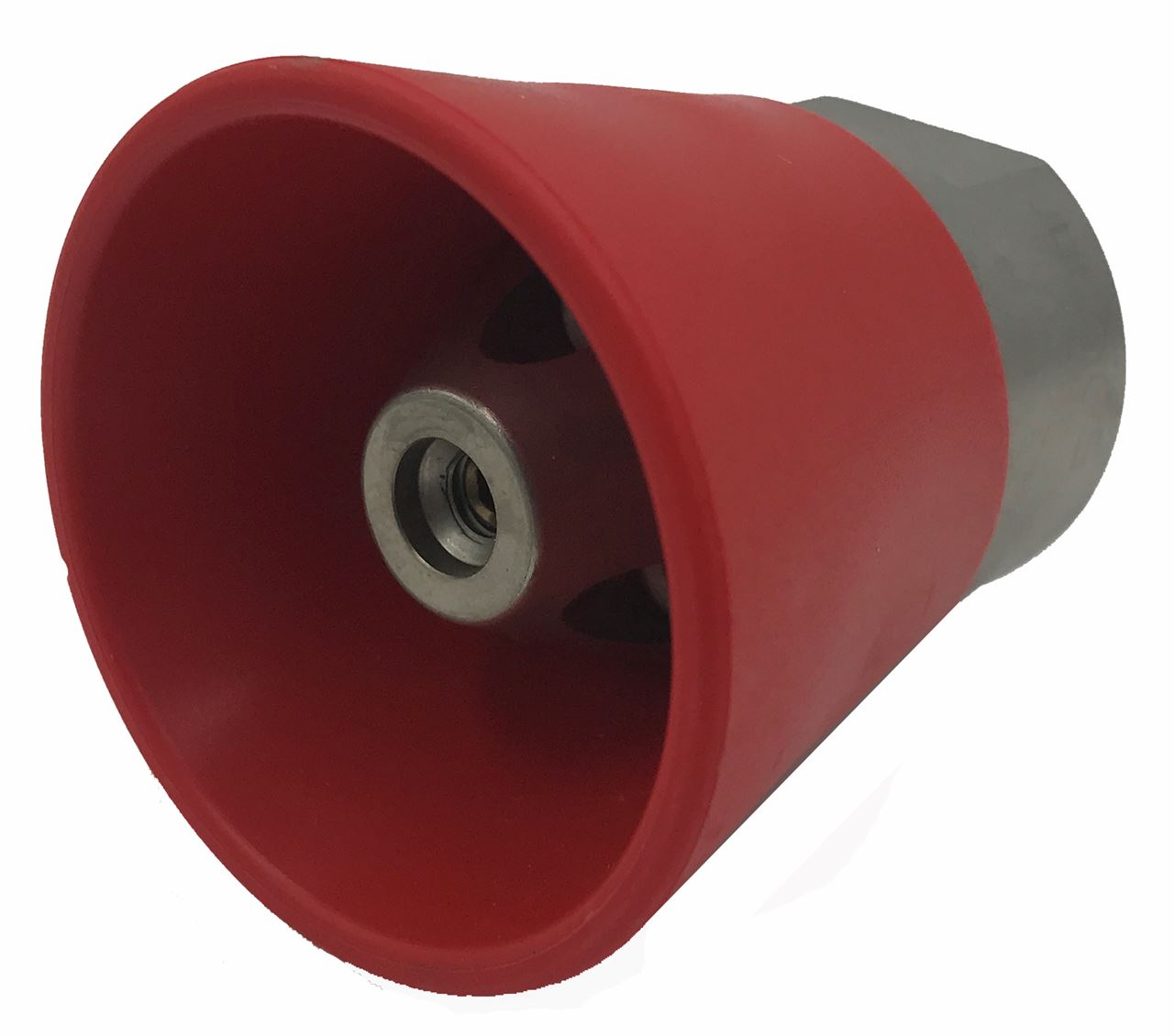

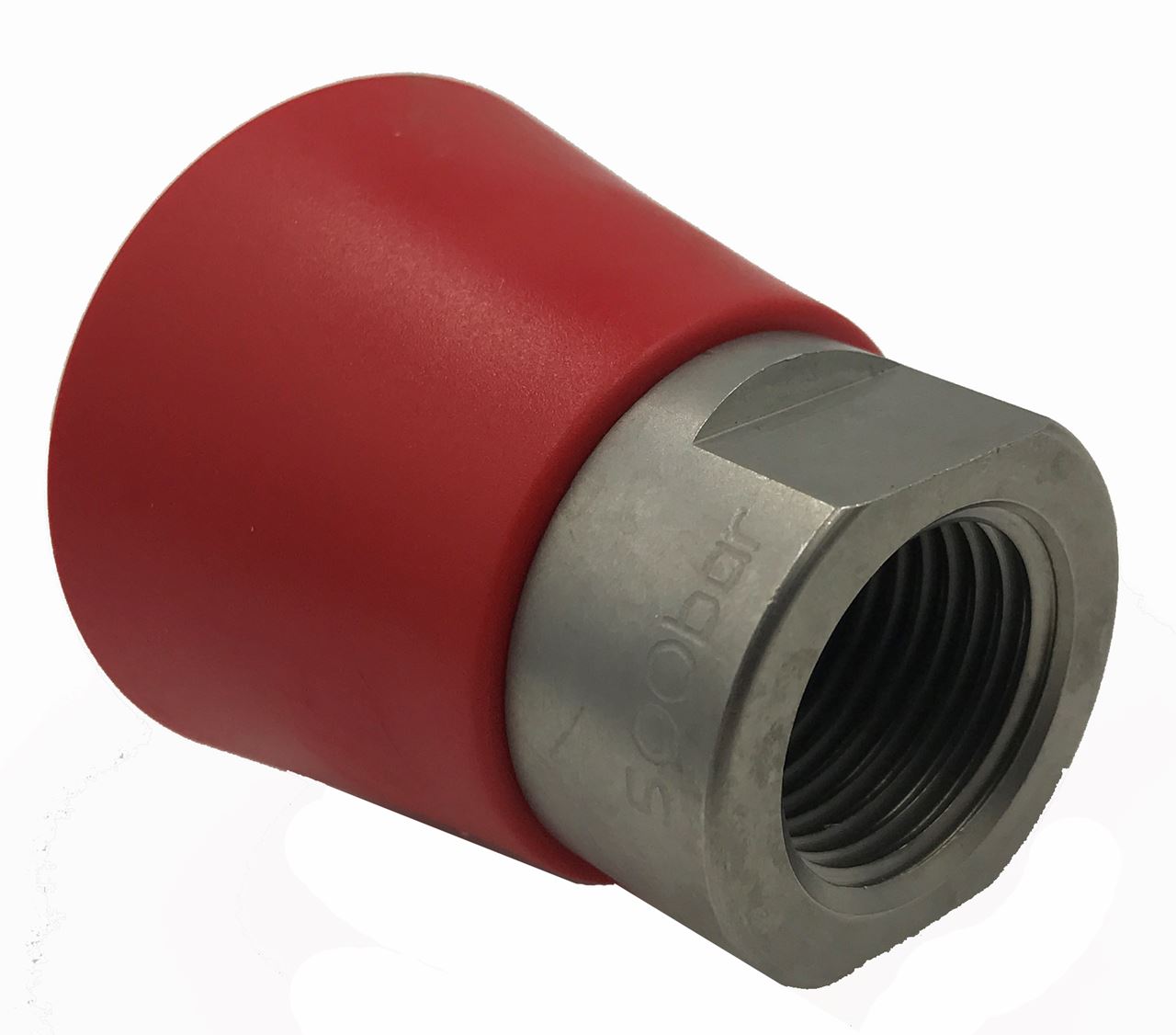

1/2” Suttner #10.0 Static Hydro-Excavation Nozzle. With 1 Centric and 3 Front jets at 15° and rated to 7,250 PSI. Designed specifically for slicing and busting up soil during hydro excavating application

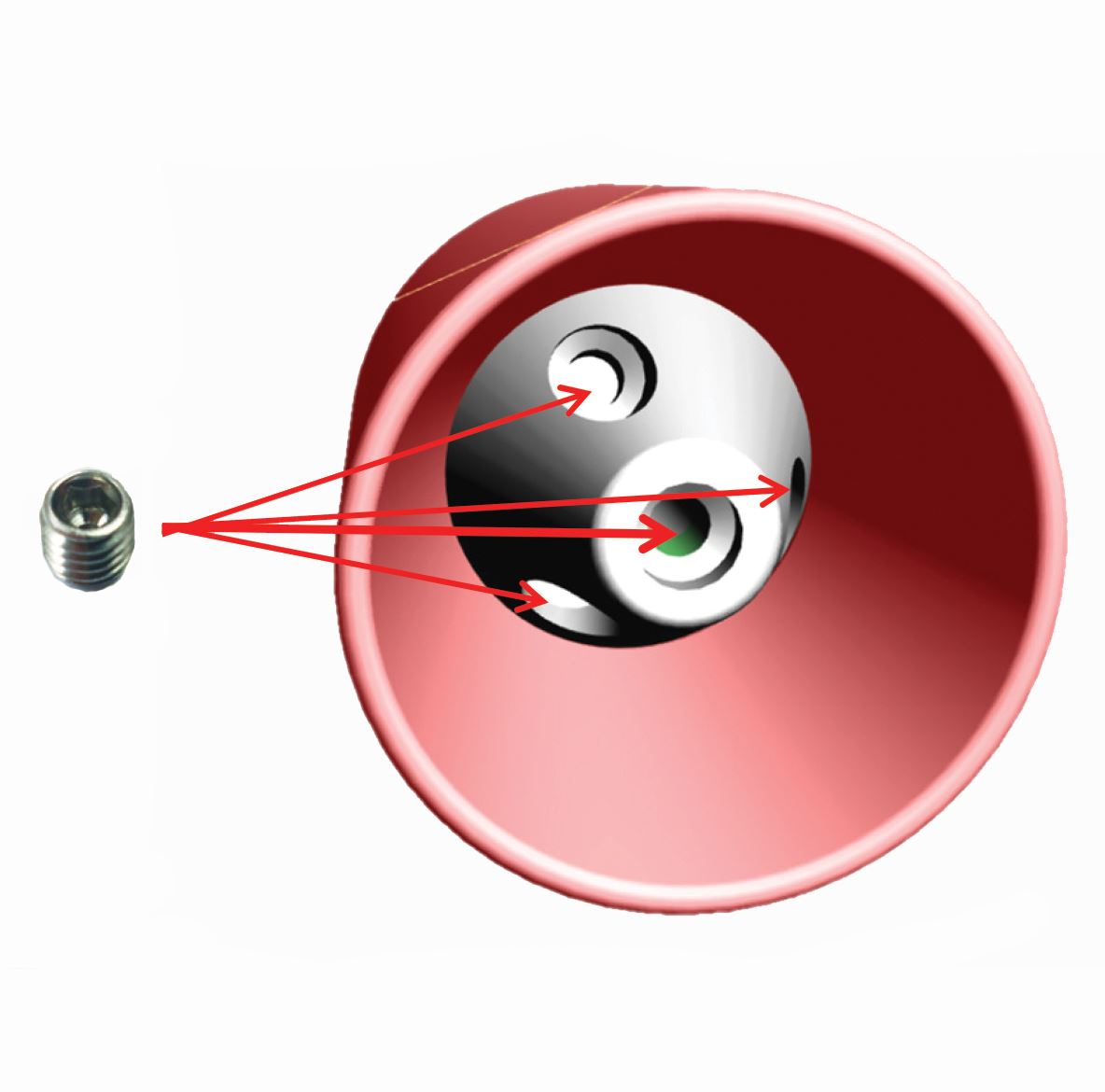

Features:• High Quality, German engineered components• Nozzle body made out of wear-resistant, hardened stainless steel• 1 Centric front jet with nozzle insert• 3 Front jets at 15° with nozzle inserts• Low maintenance, fast and effective• Optimum stream quality resulting in faster digging speed• Ideal for areas with access issues• Working depths up to 13’ from ground level• Available in nozzle sizes from 2.0 to 35.0
Specifications:• Nozzle Size: # 10.0• Body Material: Hardened stainless steel• Maximum Pressure: 7,250 PSI• Inlet: 1/2” Female NPT• Max. Temperature: 212° F • Weight: 0.25 lbs
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
Accutek® S1010-DC Steel Hex Bushing 1/2 Male Pipe x 3/8 Female Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 3,000 PSI• Burst Pressure: 16,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.08 lbs
Accutek® S1022-D Steel Male Hex Nipple 1/2 Male Pipe x 1/2 Male Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 3,000 PSI• Burst Pressure: 12,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.15 lbs
Accutek® S1003-D Steel Female Hex Coupling 1/2 Female Pipe x 1/2 Female Pipe Hydraulic Fitting. Fairview's SAE steel pipe fittings create a stress-generated seal.
Specifications:• Applications - Water, Oil, Air • Working Pressure: 3,000 PSI• Burst Pressure: 12,000 PSI• Working Temperature: -65°F (-54°C) to 250°F (120°C) • Pipe threads must be sealed using approved thread sealant• Weight: 0.23 lbs
General Pump 3/8" 5,000 PSI Stainless Steel Quick Disconnect Fittings (1 Plug & 1 Socket)
Features: • Quick disconnect design• Body Material: 304 Stainless steel• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler socket with EPDM O-ring• 1 pc: General Pump 3/8 NPT-F Quick disconnect coupler plug• Max Temp: 175°• Max Operating Pressure: 5,000 PSI • Works with standard quick connects• Weight: 0.30 lb
