1/2” Suttner #12.0 Static Hydro-Excavation Nozzle. With 1 Centric and 3 Front jets at 15° and rated to 7,250 PSI. Designed specifically for slicing and busting up soil during hydro excavating application
Features:• High Quality, German engineered components• Nozzle body made out of wear-resistant, hardened stainless steel• 1 Centric front jet with nozzle insert• 3 Front jets at 15° with nozzle inserts• Low maintenance, fast and effective• Optimum stream quality resulting in faster digging speed• Ideal for areas with access issues• Working depths up to 13’ from ground level• Available in nozzle sizes from 2.0 to 35.0
Specifications:• Nozzle Size: # 12.0• Body Material: Hardened stainless steel• Maximum Pressure: 7,250 PSI• Inlet: 1/2” Female NPT• Max. Temperature: 212° F • Weight: 0.25 lbs
Please use Nozzle Chart to determine proper nozzle size
Nozzle Chart
WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

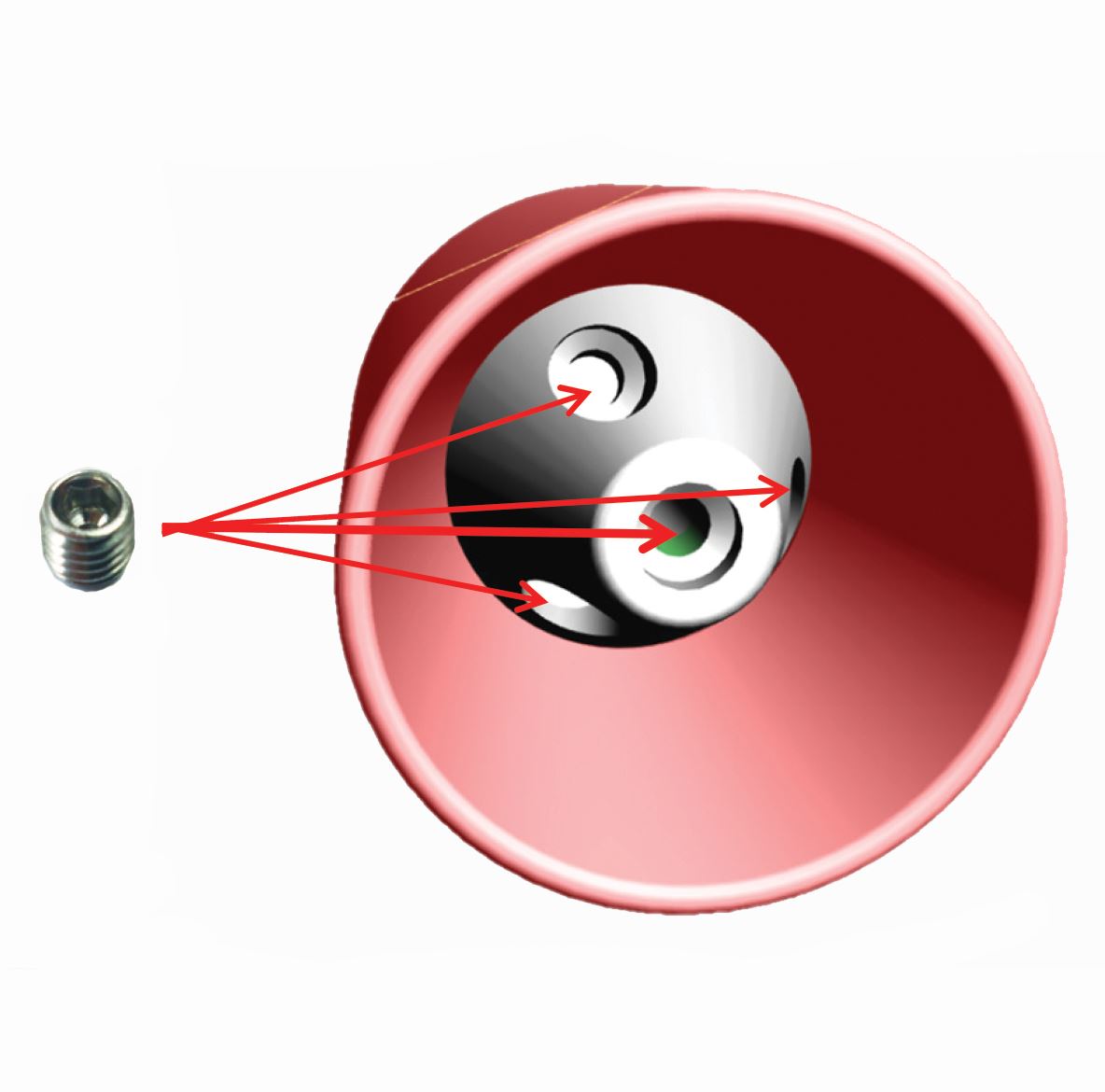

Suttner M5 Nozzle Insert 1.0 mm, #0237. Nozzle inserts for sewer cleaning nozzles and nozzle driver
Specifications:• Max Pressure: 7,250 PSI• Hole: 1.0 mm• Nozzle Size: # 0237• Allen Key: 2.5 mm Hex• Material: Hardened stainless steel

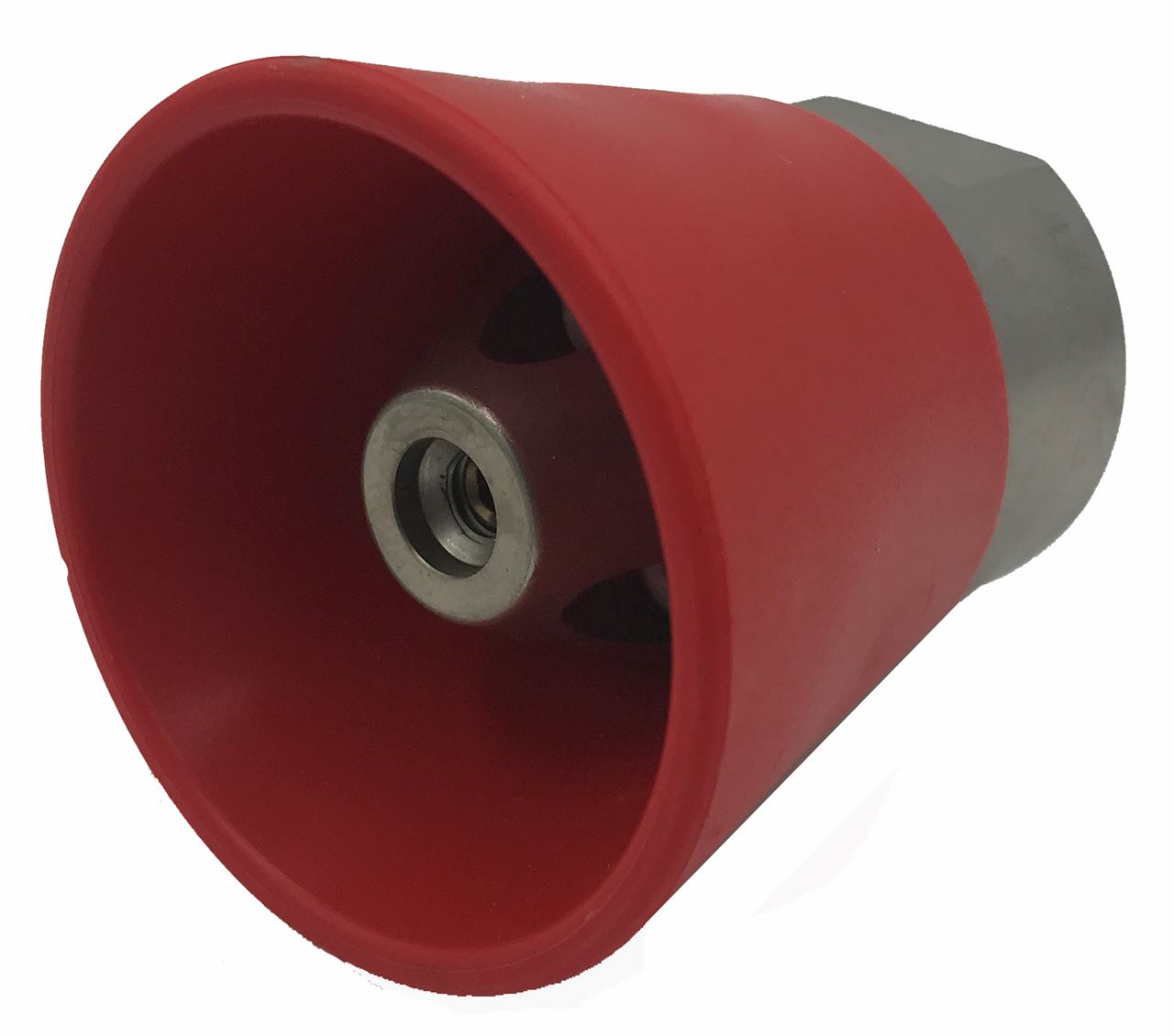

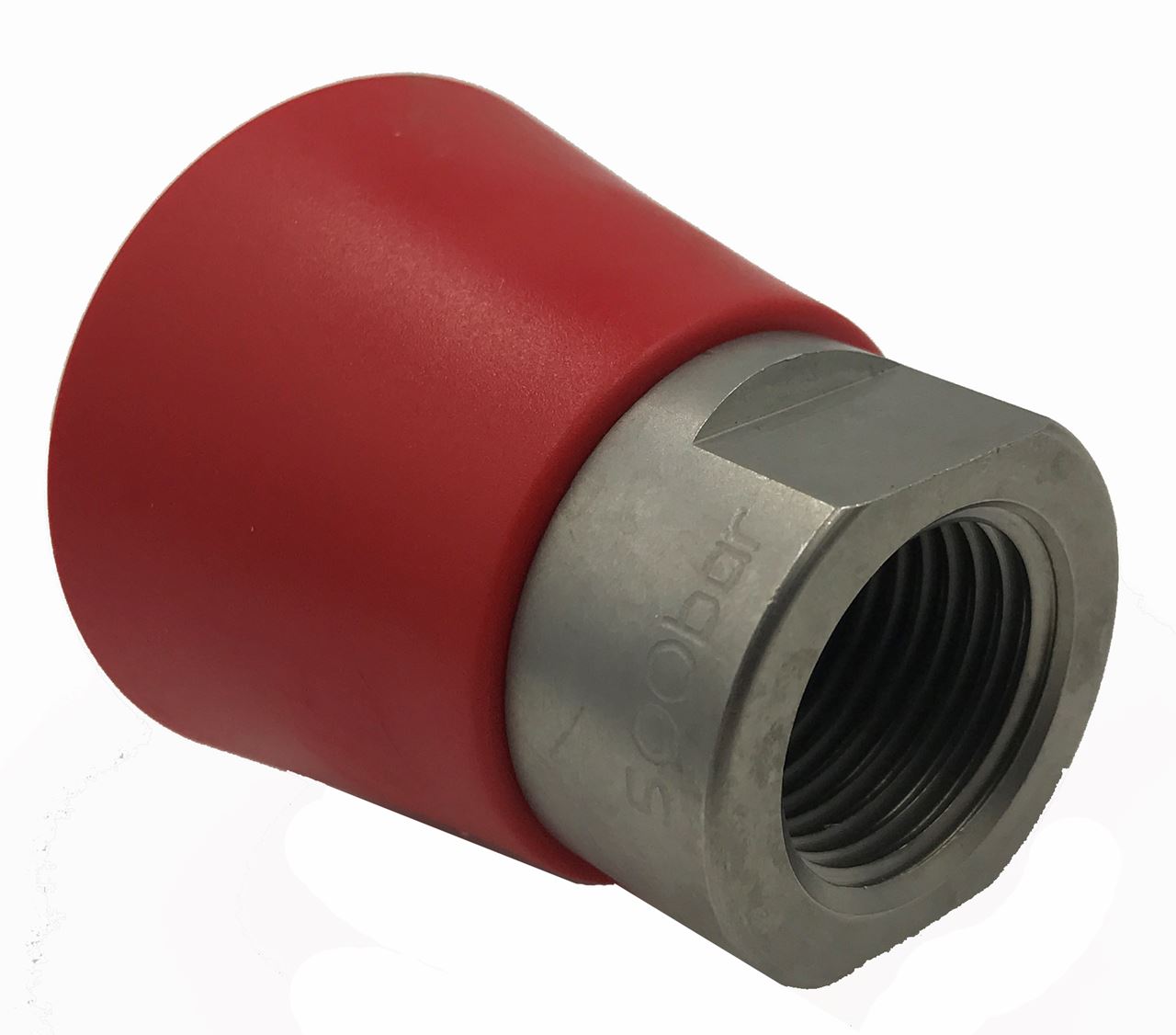

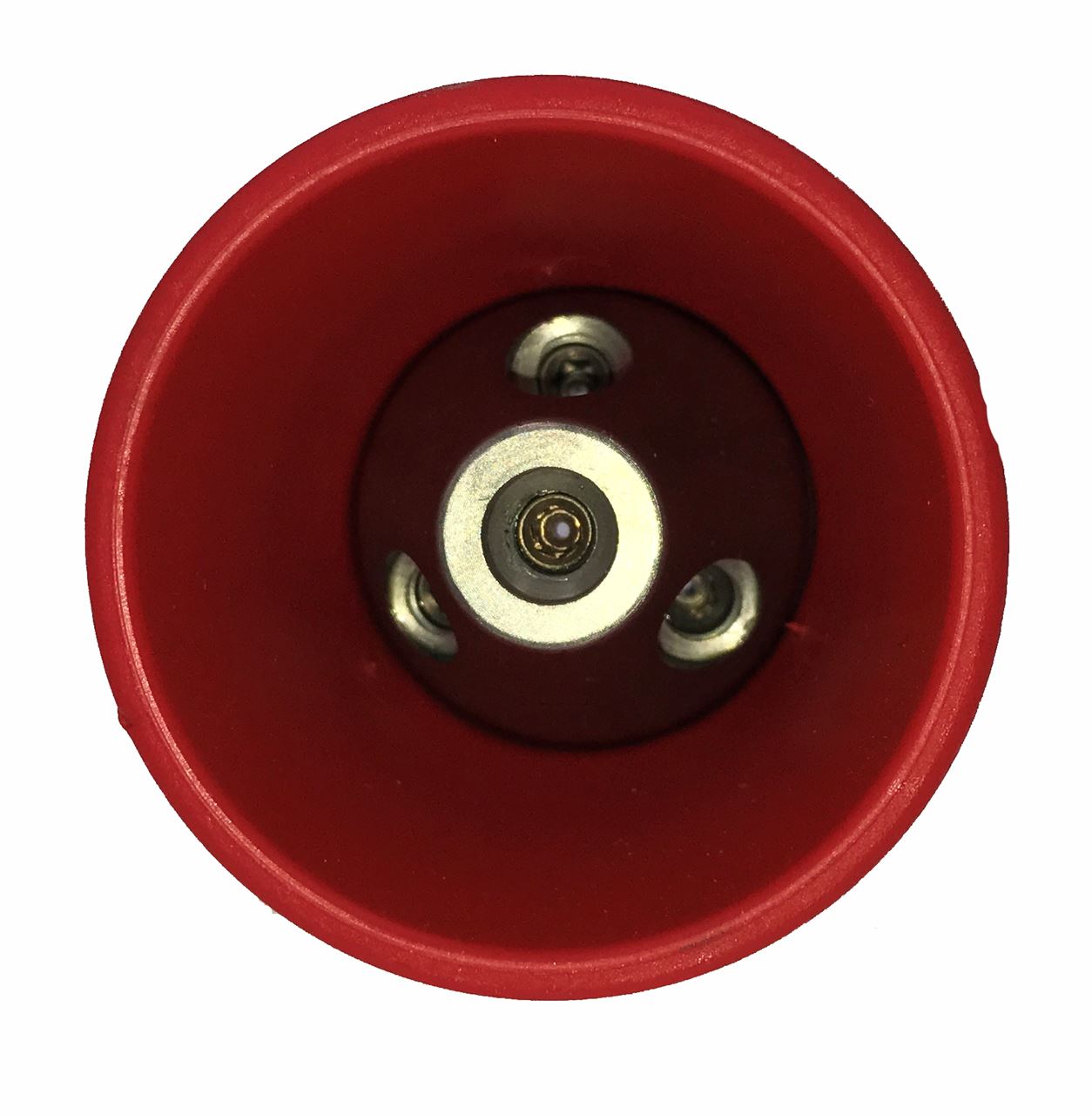

Suttner ST-458 # 10.0 Hydro Ex Turbo Nozzle with Red Extended Poly Cover. This 1/2” Inlet hydro excavation nozzle is rated up to 6,000 PSI.
Features• The outlet cover extension greatly decreases the chance of dirt and debris getting to the nozzle tip and seat area • Significant Increase in lifetime of nozzle• Molded and wear resistant poly cover
Hydro Ex Nozzle Flyer
Specifications • Nozzle Size # 10.0• Max PSI: 6,000• Max Temp.: 190° F• Inlet: 1/2" Female NPT• NOTE: All rotating nozzles should be started pointing downward• Weight: 1.60 lbs
General Pump 1/2” MPT x 72” 304L Stainless Steel 4,500 PSI Hydro Excavating Lance
Specifications:• Length: 72"• Pipe Material: 304L Stainless steel• Inlet: 1/2” Male NPT• Outlet: 1/2” Male NPT• Maximum Pressure: 4,500 PSI• Weight: 6.0 Lbs
