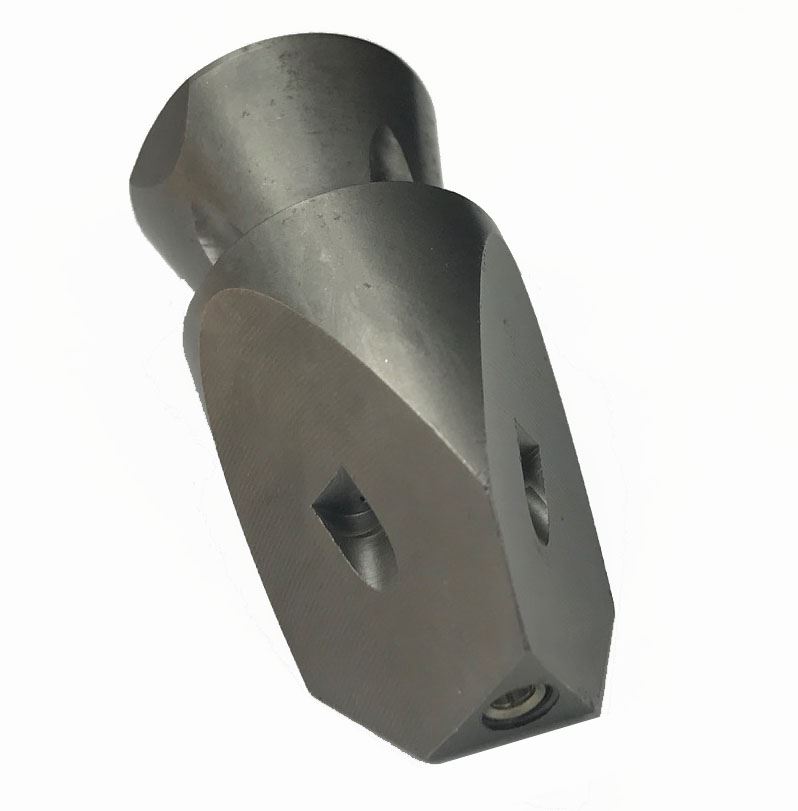

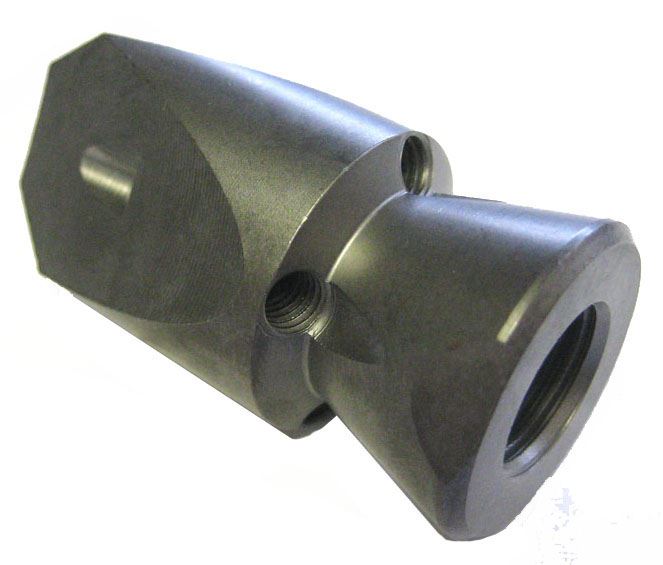

Picture of 1/4" Suttner #6.0 ST-49 Milling Sewer Nozzle 3 Front 4 Rear 5,076 PSI

1/4" Suttner #6.0 ST-49 Milling Sewer Nozzle 3 Front 4 Rear 5,076 PSI

SKU: 649010244061

Brand: Suttner America

$136.76

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


1/4” Suttner #6.0 ST-49 Milling Sewer Cleaning Nozzle. With 3 Front and 4 Rear jets and rated to 5,076 PSI


Features:
• High Quality, German engineered components
• With its 3 very strong concentrated forward jets and the sharp cutting edges the milling type nozzles will tear through almost any kind of blockage
• The sharp edges cut, break and penetrate through every kind of blockage
• Made out of wear-resistant, hardened stainless steel
• Centric jet is plugged
• 3 Lateral front jets 0.5 mm drilled
• 4 Rear jets with nozzle inserts
• Nozzle is equipped with replaceable hardened stainless steel centric front and rear jets
• Due to this feature the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer


Applications:
• Penetration of completely clogged pipes
• Opening of root masses
• Opening of frozen pipelines
• Hydraulic thrust boring flushing operations


Specifications:
• Nozzle Size: # 6.0
• Material: Stainless steel
• Maximum Pressure: 5,076 PSI
• Inlet: 1/4” Female
• Outside Diameter (O.D.): .95”
• Weight: 2.8 oz



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of GP Sewer Jetter Kit for DHRHC50100 w/ Ball Valve, Gauge & 3 Nozzles

GP Sewer Jetter Kit for DHRHC50100 w/ Ball Valve, Gauge & 3 Nozzles

SKU: 2100012


General Pump 2100358 Sewer Jetter Kit for DHRHC50100 Hose Reel. Includes Ball Valve, Pressure Gauge & 3 Sewer Jet Nozzles


Features:
• Clamp the hardware kit to the DHRHC50100 hose reel handle
• Full flow ball valve
• Glycerin filled gauge
• 3 Sewer nozzles included

2100358 Sewer Jetter Kit Data Sheet


SPECIFICATIONS
• Pressure Rating: 5,000 PSI
• Max Temp: 185° F.
• Inlet: 1/4” NPT-F
• Outlet: 1/4” NPT-F
• SJN0301F6B1 Nozzle: #3.0, 1 Front, 6 Rear
• SJN0300F3B1 Nozzle: #3.0, 3 Rear
• SJN0301F3B1 Nozzle: #3.0, 1 Front, 3 Rear
• Shipping Weight 5.35 lbs

  Price: $103.74
Picture of Suttner ST-49 "Grease Ball" Sewer Nozzle 1/4", # 8.0, 8 Back 7,252 PSI

Suttner ST-49 "Grease Ball" Sewer Nozzle 1/4", # 8.0, 8 Back 7,252 PSI

SKU: 120000860


1/4” Suttner ST-49 “Grease Ball” Sewer Nozzle # 8.0, 8 Rear 7,252 PSI.


Features
• High Quality, German engineered components
• 8 Rear jets 0.6 mm for extreme thrust and highest wall coverage of the pipe
• Designed for the ability to clean grease off the sidewall of pipes but has proven to be great on root chokes, too
• Nozzle drilling as stepped bore for best protection against mechanical impact
• Hardened stainless steel
• Works best on 2" to 4" Pipes


Specifications
• Nozzle Size: # 8.0
• Material: Stainless steel
• Maximum Pressure: 7,252 PSI
• Inlet: 1/4” Female
• Outside Diameter (O.D.): .97”
• Length: .84”
• Weight: .08 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart



  Price: $40.19
Picture of Suttner ST-49 "Root Ram" Sewer Nozzle 1/4", # 5.5, 1 Front, 3 + 3 Back 7,252 PSI

Suttner ST-49 "Root Ram" Sewer Nozzle 1/4", # 5.5, 1 Front, 3 + 3 Back 7,252 PSI

SKU: 120155672


1/4” Suttner ST-49 “Root Ram” Sewer Nozzle # 5.5, 1 Front, 3 + 3 Back 7,252 PSI.


Features
• High Quality, German engineered components
• Equipped with 1 front jet, 3 rear jets (30°) for maximum thrust and 3 additional nozzles (45°) right behind its nose for better cleaning results and wall coverage the nozzle has proven to be ideal on root chokes
• Hardened stainless steel
• Works best on 2" to 4" Pipes


Specifications
• Nozzle Size: # 5.5
• Material: Stainless steel
• Maximum Pressure: 7,252 PSI
• Max Flow: 7.9 GPM
• Inlet: 1/4” Female
• Outside Diameter (O.D.): .86”
• Length: 1.46”
• Weight: .08 lb



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

  Price: $53.73
Picture of Sewer Jetter Kit - Ball Valve, 150 x 1/4 Hose, Reel & Nozzles

Sewer Jetter Kit - Ball Valve, 150 x 1/4 Hose, Reel & Nozzles

SKU: 88.0267


Sewer Jetter /Cleaner Kit - Ball Valve, Hose Reel, 1/4” X 150' Hose and Nozzles. Will attach to any pressure washer with a 3/8 QC socket or plug outlet from pressure washer


Features
• This is a complete package; take a look at all the things included...
• The sewer kit clears blockages without the need for chemicals.
• The hose is designed to have a small outside diameter that allows the hose and nozzle to fit through sewer lines and pipes.
• Sewer hose is lighter, more flexible and has an outer cover which allows it to slide thru pipes more easily
• This kit works best on 2" to 4" Pipes.


Specifications
• 150’ of 1/4” Propulse Sewer hose
• General Pump DHRHC50100 Industrial Hose Reel On SS Base with Carry Handle and GP 3/8 QC inlet
• Fairview Accutek® 7,250 PSI ball valve with 3/8 GP quick connects
• 6’ Jumper hose with GP 3/8 QC’s
• Suttner 1/4” #4.0 Laser sewer nozzle
• Suttner 1/4” #4.0 Rotating sewer nozzle
• 3/8” M x 1/4” F Steel bushing (hose reel)
• Max. Pressure: 4,000 PSI
• Weight: 31.0 lb

  Price: $462.20
