Picture of 3/8" F Suttner # 9.0 ST-49 Turbo Driver 6 Rear 5,076 PSI

3/8" F Suttner # 9.0 ST-49 Turbo Driver 6 Rear 5,076 PSI

SKU: 649081306090

Brand: Suttner America

$71.29

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


3/8” F Suttner #9.0 ST-49 Turbo Nozzle Driver With 6 Rear jet inserts and rated to 5,076 PSI


Features:
• High Quality, German engineered components
• Turbo nozzle driver and ST-356 or ST-456 turbo nozzle are the perfect combination for drilling through blockages with its rotary forward facing jet
• Driven up to the blockage by 6 powerful rear facing hardened stainless steel nozzles the high speed forward facing spinning jet creates a cone shape that has enough cutting force to blast through roots and scale
• It is also ideal for cutting up and shredding tissue and fat deposits


Note:

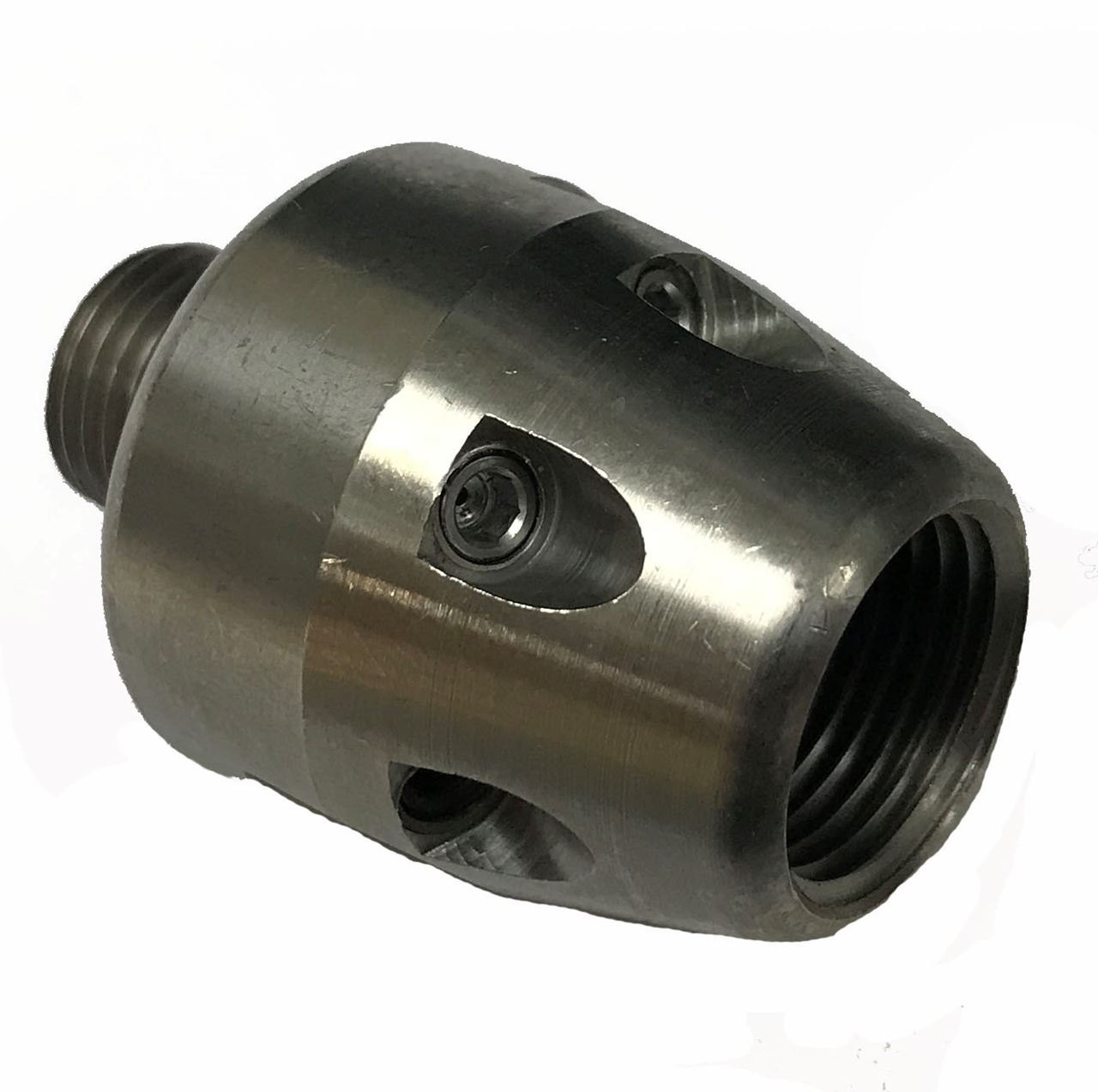

• Above shown item (1st Picture) is for the driver portion only

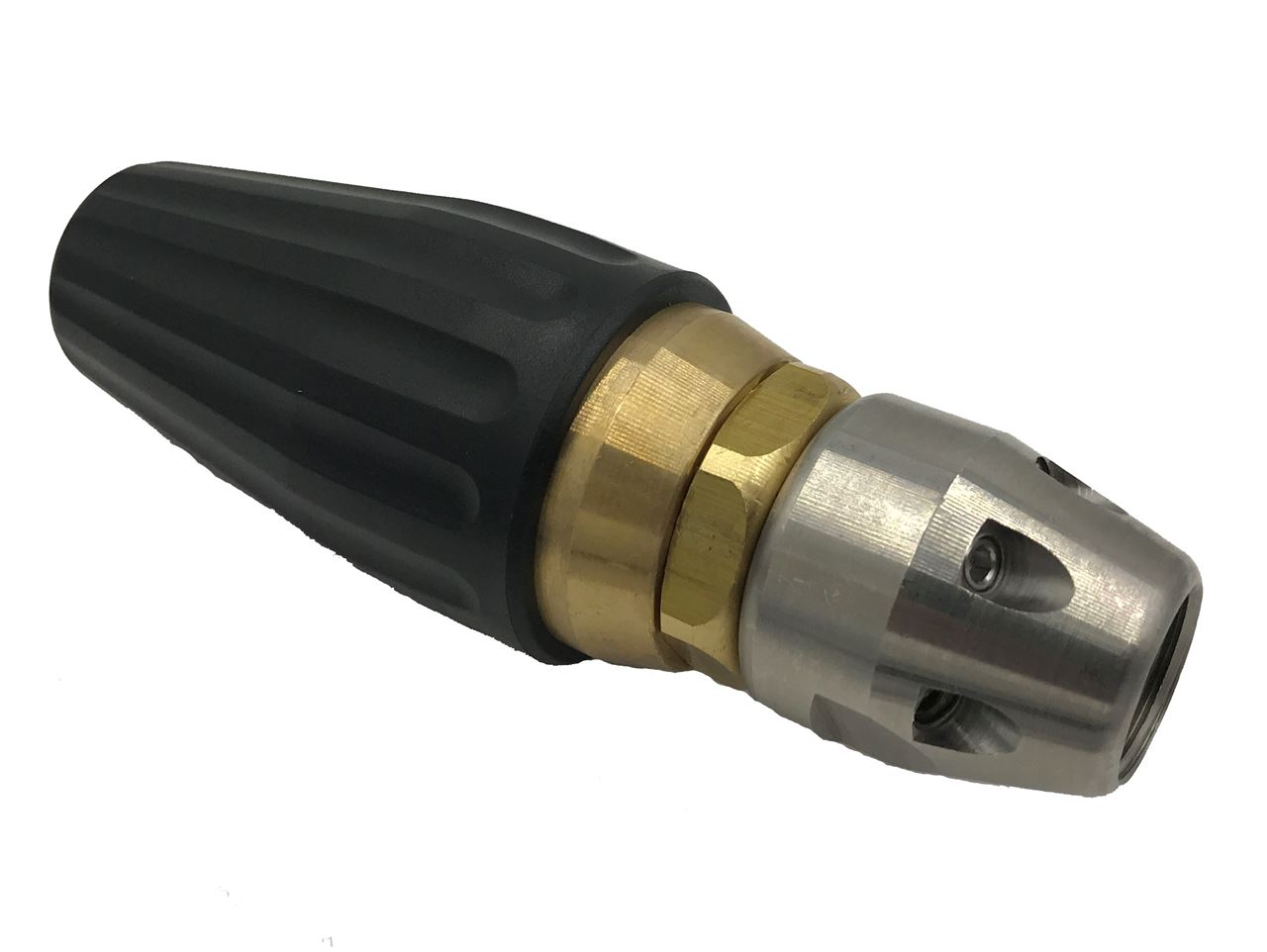

• You will have to add the corresponding ST-357 or ST-456 turbo nozzle to complete the driver (2nd Picture)


Specifications:
• Material: Hardened stainless steel
• Maximum Pressure: 5,076 PSI
• Inlet (Sewer Hose): 3/8” Female
• Outlet (Turbo Nozzle): 1/4” Male
• Nozzle Size: # 9.0 (With a #3.0 ST-357 or ST-456 nozzle)
Note: Requires #3.0 ST-357 or ST-456 1/4” turbo nozzle (Not Included)
• Weight: 0.20 lbs


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought

3/8" Suttner #9.0 ST-49 Milling Sewer Nozzle 1 Centric 3 Front 6 Rear 5,076 PSI

SKU: 649010346090


3/8” Suttner #9.0 ST-49 Milling Sewer Cleaning Nozzle. With 1 Centric, 3 Front and 6 Rear jets and rated to 5,076 PSI


Features:
• High Quality, German engineered components
• With its 4 very strong concentrated forward jets and the sharp cutting edges the milling type nozzles will tear through almost any kind of blockage
• The sharp edges cut, break and penetrate through every kind of blockage
• Made out of wear-resistant, hardened stainless steel
• 1 Centric front jet with nozzle insert
• 3 Lateral front jets with nozzle inserts
• 6 Rear jets with nozzle inserts
• Nozzle is equipped with replaceable hardened stainless steel nozzle inserts
• Due to this feature the efficiency is considerably higher compared with those nozzles with drilled holes and the service life is several times longer


Applications:
• Penetration of completely clogged pipes
• Opening of root masses
• Opening of frozen pipelines
• Hydraulic thrust boring flushing operations


Specifications:
• Nozzle Size: # 9.0
• Material: Stainless steel
• Maximum Pressure: 5,076 PSI
• Inlet: 3/8” Female
• Outside Diameter (O.D.): 1.11”
• Weight: 4.0 oz



Nominal Thread Size (NPT)
1/8"
1/4"
3/8"
1/2"
3/4"
1"
Actual I.D. Measurement
3/8"
1/2"
5/8"
3/4"
1"
1-3/8"


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

  Price: $118.83

Suttner ST-456 #3.0 (Yellow) Turbo Nozzle 5,075 PSI

SKU: 200456530

Suttner ST-456 Turbo / Rotating #3.0 Nozzle is rated for up to 5,070 PSI. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete graffiti cleaning or caked mud on heavy equipment


Features
• Increases cleaning efficiency as much as 200%
• The 0° rotation creates a cleaning and tearing action
• Ideal for hard surfaces
• Improved materials for longer life


Specifications
• Nozzle Size # 3.0 (Yellow)
• Max PSI: 5,070
• Max Temp.: 212° F
• Inlet: 1/4" Female NPT
• NOTE: All rotating nozzles should be started pointing downward
• Weight: 0.90 lbs


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

  Price: $69.94

Suttner ST-357 #3.0 (Yellow) Turbo Nozzle 3,625 PSI

SKU: 200357530


Suttner ST-357 Turbo / Rotating #3.0 Nozzle is rated for up to 3,625 PSI. The increased tearing action of the rotating spray is ideal for hard surface applications, such as concrete, graffiti cleaning or caked on mud on heavy equipment


Features
• Increases cleaning efficiency as much as 200%
• The 0° rotation creates a cleaning and tearing action
• Ideal for hard surfaces
• Improved materials for longer life


Specifications
• Nozzle Size # 3.0 (Yellow)
• Max PSI: 3,625
• Max Temp.: 190° F
• Inlet: 1/4" Female NPT
• NOTE: All rotating nozzles should be started pointing downward
• Weight: 0.68 lbs


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

  Price: $53.68

1/2" F Suttner # 12.0 ST-49 Turbo Driver 6 Rear 7,252 PSI

SKU: 649082406120


1/2” F Suttner #12.0 ST-49 Turbo Nozzle Driver With 6 Rear jet inserts and rated to 7,252 PSI


Features:
• High Quality, German engineered components
• Turbo nozzle driver and ST-457 or ST-559 turbo nozzle are the perfect combination for drilling through blockages with its rotary forward facing jet
• Driven up to the blockage by 6 powerful rear facing hardened stainless steel nozzles the high speed forward facing spinning jet creates a cone shape that has enough cutting force to blast through roots and scale
• It is also ideal for cutting up and shredding tissue and fat deposits


Note:
• Above shown item (1st Picture) is for the driver portion only
• You will have to add the corresponding ST-457 or ST-559 turbo nozzle to complete the driver (2nd Picture)


Specifications:
• Material: Hardened stainless steel
• Maximum Pressure: 7,252 PSI
• Inlet (Sewer Hose): 1/2” Female
• Outlet (Turbo Nozzle): 1/4” Male
• Nozzle Size: # 12.0 (With a #4.5 ST-457 or #5.0 ST-559 nozzle)
Note: Requires #4.5 ST-457 or #5.0 ST-559 1/4” turbo nozzle (Not Included)
• Weight: 0.30 lbs


Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

  Price: $75.96
