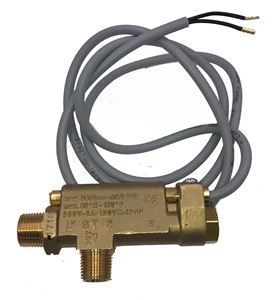

Picture of Suttner ST-6 Any Position Flow Switch 5,070 PSI (New)

Suttner ST-6 Any Position Flow Switch 5,070 PSI (New)

SKU: 200006703

Brand: Suttner America

$47.67

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


Suttner ST-6 Any Position Flow Switch. Mounts in any position and spring assisted brass magnet configuration


Features:
• Can be mounted horizontal or vertical
• Reed switch encased in protective vacuum sealed glass tube eliminating exposure to corrosive cleaning chemicals
• Mounts further downstream in pumping system than traditional vacuum switches, thereby minimizing potential leak points that can cause vacuum switches to close
• Easy reed switch replacement
• Most proven and reliable flow switches in the industry


Specifications:
• Max. Pressure: 5,070 PSI
• Min. Pressure: 75 PSI
• Max. Flow Rate: 8.0 GPM
• Min. Flow Rate: 1 GPM
• Contact: 1 A - 250 V
• Max: Fluid Temperature: 176° F
• Cable Length: 47.0”
• Inlet & Outlet: 3/8” MPT
• Housing: Brass
• Replaces 200006540
• Weight: 0.80 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.

Customers who bought this item also bought
Picture of 3/8 FPT Extruded Brass 90° Elbow

3/8 FPT Extruded Brass 90° Elbow

SKU: X100-C


Fairview X100-C 3/8 FPT Extruded Brass 90° Elbow. Fairview's Extruded 90° Elbow Brass Pipe Fittings are excellent for use with Water, Oil, Air, Natural Gas, LP-Gas, LP-Gas, LP-Gas to 1,200 PSI WP

Specifications:
• Use with Brass, Steel, Iron Pipe
• Working Pressure: 1,200 PSI
• Burst Pressure: 5,000 PSI
• Material: Extruded brass
• Pipe threads must be sealed using approved thread sealant
• Weight: 0.18 lbs

  Price: $4.70 5 in stock
Picture of GP YCV Check Valve, Stainless Steel 1/2 FPT x 1/2 FPT 6,500 PSI

GP YCV Check Valve, Stainless Steel 1/2 FPT x 1/2 FPT 6,500 PSI

SKU: YCV12FSS


General Pump YCV12FSS Stainless Steel Check Valve 1/2 FPT x 1/2 FPT 6,500 PSI


Features
• Light Cracking Pressure
• Stainless Body with Stainless Wetted Parts
• O-ring on Poppet for a Leak Proof Seal
• Solid Body Construction, Won’t Come Apart During Installation

GP YCVSS Specifications Sheet


Specifications
• Body Material: Stainless Steel
• Max Volume: 21.0 GPM
• Rated Pressure: 5,800 PSI
• Maximum Pressure: 6,500 PSI
• Maximum Temperature: 195° F
• Port Sizes: 1/2" NPT-F
• Cracking Pressure: 4.4 PSI
• Length: 2.6”
• Weight: 6.81 oz

  Price: $42.34
Picture of Suttner ST-7 Flow Switch w/Micro Switch 0.3 GPM Switch Point 5,000 PSI

Suttner ST-7 Flow Switch w/Micro Switch 0.3 GPM Switch Point 5,000 PSI

SKU: 200007510

Suttner ST-7 W/ Micro Switch Any Position Flow Switch with 0.3 GPM Switch Point Rated to 5,000 PSI and 12 GPM. The ST-7 is a newly developed version of the flow switch having a completely new operating principle. In this new development a robust and industrial micro switch is inserted instead of the usually supersensitive REED-contacts with low switching capacity. This micro switch makes it possible to realize a significantly higher electrical output though having a longer working life. The electrical and water-hydraulic components of the flow switch are completely separated.


Features:
• Can be mounted horizontal or vertical
• Micro-switch replaces reed switch for better reliability and water protection
• Easy to install
• Resistant against shock and vibration
• IP 65 rated-water and dust proof
• Can be wired normally open or normally closed


Specifications:
• Switch Point: 0.3 GPM
• Max. Pressure: 5,000 PS
• Max. Flow Rate: 12 GPM
• Max Voltage: 250 V
• Max Current: 10.1 Amps
• Max: Fluid Temperature: 176° F
• Cable Length: 47.0”
• Inlet & Outlet: 3/8” FNPT
• Weight: 0.80 lbs

  Price: $54.65
