Picture of General Trapped Pressure Unloader w/Microswitch 3,650 PSI

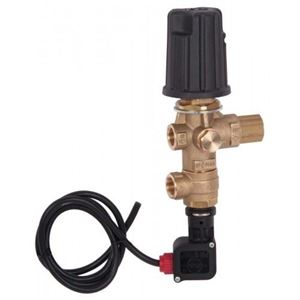

General Trapped Pressure Unloader w/Microswitch 3,650 PSI

SKU: YVB9KMS2

Brand: General Pump

$129.07

QTY:
ADD TO CART
ADD TO WISHLIST
Product Description


General YVB9KMS2 Trapped Pressure Unloader w/ Microswitch 3,650 PSI 8.0 GPM


Features:
• Extremely durable construction in stainless steel and brass
• Easy start-up due to low re-arm pressure (27% of operating pressure)
• Hexagonal discharge check valve to prevent binding
• Unloader with microswitch
• Waterproof, 5-amp pressure switch, UL Listed


Specifications:
• Rated Pressure: 3,200 PSI
• Maximum Pressure: 3,650 PSI
• Rated Temperature: 195° F
• Maximum Flow: 8.0 GPM
• Pressure Switch: 1 amp ind., 5 amps res, 250 Volts
• Inlet Port: 3/8” BSP-F
• Outlet Port: 3/8” BSP-F
• Bypass Port: 3/8” BSP-F
• Gauge Port: 1/4” F
• Weight: 1.6 lbs

 WARNING:
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov/food.
