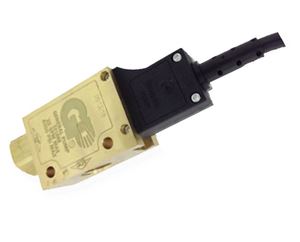

General Flow Switch Up To 25.0 GPM

Features
• Micro-switch technology eliminates reed switch
• Activation below 4.0 GPM
• Minimal pressure drop up to 25 gpm flow
• Mount in vertical position

Specifications
• Maximum Operating Pressure: 3,000 PSI@25 GPM, 4,000 PSI@10 GPM
• Minimum Flow Required for Activation: 4.0 GPM @ 50 PSI
• Maximum Operating Flow: 25.0 GPM
• Operating Temperature Range: 40 - 180 ºF
• Electrical Lead Length: 48” - 18AWG
• Max Switching Voltage: 250 VAC
• Max Switching Current: 5 AMPS
• Inlet: 1/2” NPT-F
• Outlet: 1/2” NPT-F
• Dimensions: 6.3” x 2.0” x 1.3
• Materials: Buna-N, Brass, Plastic, Nickel-plated Neodymium
• Weight: 1.85 Lb
