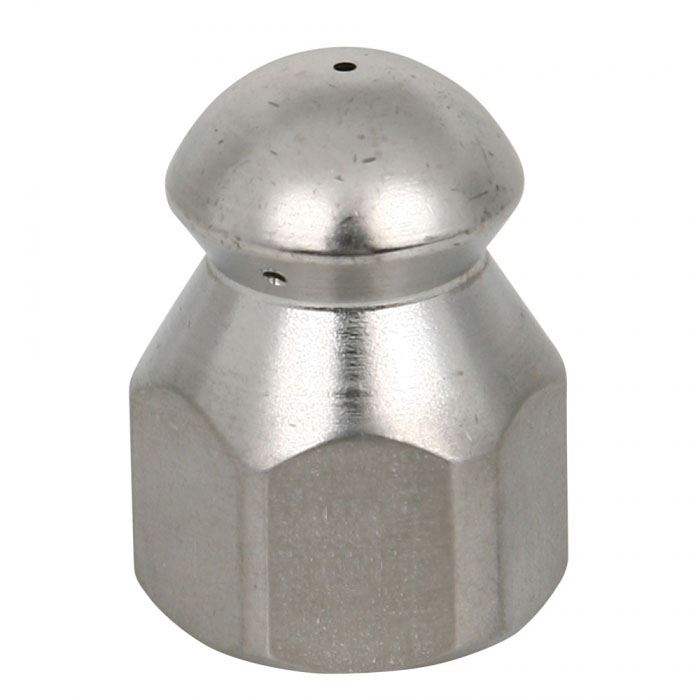

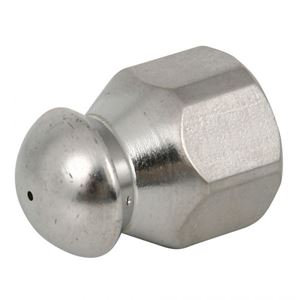

1/4” Suttner # 4.0 ST-49 Laser Sewer Nozzle 1 Front 3 Rear 4,200 PSI.

Features
• High Quality, German engineered components
• 1 Front jet for penetrating of completely clogged pipes and frozen pipelines
• 3 Rear jets (30°) for maximum thrust and simultaneously, a flushing away of the waste material
• Stainless steel
• Works best on 2" to 4" Pipes

Specifications
• Nozzle Size: # 4.0
• Material: Stainless steel
• Maximum Pressure: 4,200 PSI
• Inlet: 1/4” Female
• Outside Diameter (O.D.): .75”
• Weight: .60 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart

Suttner ST-2000 Extreme Duty Spray Gun with Low Friction Trigger 5,000 PSI. This spray gun is our MOST popular industrial production gun. It is designed for heavy-duty durability and strongest made gun in it’s class takes the abuse.

Features
• High Quality, Made In Germany
• Strong and durable “Big Hands” handle design
• New 2 piece housing design
• Stainless steel spring, needle, ball and seat
• Forged brass housing for maximum strength
• Unitized valve for easy repair
• LFT (Low Friction Trigger) this gun’s trigger system incorporates a ball between the trigger and piston rod contact area that rolls when triggered resulting in a much easier opening and holding

Specifications
• Max Pressure: 5,000 PSI
• Max Flow: 10.4 GPM
• Max Temp: 300° F.
• Inlet: 3/8" Female NPT
• Outlet: 1/4" Female NPT
• Weight: 1.64 lb

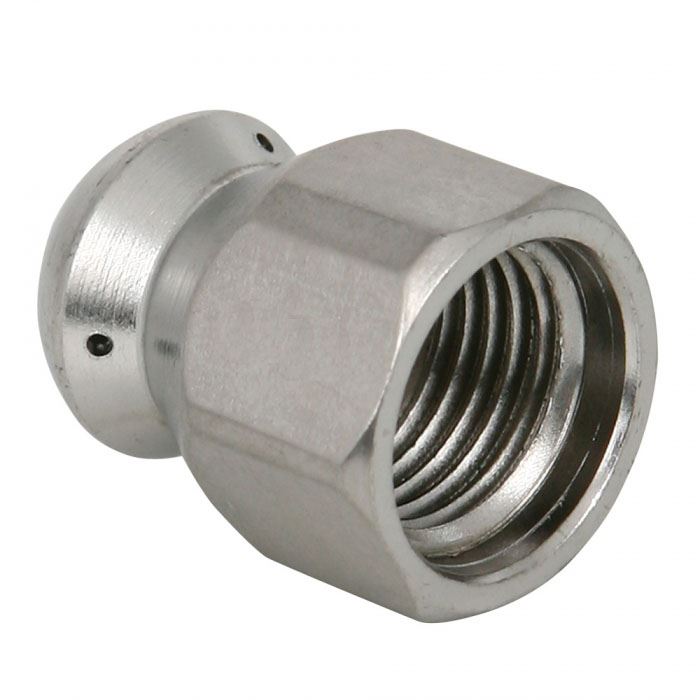

3/8” Suttner # 15.0 ST-49 Laser Sewer Nozzle 1 Front 4 Rear 4,200 PSI.

Features
• High Quality, German engineered components
• 1 Front jet for penetrating of completely clogged pipes and frozen pipelines
• 4 Rear jets (30°) for maximum thrust and simultaneously, a flushing away of the waste material
• Stainless steel
• Works best on 4" to 8" Pipes

Specifications
• Nozzle Size: # 15.0
• Material: Stainless steel
• Maximum Pressure: 4,200 PSI
• Inlet: 3/8” Female
• Outside Diameter (O.D.): .92”
• Weight: 1.30 oz

Please use Nozzle Chart to determine proper nozzle size

Nozzle Chart
